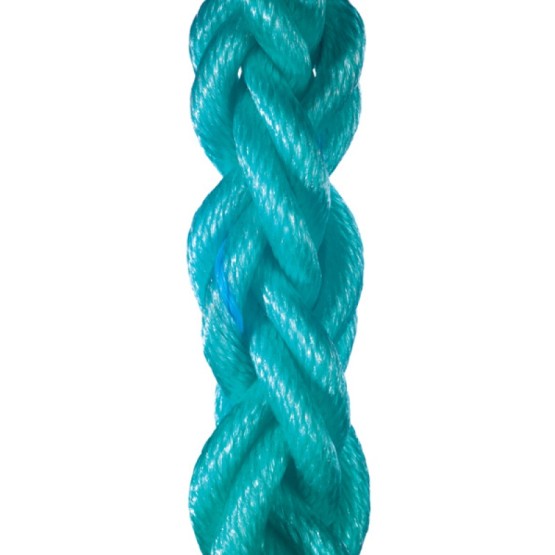

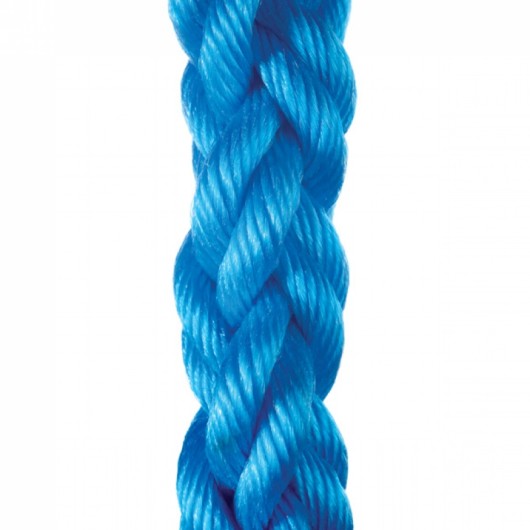

PE Mono 8 strands
Made from high tenacity polyethylene, this polyethylene monofilaments plaited rope is light weight, with good abrasion resistance and long wearing life. With fine resistance against UV lights and a soft touch, this floating line has good elongation and high creep.
-
- Good abrasion and wear resistance
- Good UV resistance
- Good elongation and high creep
- Floating, no water absorption
- Flexible, non kinking and non-rotating
-
-
- Raw Material: Polyethylene Multifilament (HT)
- Specific Gravity: 0,95 (floats)
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 10,0%
50% …. 16,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 24 1 3 330 33 22,2 6 322 13 938 62 26 1 1/32 3 1/4 360 36 24,2 6 832 15 062 67 28 1 1/8 3 1/2 390 39 26,2 7 342 16 186 72 30 1 1/4 3 3/4 460 46 30,9 8 668 19 109 85 32 1 5/16 4 525 52,5 35,3 9 789 21 581 96 36 1 1/2 4 1/2 660 66 44,3 12 237 26 977 120 40 1 5/8 5 785 78,5 52,7 14 582 32 147 143 44 1 3/4 5 1/2 950 95 63,8 17 845 39 341 175 48 2 6 1 150 115 77,3 20 700 45 636 203 52 2 1/8 6 1/2 1 350 135 90,7 24 167 53 279 237 56 2 1/4 7 1 570 157 105,5 27 023 59 574 265 60 2 1/2 7 1/2 1 800 180 121 30 592 67 442 300 64 2 5/8 8 2 050 205 137,8 34 772 76 659 341 68 2 3/4 8 1/2 2 320 232 155,9 39 157 86 326 384 72 2 7/8 9 2 590 259 174 43 542 95 992 427 80 3 1/4 10 3 210 321 215,7 53 025 116 899 520 88 3 5/8 11 3 880 388 260,7 63 631 140 279 624 96 4 12 4 610 461 309,8 74 847 165 008 734 104 4 1/4 13 5 420 542 364,2 85 555 188 612 839 112 4 5/8 14 6 300 630 423,3 98 709 217 612 968 120 5 15 7 190 719 483,1 111 761 246 387 1 096 128 5 1/4 16 8 180 818 549,7 123 896 273 139 1 215 136 5 1/2 17 9 290 929 624,2 138 478 305 287 1 358
In accordance to ISO 1969:2004. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring lines
- Towing lines
- Tug and barge tie-up lines
-
- Raw Material: Polyethylene Multifilament (HT)
- Specific Gravity: 0,95 (floats)
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 10,0%
50% …. 16,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 24 | 1 | 3 | 330 | 33 | 22,2 | 6 322 | 13 938 | 62 |
| 26 | 1 1/32 | 3 1/4 | 360 | 36 | 24,2 | 6 832 | 15 062 | 67 |
| 28 | 1 1/8 | 3 1/2 | 390 | 39 | 26,2 | 7 342 | 16 186 | 72 |
| 30 | 1 1/4 | 3 3/4 | 460 | 46 | 30,9 | 8 668 | 19 109 | 85 |
| 32 | 1 5/16 | 4 | 525 | 52,5 | 35,3 | 9 789 | 21 581 | 96 |
| 36 | 1 1/2 | 4 1/2 | 660 | 66 | 44,3 | 12 237 | 26 977 | 120 |
| 40 | 1 5/8 | 5 | 785 | 78,5 | 52,7 | 14 582 | 32 147 | 143 |
| 44 | 1 3/4 | 5 1/2 | 950 | 95 | 63,8 | 17 845 | 39 341 | 175 |
| 48 | 2 | 6 | 1 150 | 115 | 77,3 | 20 700 | 45 636 | 203 |
| 52 | 2 1/8 | 6 1/2 | 1 350 | 135 | 90,7 | 24 167 | 53 279 | 237 |
| 56 | 2 1/4 | 7 | 1 570 | 157 | 105,5 | 27 023 | 59 574 | 265 |
| 60 | 2 1/2 | 7 1/2 | 1 800 | 180 | 121 | 30 592 | 67 442 | 300 |
| 64 | 2 5/8 | 8 | 2 050 | 205 | 137,8 | 34 772 | 76 659 | 341 |
| 68 | 2 3/4 | 8 1/2 | 2 320 | 232 | 155,9 | 39 157 | 86 326 | 384 |
| 72 | 2 7/8 | 9 | 2 590 | 259 | 174 | 43 542 | 95 992 | 427 |
| 80 | 3 1/4 | 10 | 3 210 | 321 | 215,7 | 53 025 | 116 899 | 520 |
| 88 | 3 5/8 | 11 | 3 880 | 388 | 260,7 | 63 631 | 140 279 | 624 |
| 96 | 4 | 12 | 4 610 | 461 | 309,8 | 74 847 | 165 008 | 734 |
| 104 | 4 1/4 | 13 | 5 420 | 542 | 364,2 | 85 555 | 188 612 | 839 |
| 112 | 4 5/8 | 14 | 6 300 | 630 | 423,3 | 98 709 | 217 612 | 968 |
| 120 | 5 | 15 | 7 190 | 719 | 483,1 | 111 761 | 246 387 | 1 096 |
| 128 | 5 1/4 | 16 | 8 180 | 818 | 549,7 | 123 896 | 273 139 | 1 215 |
| 136 | 5 1/2 | 17 | 9 290 | 929 | 624,2 | 138 478 | 305 287 | 1 358 |
In accordance to ISO 1969:2004. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
