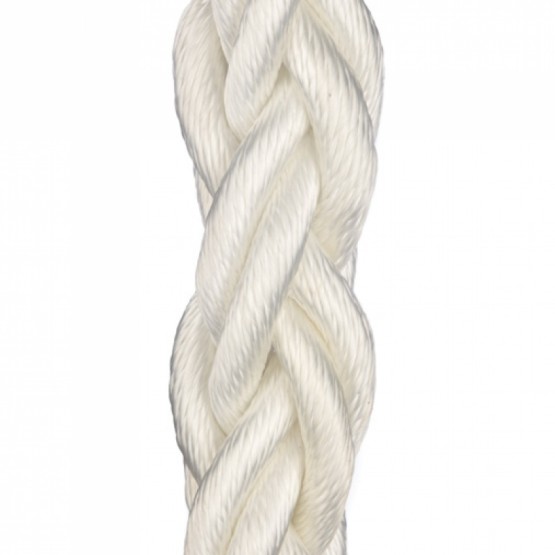

Polyamide 8 Strands
Polyamide ropes provide high breaking strength while its high elongation works as an excellent energy absorber. Its very good abrasion and heat resistance are enhanced by the 8 strands plaited construction - even in wet conditions - while the quality of fibers ensures a perfect twist and lay tension, reducing natural shrinkage in use.
-
- Excellent shock mitigation
- Good abrasion and wear resistance in wet conditions
- Good UV resistance
- Flexible, non kinking and non rotating
-
- Raw material: Polyamide
- Specific Gravity: 1,14
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 11%
50% …. 18%
Diameter Size Circ. Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 360 36 24,2 11.421 25.178 112 26 1 1/32 3 1/4 420 42 28,2 13.358 29.450 131 28 1 1/8 3 1/2 490 49 32,9 15.296 33.721 150 30 1 1/4 3 3/4 560 56 37,6 17.335 38.217 170 32 1 5/16 4 640 64 43 20.394 44.961 200 36 1 1/2 4 1/2 810 81 54,4 25.493 56.201 250 40 1 5/8 5 1.000 100 67,2 30.592 67.442 300 44 1 3/4 5 1/2 1.210 121 81,3 36.200 79.806 355 48 2 6 1.440 144 96,8 43.338 95.543 425 52 2 1/8 6 1/2 1.700 170 114,2 50.986 112.403 500 56 2 1/4 7 1.770 177 118,9 57.104 125.891 560 60 2 1/2 7 1/2 2.260 226 151,9 64.242 141.628 630 64 2 5/8 8 2.570 257 172,7 72.400 159.612 710 68 2 3/4 8 1/2 2.865 286,5 192,5 81.34 179.395 798 72 2 7/8 9 3.250 325 218,4 90.449 199.403 887 80 3 1/4 10 4.010 401 269,5 114.209 251.783 1.120 88 3 5/8 11 4.860 486 326,6 134.603 296.744 1.320 96 4 12 5.780 578 388,4 163.155 359.690 1.600 104 4 1/4 13 6.780 678 455,6 183.550 404.651 1.800 112 4 5/8 14 7.870 787 528,8 216.181 476.589 2.120 120 5 15 9.030 903 606,8 240.654 530.542 2.360 128 5 1/4 16 10.100 1.010 678,7 270.226 595.736 2.650 136 5 1/2 17 11.600 1.160 779,5 305.916 674.418 3.000 More diameters available by demand.
In accordance to ISO 1140:2021.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations..
- Mooring lines
- Towing lines
- Shock lines
- Raw material: Polyamide
- Specific Gravity: 1,14
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 11%
50% …. 18%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 360 | 36 | 24,2 | 11.421 | 25.178 | 112 |
| 26 | 1 1/32 | 3 1/4 | 420 | 42 | 28,2 | 13.358 | 29.450 | 131 |
| 28 | 1 1/8 | 3 1/2 | 490 | 49 | 32,9 | 15.296 | 33.721 | 150 |
| 30 | 1 1/4 | 3 3/4 | 560 | 56 | 37,6 | 17.335 | 38.217 | 170 |
| 32 | 1 5/16 | 4 | 640 | 64 | 43 | 20.394 | 44.961 | 200 |
| 36 | 1 1/2 | 4 1/2 | 810 | 81 | 54,4 | 25.493 | 56.201 | 250 |
| 40 | 1 5/8 | 5 | 1.000 | 100 | 67,2 | 30.592 | 67.442 | 300 |
| 44 | 1 3/4 | 5 1/2 | 1.210 | 121 | 81,3 | 36.200 | 79.806 | 355 |
| 48 | 2 | 6 | 1.440 | 144 | 96,8 | 43.338 | 95.543 | 425 |
| 52 | 2 1/8 | 6 1/2 | 1.700 | 170 | 114,2 | 50.986 | 112.403 | 500 |
| 56 | 2 1/4 | 7 | 1.770 | 177 | 118,9 | 57.104 | 125.891 | 560 |
| 60 | 2 1/2 | 7 1/2 | 2.260 | 226 | 151,9 | 64.242 | 141.628 | 630 |
| 64 | 2 5/8 | 8 | 2.570 | 257 | 172,7 | 72.400 | 159.612 | 710 |
| 68 | 2 3/4 | 8 1/2 | 2.865 | 286,5 | 192,5 | 81.34 | 179.395 | 798 |
| 72 | 2 7/8 | 9 | 3.250 | 325 | 218,4 | 90.449 | 199.403 | 887 |
| 80 | 3 1/4 | 10 | 4.010 | 401 | 269,5 | 114.209 | 251.783 | 1.120 |
| 88 | 3 5/8 | 11 | 4.860 | 486 | 326,6 | 134.603 | 296.744 | 1.320 |
| 96 | 4 | 12 | 5.780 | 578 | 388,4 | 163.155 | 359.690 | 1.600 |
| 104 | 4 1/4 | 13 | 6.780 | 678 | 455,6 | 183.550 | 404.651 | 1.800 |
| 112 | 4 5/8 | 14 | 7.870 | 787 | 528,8 | 216.181 | 476.589 | 2.120 |
| 120 | 5 | 15 | 9.030 | 903 | 606,8 | 240.654 | 530.542 | 2.360 |
| 128 | 5 1/4 | 16 | 10.100 | 1.010 | 678,7 | 270.226 | 595.736 | 2.650 |
| 136 | 5 1/2 | 17 | 11.600 | 1.160 | 779,5 | 305.916 | 674.418 | 3.000 |
More diameters available by demand.
In accordance to ISO 1140:2021.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations..
