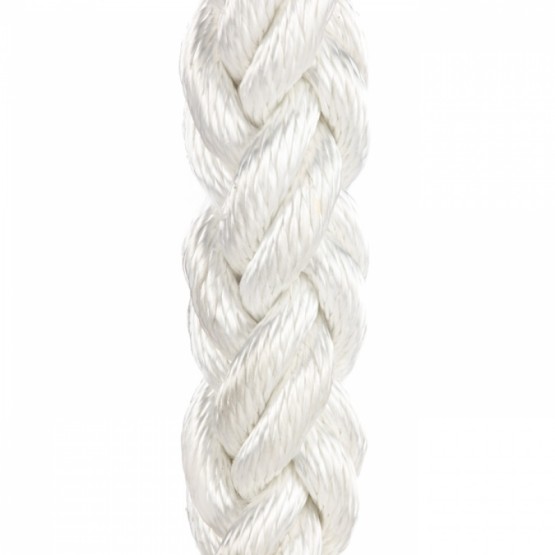

Polyester 8 Strands
The smoothness and high tenacity characteristics of polyester are empowered by a construction enhancing its excellent abrasion and high heat resistance, creating a durable high tenacity rope with low elongation and excellent fatigue life. Polyester ropes do not absorb water, so they neither harden or lose strength when wet. Also available in 12 strands, 4 strands and 3 strands.
-
- High heat and abrasion resistance
- High strength and low working elongation
- Excellent UV resistance
- Flexible, non kinking and non-rotating
-
- Raw material: Polyester (HT)
- Specific Gravity: 1,38
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 5%
50% …. 8%
Diameter Size Circ. Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 437 43,7 29,4 9.177 20.233 90,0 28 1 1/8 3 1/2 595 59,5 40,0 12.033 26.527 118 30 1 1/4 3 3/4 683 68,3 45,9 13.460 29.674 132 32 1 5/16 4 777 77,7 52,2 15.296 33.721 150 36 1 1/2 4 1/2 984 98,4 66,1 19.375 42.713 190 40 1 5/8 5 1.210 121 81,3 24.065 53.054 236 44 1 3/4 5 1/2 1.470 147 98,8 28.552 62.946 280 48 2 6 1.750 175 117,6 34.161 75.310 335 52 2 1/8 6 1/2 2.050 205 137,8 40.789 89.922 400 56 2 1/4 7 2.380 238 552,3 45.887 101.163 450 60 2 1/2 7 1/2 2.730 273 183,4 50.986 112.403 500 64 2 5/8 8 3.110 311 209,0 57.104 125.891 560 72 2 7/8 9 3.930 393 264,1 72.400 159.612 710 80 3 1/4 10 4.860 486 326,6 91.775 202.325 900 88 3 5/8 11 5.880 588 395,1 108.090 238.294 1.060 96 4 12 6.990 699 469,7 127.465 281.007 1.250 104 4 1/4 13 8.210 821 551,7 152.958 337.209 1.500 112 4 5/8 14 9.520 952 639,7 173.352 382.170 1.700 120 5 15 10.900 1.090 732,4 193.747 427.131 1.900 128 5 1/4 16 12.400 1.240 833,2 217.200 478.837 2.130 136 5 1/2 17 14.000 1400 940,7 243.713 537.286 2.390 More diameters available by demand.
In accordance to ISO 1141:2021.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring lines

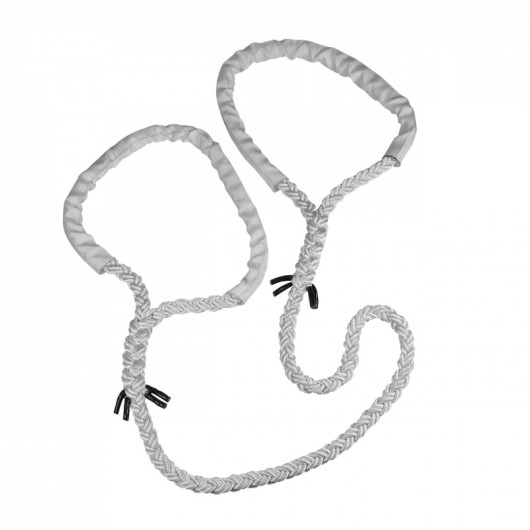

- Mooring pendants
- Tug and towing lines
- Raw material: Polyester (HT)
- Specific Gravity: 1,38
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 5%
50% …. 8%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 437 | 43,7 | 29,4 | 9.177 | 20.233 | 90,0 |
| 28 | 1 1/8 | 3 1/2 | 595 | 59,5 | 40,0 | 12.033 | 26.527 | 118 |
| 30 | 1 1/4 | 3 3/4 | 683 | 68,3 | 45,9 | 13.460 | 29.674 | 132 |
| 32 | 1 5/16 | 4 | 777 | 77,7 | 52,2 | 15.296 | 33.721 | 150 |
| 36 | 1 1/2 | 4 1/2 | 984 | 98,4 | 66,1 | 19.375 | 42.713 | 190 |
| 40 | 1 5/8 | 5 | 1.210 | 121 | 81,3 | 24.065 | 53.054 | 236 |
| 44 | 1 3/4 | 5 1/2 | 1.470 | 147 | 98,8 | 28.552 | 62.946 | 280 |
| 48 | 2 | 6 | 1.750 | 175 | 117,6 | 34.161 | 75.310 | 335 |
| 52 | 2 1/8 | 6 1/2 | 2.050 | 205 | 137,8 | 40.789 | 89.922 | 400 |
| 56 | 2 1/4 | 7 | 2.380 | 238 | 552,3 | 45.887 | 101.163 | 450 |
| 60 | 2 1/2 | 7 1/2 | 2.730 | 273 | 183,4 | 50.986 | 112.403 | 500 |
| 64 | 2 5/8 | 8 | 3.110 | 311 | 209,0 | 57.104 | 125.891 | 560 |
| 72 | 2 7/8 | 9 | 3.930 | 393 | 264,1 | 72.400 | 159.612 | 710 |
| 80 | 3 1/4 | 10 | 4.860 | 486 | 326,6 | 91.775 | 202.325 | 900 |
| 88 | 3 5/8 | 11 | 5.880 | 588 | 395,1 | 108.090 | 238.294 | 1.060 |
| 96 | 4 | 12 | 6.990 | 699 | 469,7 | 127.465 | 281.007 | 1.250 |
| 104 | 4 1/4 | 13 | 8.210 | 821 | 551,7 | 152.958 | 337.209 | 1.500 |
| 112 | 4 5/8 | 14 | 9.520 | 952 | 639,7 | 173.352 | 382.170 | 1.700 |
| 120 | 5 | 15 | 10.900 | 1.090 | 732,4 | 193.747 | 427.131 | 1.900 |
| 128 | 5 1/4 | 16 | 12.400 | 1.240 | 833,2 | 217.200 | 478.837 | 2.130 |
| 136 | 5 1/2 | 17 | 14.000 | 1400 | 940,7 | 243.713 | 537.286 | 2.390 |
More diameters available by demand.
In accordance to ISO 1141:2021.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
