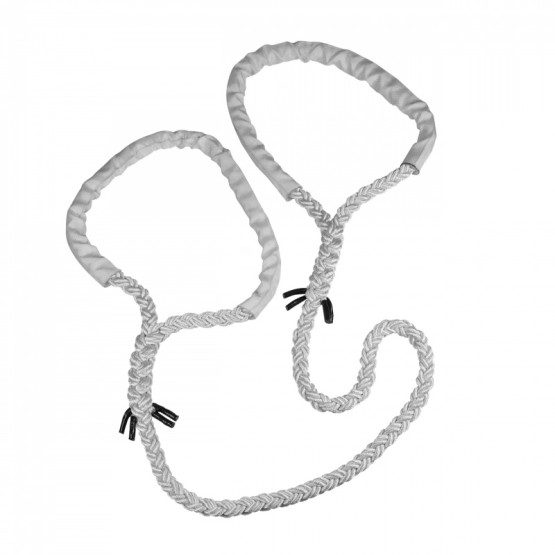

Mooring Tails Polyamide
When additional elasticity to mooring ropes is required we recommend the use of mooring tails. Tails can provide more elasticity working as shock absorbers which allows the ship to respond more favourably when subjected to hard conditions such has strong tides or strong winds.
-
- Excellent shock absorbers
- Excellent elongation
Flexible, non kinking and non-rotating
-
-
- Raw material: Polyamide
- Specific Gravity: 1,14 (sinks)
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 11,0%
50% …. 18,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches g/m Kg/Un lbs/Un kgf lbf kN 32 1 5/16 4 623 12 26,46 26 003 57 326 256 36 1 1/2 4 1/2 789 15 33,07 32 529 71 713 319 40 1 5/8 5 969 18 39,68 39 769 87 674 390 44 1 3/4 5 1/2 1178 22 48,50 47 723 105 209 468 48 2 6 1406 26 57,32 56 492 124 543 554 52 2 1/8 6 1/2 1644 30 66,14 65 874 145 225 646 56 2 1/4 7 1910 35 77,16 75 969 167 480 745 60 2 1/2 7 1/2 2195 40 88,18 86 778 191 310 851 64 2 5/8 8 2497 45 99,21 97 893 215 814 960 68 2 3/4 8 1/2 2812 51 112,43 110 436 243 465 1 083 72 2 7/8 9 3154 57 125,66 123 386 272 015 1 210 76 3 1/8 9 1/2 3530 64 141,09 136 642 301 240 1 340 80 3 1/4 10 3905 70 154,32 149 899 330 465 1 470 88 3 5/8 11 4270 77 169,75 181 102 399 255 1 776 96 4 12 5610 236 520,28 214 141 472 093 2 100 In accordance to ISO 1140:2004. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring tails
-
- Raw material: Polyamide
- Specific Gravity: 1,14 (sinks)
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 11,0%
50% …. 18,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | g/m | Kg/Un | lbs/Un | kgf | lbf | kN |
| 32 | 1 5/16 | 4 | 623 | 12 | 26,46 | 26 003 | 57 326 | 256 |
| 36 | 1 1/2 | 4 1/2 | 789 | 15 | 33,07 | 32 529 | 71 713 | 319 |
| 40 | 1 5/8 | 5 | 969 | 18 | 39,68 | 39 769 | 87 674 | 390 |
| 44 | 1 3/4 | 5 1/2 | 1178 | 22 | 48,50 | 47 723 | 105 209 | 468 |
| 48 | 2 | 6 | 1406 | 26 | 57,32 | 56 492 | 124 543 | 554 |
| 52 | 2 1/8 | 6 1/2 | 1644 | 30 | 66,14 | 65 874 | 145 225 | 646 |
| 56 | 2 1/4 | 7 | 1910 | 35 | 77,16 | 75 969 | 167 480 | 745 |
| 60 | 2 1/2 | 7 1/2 | 2195 | 40 | 88,18 | 86 778 | 191 310 | 851 |
| 64 | 2 5/8 | 8 | 2497 | 45 | 99,21 | 97 893 | 215 814 | 960 |
| 68 | 2 3/4 | 8 1/2 | 2812 | 51 | 112,43 | 110 436 | 243 465 | 1 083 |
| 72 | 2 7/8 | 9 | 3154 | 57 | 125,66 | 123 386 | 272 015 | 1 210 |
| 76 | 3 1/8 | 9 1/2 | 3530 | 64 | 141,09 | 136 642 | 301 240 | 1 340 |
| 80 | 3 1/4 | 10 | 3905 | 70 | 154,32 | 149 899 | 330 465 | 1 470 |
| 88 | 3 5/8 | 11 | 4270 | 77 | 169,75 | 181 102 | 399 255 | 1 776 |
| 96 | 4 | 12 | 5610 | 236 | 520,28 | 214 141 | 472 093 | 2 100 |
In accordance to ISO 1140:2004. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
