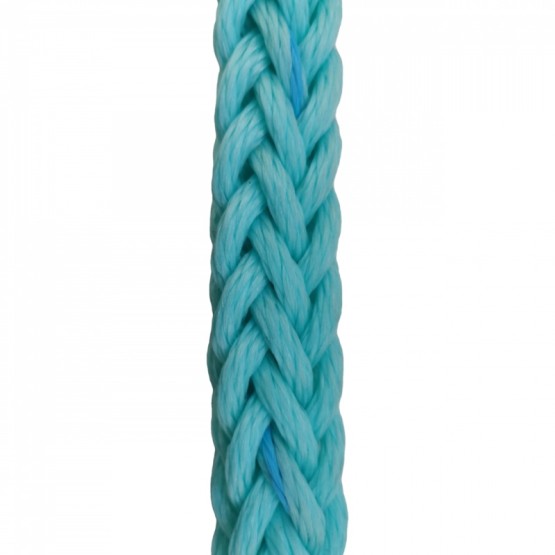

PE MONO 12 Strands
Made from high tenacity polyethylene, this polyethylene monofilaments plaited rope is light weighted, with good abrasion resistance and long wearing life. With fine resistance against UV lights and a soft touch, this floating line has good elongation and high creep.
-
- Good abrasion and wear resistance
- Good UV resistance
- Good elongation and high creep
- Floating, no water absorption
- Flexible, non kinking and non-rotating
-
-
- Raw Material: Polyethylene Monofilament (HT)
- Specific Gravity: 0,95 (floats)
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 10,0%
50% …. 16,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 24 1 3 330 33,0 22,2 6 322 13 938 62 26 1 1/32 3 1/4 360 36,0 24,2 6 832 15 062 67 28 1 1/8 3 1/2 390 39,0 26,2 7 342 16 186 72 30 1 1/4 3 3/4 460 46,0 30,9 8 668 19 109 85 32 1 5/16 4 525 52,5 35,3 9 789 21 581 96 36 1 1/2 4 1/2 660 66,0 44,3 12 237 26 977 120 40 1 5/8 5 785 78,5 52,7 14 582 32 147 143 44 1 3/4 5 1/2 950 95,0 63,8 17 845 39 341 175 48 2 6 1 150 115,0 77,3 20 700 45 636 203 52 2 1/8 6 1/2 1 350 135,0 90,7 24 167 53 279 237 56 2 1/4 7 1 570 157,0 105,5 27 023 59 574 265 60 2 1/2 7 1/2 1 800 180,0 121 30 592 67 442 300 64 2 5/8 8 2 050 205,0 137,8 34 772 76 659 341 68 2 3/4 8 1/2 2 320 232,0 155,9 39 157 86 326 384 72 2 7/8 9 2 590 259,0 174 43 542 95 992 427 80 3 1/4 10 3 210 321,0 215,7 530 25 116 899 520 88 3 5/8 11 3 880 388,0 260,7 636 31 140 279 624 96 4 12 4 610 461,0 309,8 74 847 165 008 734 104 4 1/4 13 5 420 542,0 364,2 85 555 188 612 839 112 4 5/8 14 6 300 630,0 423,3 98 709 217 612 968 120 5 15 7 190 719,0 483,1 111 761 246 387 1 096 128 5 1/4 16 8 180 818,0 549,7 123 896 273 139 1 215 136 5 1/2 17 9 290 929,0 624,2 138 478 305 287 1 358
In accordance to ISO 1969:2004. More diameters available by demand.
Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations.
- Mooring lines
- Towing lines
- Tug and barge tie-up lines
-
- Raw Material: Polyethylene Monofilament (HT)
- Specific Gravity: 0,95 (floats)
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 10,0%
50% …. 16,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 24 | 1 | 3 | 330 | 33,0 | 22,2 | 6 322 | 13 938 | 62 |
| 26 | 1 1/32 | 3 1/4 | 360 | 36,0 | 24,2 | 6 832 | 15 062 | 67 |
| 28 | 1 1/8 | 3 1/2 | 390 | 39,0 | 26,2 | 7 342 | 16 186 | 72 |
| 30 | 1 1/4 | 3 3/4 | 460 | 46,0 | 30,9 | 8 668 | 19 109 | 85 |
| 32 | 1 5/16 | 4 | 525 | 52,5 | 35,3 | 9 789 | 21 581 | 96 |
| 36 | 1 1/2 | 4 1/2 | 660 | 66,0 | 44,3 | 12 237 | 26 977 | 120 |
| 40 | 1 5/8 | 5 | 785 | 78,5 | 52,7 | 14 582 | 32 147 | 143 |
| 44 | 1 3/4 | 5 1/2 | 950 | 95,0 | 63,8 | 17 845 | 39 341 | 175 |
| 48 | 2 | 6 | 1 150 | 115,0 | 77,3 | 20 700 | 45 636 | 203 |
| 52 | 2 1/8 | 6 1/2 | 1 350 | 135,0 | 90,7 | 24 167 | 53 279 | 237 |
| 56 | 2 1/4 | 7 | 1 570 | 157,0 | 105,5 | 27 023 | 59 574 | 265 |
| 60 | 2 1/2 | 7 1/2 | 1 800 | 180,0 | 121 | 30 592 | 67 442 | 300 |
| 64 | 2 5/8 | 8 | 2 050 | 205,0 | 137,8 | 34 772 | 76 659 | 341 |
| 68 | 2 3/4 | 8 1/2 | 2 320 | 232,0 | 155,9 | 39 157 | 86 326 | 384 |
| 72 | 2 7/8 | 9 | 2 590 | 259,0 | 174 | 43 542 | 95 992 | 427 |
| 80 | 3 1/4 | 10 | 3 210 | 321,0 | 215,7 | 530 25 | 116 899 | 520 |
| 88 | 3 5/8 | 11 | 3 880 | 388,0 | 260,7 | 636 31 | 140 279 | 624 |
| 96 | 4 | 12 | 4 610 | 461,0 | 309,8 | 74 847 | 165 008 | 734 |
| 104 | 4 1/4 | 13 | 5 420 | 542,0 | 364,2 | 85 555 | 188 612 | 839 |
| 112 | 4 5/8 | 14 | 6 300 | 630,0 | 423,3 | 98 709 | 217 612 | 968 |
| 120 | 5 | 15 | 7 190 | 719,0 | 483,1 | 111 761 | 246 387 | 1 096 |
| 128 | 5 1/4 | 16 | 8 180 | 818,0 | 549,7 | 123 896 | 273 139 | 1 215 |
| 136 | 5 1/2 | 17 | 9 290 | 929,0 | 624,2 | 138 478 | 305 287 | 1 358 |
In accordance to ISO 1969:2004. More diameters available by demand.
Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations.
