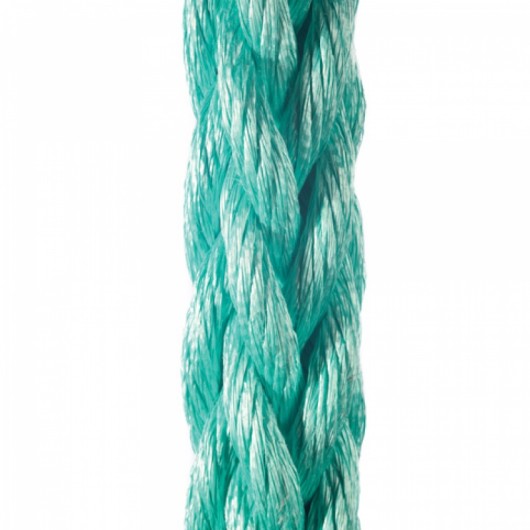

Movspun 12 strands
The appearance and construction of old ropes made from natural fibres, with the strength, abrasion and wear resistance of synthetic materials. This polypropylene floating line has a smooth and fine touch and its hairy surface enhances wear resistance to this light weight rope, very easy to handle and easy to splice.
-
- Smoothness and exceptional touch
- Good abrasion and wear resistance
- Floating, no water absorption
- Good UV resistance
- Flexible, non kinking and non-rotating
-
-
- Raw material: Spun Polypropylene
- Specific Gravity: 0,91 (floats)
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 4,0%
50% …. 7,5%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 24 1 3 260 26 17,5 8 035 17 715 78,8 26 1 1/32 3 1/4 306 30,6 20,6 9 330 20 570 91,5 28 1 1/8 3 1/2 354 35,4 23,8 10 707 23 605 105 30 1 1/4 3 3/4 407 40,7 27,3 12 135 26 752 119 32 1 5/16 4 463 46,3 31,1 13 664 30 124 134 36 1 1/2 4 1/2 586 58,6 39,4 17 029 37 543 167 40 1 5/8 5 723 72,3 48,6 20 802 45 860 204 44 1 3/4 5 1/2 875 87,5 58,8 24 779 54 628 243 48 2 6 1 040 104 69,9 29 164 64 295 286 52 2 1/8 6 1/2 1 220 122 82 33 855 74 636 332 56 2 1/4 7 1 420 142 95,4 38 851 85 651 381 60 2 1/2 7 1/2 1 630 163 109,5 44 154 97 341 433 64 2 5/8 8 1 850 185 124,3 49 762 109 705 488 68 2 3/4 8 1/2 2 095 209,5 140,8 55 881 123 194 548 In accordance to ISO 1346:2021. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring lines
- Towing lines
-
- Raw material: Spun Polypropylene
- Specific Gravity: 0,91 (floats)
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 4,0%
50% …. 7,5%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 24 | 1 | 3 | 260 | 26 | 17,5 | 8 035 | 17 715 | 78,8 |
| 26 | 1 1/32 | 3 1/4 | 306 | 30,6 | 20,6 | 9 330 | 20 570 | 91,5 |
| 28 | 1 1/8 | 3 1/2 | 354 | 35,4 | 23,8 | 10 707 | 23 605 | 105 |
| 30 | 1 1/4 | 3 3/4 | 407 | 40,7 | 27,3 | 12 135 | 26 752 | 119 |
| 32 | 1 5/16 | 4 | 463 | 46,3 | 31,1 | 13 664 | 30 124 | 134 |
| 36 | 1 1/2 | 4 1/2 | 586 | 58,6 | 39,4 | 17 029 | 37 543 | 167 |
| 40 | 1 5/8 | 5 | 723 | 72,3 | 48,6 | 20 802 | 45 860 | 204 |
| 44 | 1 3/4 | 5 1/2 | 875 | 87,5 | 58,8 | 24 779 | 54 628 | 243 |
| 48 | 2 | 6 | 1 040 | 104 | 69,9 | 29 164 | 64 295 | 286 |
| 52 | 2 1/8 | 6 1/2 | 1 220 | 122 | 82 | 33 855 | 74 636 | 332 |
| 56 | 2 1/4 | 7 | 1 420 | 142 | 95,4 | 38 851 | 85 651 | 381 |
| 60 | 2 1/2 | 7 1/2 | 1 630 | 163 | 109,5 | 44 154 | 97 341 | 433 |
| 64 | 2 5/8 | 8 | 1 850 | 185 | 124,3 | 49 762 | 109 705 | 488 |
| 68 | 2 3/4 | 8 1/2 | 2 095 | 209,5 | 140,8 | 55 881 | 123 194 | 548 |
In accordance to ISO 1346:2021. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
