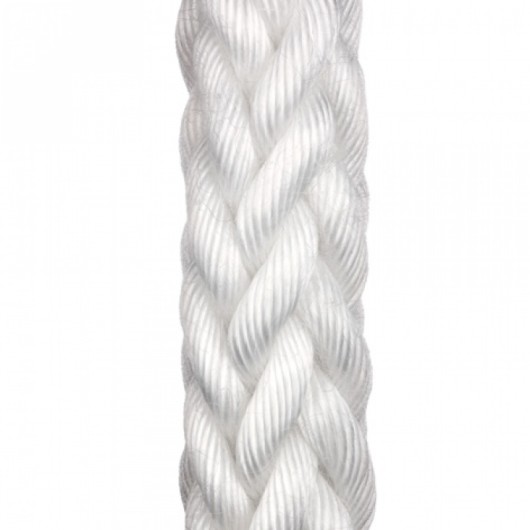

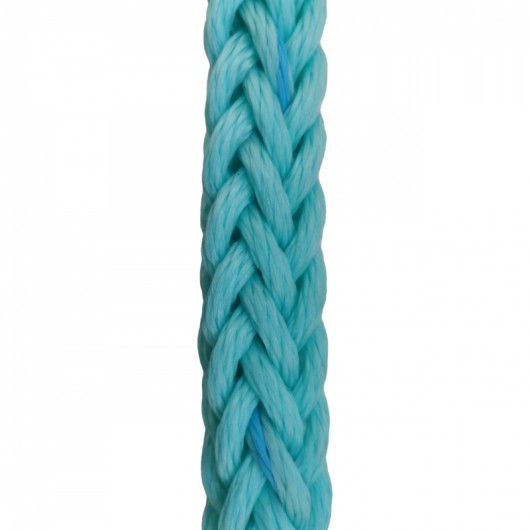

Movline Plus 12 Strands
Movline Plus is an extremely strong and high tenacity bi-polymer composite fiber extruded on a custom-built extrusion process. Its gripping capability is enhanced by the outer fuzzy surface developed in use, also protecting the inner fibers against abrasion increasing the rope lifetime. The rope is especially suitable for vessel mooring and also aquaculture cages mooring. Movline Plus are floating ropes and do not absorb water, making them very easy to handle and work with. Available in 12 strands, 8 strands, 4 strands and 3 strands.
-
- High abrasion resistance
- High strength floating line
- No water absorption
- Good UV resistance
- Flexible, non kinking and non-rotating
-
- Raw material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 5,5%
Diameter Size Circ. Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 261 26,1 17,5 10.605 23.380 104 26 1 1/32 3 1/4 306 30,6 20,6 12.339 27.202 121 28 1 1/8 3 1/2 355 35,5 23,9 14.174 31.248 139 30 1 1/4 3 3/4 408 40,8 27,4 16.112 35.519 158 32 1 5/16 4 464 46,4 31,2 18.253 40.240 179 34 1 11/32 4 1/4 526 52,6 35,3 20.548 45.299 201,5 36 1 1/2 4 1/2 587 58,7 39,4 22.842 50.357 224 40 1 5/8 5 725 72,5 48,7 27.940 61.597 274 44 1 3/4 5 1/2 877 87,7 58,9 33.345 73.512 327 48 2 6 1.040 104 69,9 39.259 86.550 385 52 2 1/8 6 1/2 1.220 122 82 45.683 100.713 448 56 2 1/4 7 1.420 142 95,4 52.414 115.550 514 60 2 1/2 7 1/2 1.630 163 109,5 59.450 131.062 583 64 2 5/8 8 1.860 186 125 66.996 147.698 657 68 2 3/4 8 1/2 2.100 210 141,1 75.153 165.682 737 72 2 7/8 9 2.350 235 157,9 83.617 184.341 820 More diameters available by demand.
In accordance to ISO 10572:2009.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring lines
- Anchor lines
- Tug and Towing lines
- Raw material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 5,5%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 261 | 26,1 | 17,5 | 10.605 | 23.380 | 104 |
| 26 | 1 1/32 | 3 1/4 | 306 | 30,6 | 20,6 | 12.339 | 27.202 | 121 |
| 28 | 1 1/8 | 3 1/2 | 355 | 35,5 | 23,9 | 14.174 | 31.248 | 139 |
| 30 | 1 1/4 | 3 3/4 | 408 | 40,8 | 27,4 | 16.112 | 35.519 | 158 |
| 32 | 1 5/16 | 4 | 464 | 46,4 | 31,2 | 18.253 | 40.240 | 179 |
| 34 | 1 11/32 | 4 1/4 | 526 | 52,6 | 35,3 | 20.548 | 45.299 | 201,5 |
| 36 | 1 1/2 | 4 1/2 | 587 | 58,7 | 39,4 | 22.842 | 50.357 | 224 |
| 40 | 1 5/8 | 5 | 725 | 72,5 | 48,7 | 27.940 | 61.597 | 274 |
| 44 | 1 3/4 | 5 1/2 | 877 | 87,7 | 58,9 | 33.345 | 73.512 | 327 |
| 48 | 2 | 6 | 1.040 | 104 | 69,9 | 39.259 | 86.550 | 385 |
| 52 | 2 1/8 | 6 1/2 | 1.220 | 122 | 82 | 45.683 | 100.713 | 448 |
| 56 | 2 1/4 | 7 | 1.420 | 142 | 95,4 | 52.414 | 115.550 | 514 |
| 60 | 2 1/2 | 7 1/2 | 1.630 | 163 | 109,5 | 59.450 | 131.062 | 583 |
| 64 | 2 5/8 | 8 | 1.860 | 186 | 125 | 66.996 | 147.698 | 657 |
| 68 | 2 3/4 | 8 1/2 | 2.100 | 210 | 141,1 | 75.153 | 165.682 | 737 |
| 72 | 2 7/8 | 9 | 2.350 | 235 | 157,9 | 83.617 | 184.341 | 820 |
More diameters available by demand.
In accordance to ISO 10572:2009.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
