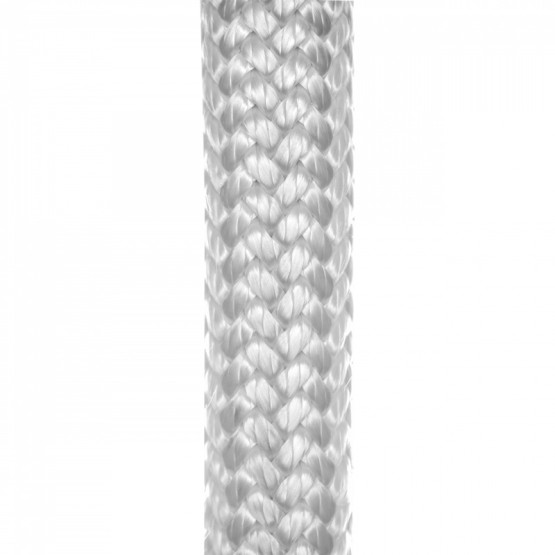

Polyester DB
The smoothness and high tenacity characteristics of polyester are empowered by a construction enhancing its excellent abrasion and high heat resistance, creating a durable high tenacity rope with low elongation and excellent fatigue life. Polyester ropes do not absorb water, so they neither harden or lose strength when wet. The braided core and cover are oriented to maximize strength, abrasion and heat resistance even in wet conditions. The construction of this ropes makes them ideal for towing, mooring, and other applications that requires absorption.
-
- Excellent energy absorption
- Good abrasion and wear resistance even in wet conditions
- Good UV resistance
- High flexibility, non kinking and non-rotating
-
-
- Raw material: Polyester (HT)
- Specific Gravity: 1,38 (sinks)
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 2,50%
50% …. 7,50%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 18 3/4 2 1/4 258 25,8 17,3 5 550 12 236 54,4 20 13/16 2 1/2 319 31,9 21,4 6 800 14 991 66,7 22 7/8 2 3/4 386 38,6 25,9 8 160 17 990 80 24 1 3 459 45,9 30,8 9 680 21 341 94,9 26 1 1/32 3 1/4 539 53,9 36,2 11 300 24 912 110,8 28 1 1/8 3 1/2 625 62,5 42 13 000 28 660 127,5 30 1 1/4 3 3/4 717 71,7 48,2 14 900 32 849 146,1 32 1 5/16 4 816 81,6 54,8 16 800 37 037 164,8 36 1 1/2 4 1/2 1 030 103 69,2 21 100 46 517 206,9 40 1 5/8 5 1 280 128 86 25 900 57 099 254 44 1 3/4 5 1/2 1 540 154 103,5 31 100 68 563 305 48 2 6 1 840 184 123,6 36 800 81 129 360,9 52 2 1/8 6 1/2 2 160 216 145,1 43 000 94 798 421,7 56 2 1/4 7 2 500 250 168 49 400 108 907 484,4 60 2 1/2 7 1/2 2 870 287 192,9 56 600 124 780 555,1 64 2 5/8 8 3 260 326 219,1 64 000 141 094 627,6 72 2 7/8 9 4 130 413 277,5 80 000 176 368 784,5 80 3 1/4 10 5 100 510 342,7 98 400 216 933 965 88 3 5/8 11 6 170 617 444,6 118 000 260 143 1 157,2 96 4 12 7 350 735 493,9 140 000 308 644 1 372,9 104 4 1/4 13 8 620 862 579,2 163 000 359 350 1 598,5 112 4 5/8 14 10 000 1 000 672 188 000 414 463 1 843,7 120 5 15 11 150 1 115 773 215 000 473 989 2 108,4
In accordance to ISO 10547:2009. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring lines
- Tug and Towing lines
- Shock lines
-
- Raw material: Polyester (HT)
- Specific Gravity: 1,38 (sinks)
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 2,50%
50% …. 7,50%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 18 | 3/4 | 2 1/4 | 258 | 25,8 | 17,3 | 5 550 | 12 236 | 54,4 |
| 20 | 13/16 | 2 1/2 | 319 | 31,9 | 21,4 | 6 800 | 14 991 | 66,7 |
| 22 | 7/8 | 2 3/4 | 386 | 38,6 | 25,9 | 8 160 | 17 990 | 80 |
| 24 | 1 | 3 | 459 | 45,9 | 30,8 | 9 680 | 21 341 | 94,9 |
| 26 | 1 1/32 | 3 1/4 | 539 | 53,9 | 36,2 | 11 300 | 24 912 | 110,8 |
| 28 | 1 1/8 | 3 1/2 | 625 | 62,5 | 42 | 13 000 | 28 660 | 127,5 |
| 30 | 1 1/4 | 3 3/4 | 717 | 71,7 | 48,2 | 14 900 | 32 849 | 146,1 |
| 32 | 1 5/16 | 4 | 816 | 81,6 | 54,8 | 16 800 | 37 037 | 164,8 |
| 36 | 1 1/2 | 4 1/2 | 1 030 | 103 | 69,2 | 21 100 | 46 517 | 206,9 |
| 40 | 1 5/8 | 5 | 1 280 | 128 | 86 | 25 900 | 57 099 | 254 |
| 44 | 1 3/4 | 5 1/2 | 1 540 | 154 | 103,5 | 31 100 | 68 563 | 305 |
| 48 | 2 | 6 | 1 840 | 184 | 123,6 | 36 800 | 81 129 | 360,9 |
| 52 | 2 1/8 | 6 1/2 | 2 160 | 216 | 145,1 | 43 000 | 94 798 | 421,7 |
| 56 | 2 1/4 | 7 | 2 500 | 250 | 168 | 49 400 | 108 907 | 484,4 |
| 60 | 2 1/2 | 7 1/2 | 2 870 | 287 | 192,9 | 56 600 | 124 780 | 555,1 |
| 64 | 2 5/8 | 8 | 3 260 | 326 | 219,1 | 64 000 | 141 094 | 627,6 |
| 72 | 2 7/8 | 9 | 4 130 | 413 | 277,5 | 80 000 | 176 368 | 784,5 |
| 80 | 3 1/4 | 10 | 5 100 | 510 | 342,7 | 98 400 | 216 933 | 965 |
| 88 | 3 5/8 | 11 | 6 170 | 617 | 444,6 | 118 000 | 260 143 | 1 157,2 |
| 96 | 4 | 12 | 7 350 | 735 | 493,9 | 140 000 | 308 644 | 1 372,9 |
| 104 | 4 1/4 | 13 | 8 620 | 862 | 579,2 | 163 000 | 359 350 | 1 598,5 |
| 112 | 4 5/8 | 14 | 10 000 | 1 000 | 672 | 188 000 | 414 463 | 1 843,7 |
| 120 | 5 | 15 | 11 150 | 1 115 | 773 | 215 000 | 473 989 | 2 108,4 |
In accordance to ISO 10547:2009. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
