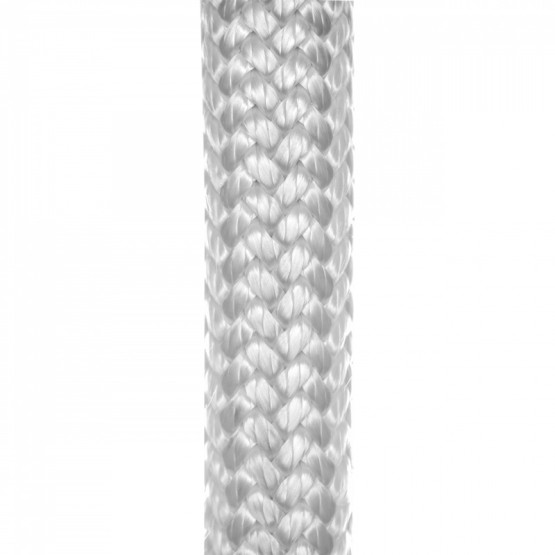

Polyamide DB
Polyamide Double Braided ropes provide high breaking strengths while its high elongation works as an excellent energy absorber. Quality of fibers insures a perfect twist and lay tension reducing polyamide natural shrinkage during use. The braided core and cover are oriented to maximize strength, abrasion and heat resistance even in wet conditions. The construction of this ropes makes them ideal for towing, mooring, and other applications that requires shock absorption.
-
- Excellent energy absorption
- Good abrasion and wear resistance even in wet conditions
- Good UV resistance
- High flexibility, non kinking and non-rotating
-
-
- Raw material: Polyamide
- Specific Gravity: 1,14 (sinks)
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 6,7%
50% …. 11,4%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 6 1/4 3/4 22,4 2,2 1,5 805 1 774 7,9 8 5/16 1 39,8 4 2,7 1 428 3 147 14 10 3/8 1 1/4 62,2 6,2 4,2 2 223 4 901 21,8 12 1/2 1 1/2 89,6 9 6 3 192 7 036 31,3 14 9/16 1 3/4 122 12,2 8,2 4 334 9 554 42,5 16 5/8 2 159 15,9 10,7 5 639 12 432 55,3 18 3/4 2 1/4 202 20,2 13,6 7 128 15 714 69,9 20 13/16 2 1/2 249 24,9 16,7 8 790 19 378 86,2 22 7/8 2 3/4 301 30,1 20,2 10 605 23 380 104 24 1 3 358 35,8 24,1 12 645 27 876 124 26 1 1/32 3 1/4 420 42 28,2 14 786 32 597 145 28 1 1/8 3 1/2 488 48,8 32,8 17 131 37 767 168 30 1 1/4 3 3/4 560 56 37,6 19 681 43 388 193 32 1 5/16 4 637 63,7 42,8 22 332 49 233 219 36 1 1/2 4 1/2 806 80,6 54,2 28 246 62 271 277 40 1 5/8 5 995 99,5 66,9 34 772 76 659 341 44 1 3/4 5 1/2 1 200 120 80,6 42 012 92 620 412 48 2 6 1 430 143 96,1 49 966 110 155 490 52 2 1/8 6 1/2 1 680 168 112,9 58 532 129 039 574 56 2 1/4 7 1 950 195 131 67 811 149 496 665 60 2 1/2 7 1/2 2 240 224 150,5 77 703 171 302 762 64 2 5/8 8 2 550 255 171,3 88 410 194 907 867 68 2 3/4 8 1/2 2 880 288 193,5 98 709 217 612 968 72 2 7/8 9 3 210 321 215,7 109 008 240 318 1 069 80 3 1/4 10 3 970 397 266,8 137 968 304 163 1 353 88 3 5/8 11 4 810 481 323,2 167 030 368 232 1 638 96 4 12 5 720 572 384,4 194 970 429 829 1 912 104 4 1/4 13 6 710 671 450,9 231 986 511 434 2 275 112 4 5/8 14 7 790 779 523,5 266 963 588 542 2 618 120 5 15 8 930 893 600,1 304 998 672 395 2 991
In accordance to ISO 10554:2009. More diameters available by demand.Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring lines
- Towing lines
- Shock lines
-
- Raw material: Polyamide
- Specific Gravity: 1,14 (sinks)
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 6,7%
50% …. 11,4%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 6 | 1/4 | 3/4 | 22,4 | 2,2 | 1,5 | 805 | 1 774 | 7,9 |
| 8 | 5/16 | 1 | 39,8 | 4 | 2,7 | 1 428 | 3 147 | 14 |
| 10 | 3/8 | 1 1/4 | 62,2 | 6,2 | 4,2 | 2 223 | 4 901 | 21,8 |
| 12 | 1/2 | 1 1/2 | 89,6 | 9 | 6 | 3 192 | 7 036 | 31,3 |
| 14 | 9/16 | 1 3/4 | 122 | 12,2 | 8,2 | 4 334 | 9 554 | 42,5 |
| 16 | 5/8 | 2 | 159 | 15,9 | 10,7 | 5 639 | 12 432 | 55,3 |
| 18 | 3/4 | 2 1/4 | 202 | 20,2 | 13,6 | 7 128 | 15 714 | 69,9 |
| 20 | 13/16 | 2 1/2 | 249 | 24,9 | 16,7 | 8 790 | 19 378 | 86,2 |
| 22 | 7/8 | 2 3/4 | 301 | 30,1 | 20,2 | 10 605 | 23 380 | 104 |
| 24 | 1 | 3 | 358 | 35,8 | 24,1 | 12 645 | 27 876 | 124 |
| 26 | 1 1/32 | 3 1/4 | 420 | 42 | 28,2 | 14 786 | 32 597 | 145 |
| 28 | 1 1/8 | 3 1/2 | 488 | 48,8 | 32,8 | 17 131 | 37 767 | 168 |
| 30 | 1 1/4 | 3 3/4 | 560 | 56 | 37,6 | 19 681 | 43 388 | 193 |
| 32 | 1 5/16 | 4 | 637 | 63,7 | 42,8 | 22 332 | 49 233 | 219 |
| 36 | 1 1/2 | 4 1/2 | 806 | 80,6 | 54,2 | 28 246 | 62 271 | 277 |
| 40 | 1 5/8 | 5 | 995 | 99,5 | 66,9 | 34 772 | 76 659 | 341 |
| 44 | 1 3/4 | 5 1/2 | 1 200 | 120 | 80,6 | 42 012 | 92 620 | 412 |
| 48 | 2 | 6 | 1 430 | 143 | 96,1 | 49 966 | 110 155 | 490 |
| 52 | 2 1/8 | 6 1/2 | 1 680 | 168 | 112,9 | 58 532 | 129 039 | 574 |
| 56 | 2 1/4 | 7 | 1 950 | 195 | 131 | 67 811 | 149 496 | 665 |
| 60 | 2 1/2 | 7 1/2 | 2 240 | 224 | 150,5 | 77 703 | 171 302 | 762 |
| 64 | 2 5/8 | 8 | 2 550 | 255 | 171,3 | 88 410 | 194 907 | 867 |
| 68 | 2 3/4 | 8 1/2 | 2 880 | 288 | 193,5 | 98 709 | 217 612 | 968 |
| 72 | 2 7/8 | 9 | 3 210 | 321 | 215,7 | 109 008 | 240 318 | 1 069 |
| 80 | 3 1/4 | 10 | 3 970 | 397 | 266,8 | 137 968 | 304 163 | 1 353 |
| 88 | 3 5/8 | 11 | 4 810 | 481 | 323,2 | 167 030 | 368 232 | 1 638 |
| 96 | 4 | 12 | 5 720 | 572 | 384,4 | 194 970 | 429 829 | 1 912 |
| 104 | 4 1/4 | 13 | 6 710 | 671 | 450,9 | 231 986 | 511 434 | 2 275 |
| 112 | 4 5/8 | 14 | 7 790 | 779 | 523,5 | 266 963 | 588 542 | 2 618 |
| 120 | 5 | 15 | 8 930 | 893 | 600,1 | 304 998 | 672 395 | 2 991 |
In accordance to ISO 10554:2009. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
