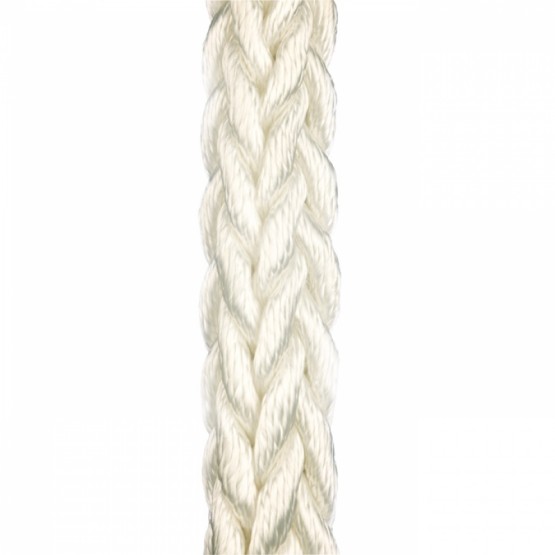

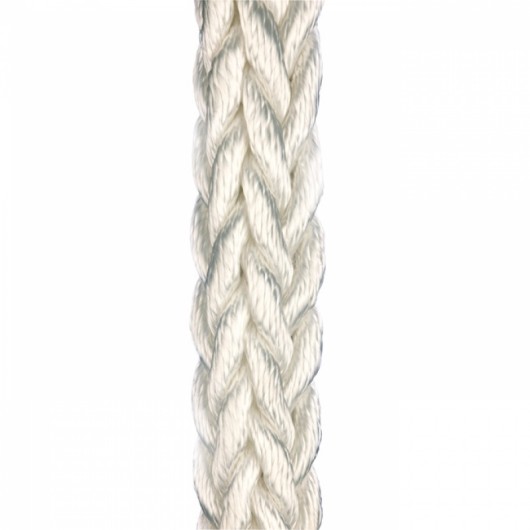

Polyester 12 strands
The smoothness and high tenacity characteristics of polyester are empowered by a construction enhancing its excellent abrasion and high heat resistance, creating a durable high tenacity rope with low elongation and excellent fatigue life. Polyester ropes do not absorb water, so they neither harden or lose strength when wet. Available in 12 strands, 8 strands, 4 strands and 3 strands.
-
- High heat and abrasion resistance
- High strength and low working elongation
- Excellent UV resistance
- Flexible, non kinking and non-rotating
-
-
- Raw material: Polyester (HT)
- Specific Gravity: 1,38 (sinks)
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 5,0%
50% …. 8,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 24 1 3 437 43,7 29,4 9 687 21 357 95 28 1 1/8 3 1/2 595 59,5 40 12 747 28 101 125 30 1 1/4 3 3/4 683 68,3 45,9 14 276 31 473 140 32 1 5/16 4 777 77,7 52,2 16 316 35 969 160 36 1 1/2 4 1/2 984 98,4 66,1 20 394 44 961 200 40 1 5/8 5 1 210 121 81,3 25 493 56 201 250 44 1 3/4 5 1/2 1 470 147 98,8 30 592 67 442 300 48 2 6 1 750 175 117,6 36 200 79 806 355 52 2 1/8 6 1/2 2 050 205 137,8 43 338 95 543 425 56 2 1/4 7 2 380 238 159,9 48 437 106 783 475 60 2 1/2 7 1/2 2 730 273 183,4 54 045 119 147 530 64 2 5/8 8 3 110 311 209 61 183 134 884 600 72 2 7/8 9 3 930 393 264,1 76 479 168 604 750 In accordance to ISO 1141:2021. More diameters available by demand.
Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations.
- Mooring lines
- Mooring pendants
- Tug and towing lines
-
- Raw material: Polyester (HT)
- Specific Gravity: 1,38 (sinks)
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 5,0%
50% …. 8,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 24 | 1 | 3 | 437 | 43,7 | 29,4 | 9 687 | 21 357 | 95 |
| 28 | 1 1/8 | 3 1/2 | 595 | 59,5 | 40 | 12 747 | 28 101 | 125 |
| 30 | 1 1/4 | 3 3/4 | 683 | 68,3 | 45,9 | 14 276 | 31 473 | 140 |
| 32 | 1 5/16 | 4 | 777 | 77,7 | 52,2 | 16 316 | 35 969 | 160 |
| 36 | 1 1/2 | 4 1/2 | 984 | 98,4 | 66,1 | 20 394 | 44 961 | 200 |
| 40 | 1 5/8 | 5 | 1 210 | 121 | 81,3 | 25 493 | 56 201 | 250 |
| 44 | 1 3/4 | 5 1/2 | 1 470 | 147 | 98,8 | 30 592 | 67 442 | 300 |
| 48 | 2 | 6 | 1 750 | 175 | 117,6 | 36 200 | 79 806 | 355 |
| 52 | 2 1/8 | 6 1/2 | 2 050 | 205 | 137,8 | 43 338 | 95 543 | 425 |
| 56 | 2 1/4 | 7 | 2 380 | 238 | 159,9 | 48 437 | 106 783 | 475 |
| 60 | 2 1/2 | 7 1/2 | 2 730 | 273 | 183,4 | 54 045 | 119 147 | 530 |
| 64 | 2 5/8 | 8 | 3 110 | 311 | 209 | 61 183 | 134 884 | 600 |
| 72 | 2 7/8 | 9 | 3 930 | 393 | 264,1 | 76 479 | 168 604 | 750 |
In accordance to ISO 1141:2021. More diameters available by demand.
Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations.
