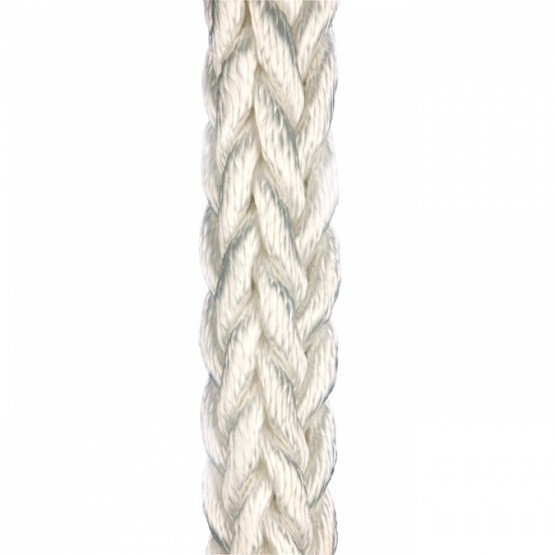

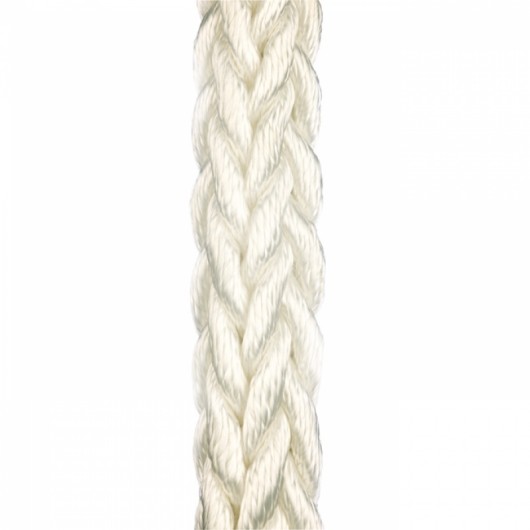

Polyamide 12 strands
Polyamide ropes provide high breaking strengths while its high elongation works as an excellent energy absorber. At the same time, it has a very good recovery from strech. Also, the characteristics of this fibers present a reduced natural shrinkage during use. Excelent abrasion resistance even in wet conditions while the quality of fibers insure a perfect twist and lay tension. Available in 12 strand, 8 strand, 4 strand and 3 strand.
-
- Excellent shock mitigation
- Good abrasion and wear resistance in wet conditions
- Good UV resistance
- Flexible, non kinking and non-rotating
-
-
- Raw material: Polyamide
- Specific Gravity: 1,14 (sinks)
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 11,0%
50% …. 18,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 360 36,0 24,2 12 033 26 527 118 28 1 1/8 3 1/2 490 49,0 32,9 16 316 35 969 160 30 1 1/4 3 3/4 560 56,0 37,6 18 355 40 465 180 32 1 5/16 4 640 64,0 43,0 21 618 47 659 212 36 1 1/2 4 1/2 810 81,0 54,4 27 023 59 574 265 40 1 5/8 5 1 000 100,0 67,2 32 121 70 814 315 44 1 3/4 5 1/2 1 210 121,0 81,3 38 240 84 302 375 48 2 6 1 440 144,0 96,8 45 887 101 163 450 52 2 1/8 6 1/2 1 700 170,0 114,2 54 045 119 147 530 56 2 1/4 7 1 970 197,0 132,4 61 183 134 884 600 60 2 1/2 7 1/2 2 260 226,0 151,9 68 321 150 620 670 64 2 5/8 8 2 570 257,0 172,7 76 479 168 604 750 72 2 7/8 9 3 250 325,0 218,4 96 873 213 566 950
In accordance to ISO 1140:2021. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring lines
- Towing lines
- Shock lines
-
- Raw material: Polyamide
- Specific Gravity: 1,14 (sinks)
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 11,0%
50% …. 18,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 360 | 36,0 | 24,2 | 12 033 | 26 527 | 118 |
| 28 | 1 1/8 | 3 1/2 | 490 | 49,0 | 32,9 | 16 316 | 35 969 | 160 |
| 30 | 1 1/4 | 3 3/4 | 560 | 56,0 | 37,6 | 18 355 | 40 465 | 180 |
| 32 | 1 5/16 | 4 | 640 | 64,0 | 43,0 | 21 618 | 47 659 | 212 |
| 36 | 1 1/2 | 4 1/2 | 810 | 81,0 | 54,4 | 27 023 | 59 574 | 265 |
| 40 | 1 5/8 | 5 | 1 000 | 100,0 | 67,2 | 32 121 | 70 814 | 315 |
| 44 | 1 3/4 | 5 1/2 | 1 210 | 121,0 | 81,3 | 38 240 | 84 302 | 375 |
| 48 | 2 | 6 | 1 440 | 144,0 | 96,8 | 45 887 | 101 163 | 450 |
| 52 | 2 1/8 | 6 1/2 | 1 700 | 170,0 | 114,2 | 54 045 | 119 147 | 530 |
| 56 | 2 1/4 | 7 | 1 970 | 197,0 | 132,4 | 61 183 | 134 884 | 600 |
| 60 | 2 1/2 | 7 1/2 | 2 260 | 226,0 | 151,9 | 68 321 | 150 620 | 670 |
| 64 | 2 5/8 | 8 | 2 570 | 257,0 | 172,7 | 76 479 | 168 604 | 750 |
| 72 | 2 7/8 | 9 | 3 250 | 325,0 | 218,4 | 96 873 | 213 566 | 950 |
In accordance to ISO 1140:2021. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
