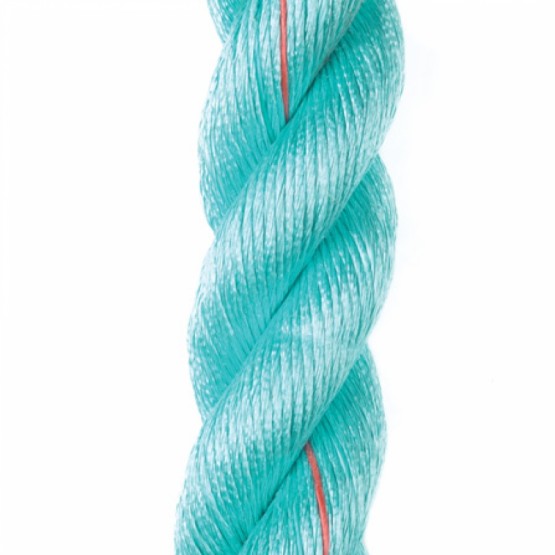

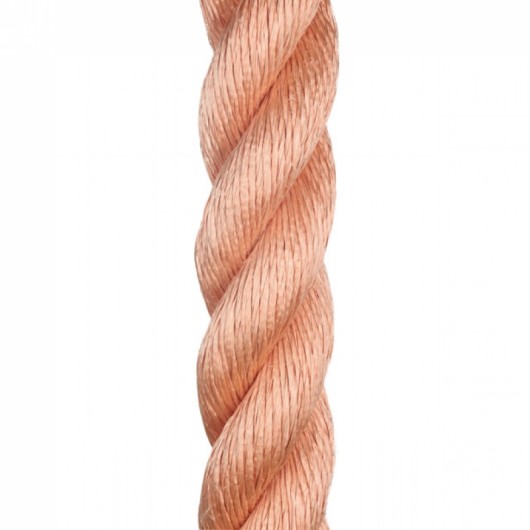

Movline Plus
Movline Plus is an extremely strong and high tenacity bi-polymer composite fiber extruded on a custom-built extrusion process. Its gripping capability is enhanced by the outer fuzzy surface developed in use, also protecting the inner fibers against abrasion increasing the rope lifetime. The rope is especially suitable for vessel mooring and also aquaculture cages mooring. Movline Plus are floating ropes and do not absorb water, making them very easy to handle and work with. Also available in 12 strands and 8 strands.
-
- High abrasion and wear resistance
- High strength floating line
- No water absorption
- Good UV resistance
-
-
- Raw material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94 (floats)
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 6,0%
50% …. 11,5%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 4 5/32 1/2 8 0,8 0,5 337 742 3,3 5 3/16 5/8 12 1,2 0,8 510 1 124 5 6 1/4 3/4 16 1,6 1,1 689 1 520 6,8 8 5/16 1 29 2,9 1,9 1 193 2 630 11,7 10 3/8 1 1/4 45 4,5 3 1 835 4 047 18 12 1/2 1 1/2 65 6,5 4,4 2 590 5 710 25,4 14 9/16 1 3/4 88 8,8 5,9 3 467 7 643 34 16 5/8 2 116 11,6 7,8 4 436 9 779 43,5 18 3/4 2 1/4 147 14,7 9,9 5 557 12 252 54,5 20 13/16 2 1/2 181 18,1 12,2 6 751 14 882 66,2 22 7/8 2 3/4 219 21,9 14,7 8 066 17 782 79,1 24 1 3 261 26,1 17,5 9 463 20 862 92,8 26 1 1/32 3 1/4 306 30,6 20,6 10 911 24 054 107 28 1 1/8 3 1/2 355 35,5 23,9 12 543 27 651 123 30 1 1/4 3 3/4 408 40,8 27,4 14 276 31 473 140 32 1 5/16 4 464 46,4 31,2 16 010 35 295 157 34 1 11/32 4 1/4 525 52,5 35,3 17 845 39 341 175 36 1 1/2 4 1/2 587 58,7 39,4 19 783 43 612 194 38 1 9/16 4 3/4 656 65,6 44,1 21 822 48 108 214 40 1 5/8 5 725 72,5 48,7 23 861 52 605 234 44 1 3/4 5 1/2 877 87,7 58,9 28 246 62 271 277 48 2 6 1 040 104 69,9 33 141 73 062 325 52 2 1/8 6 1/2 1 220 122 82 38 341 84 527 376 56 2 1/4 7 1 420 142 95,4 43 746 96 442 429 60 2 1/2 7 1/2 1 630 163 109,5 49 558 109 256 486 64 2 5/8 8 1 860 186 125 55 473 122 294 544 68 2 3/4 8 1/2 2 100 210 141,1 62 101 136 907 609 72 2 7/8 9 2 350 235 157,9 69 035 152 194 677 80 3 1/4 10 2 900 290 194,9 83 413 183 891 818 90 3 9/16 11 1/8 3 750 375 252 107 886 237 845 1 058
In accordance to ISO 10572:2009. More diameters available by demand.
Above breaking loads are for 3 strand ropes. On 4 strand ropes, breaking loads are approximately 10% lower.
- Tie up and Mooring lines
- General deck lines
- Towing lines
-
- Raw material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94 (floats)
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 6,0%
50% …. 11,5%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 4 | 5/32 | 1/2 | 8 | 0,8 | 0,5 | 337 | 742 | 3,3 |
| 5 | 3/16 | 5/8 | 12 | 1,2 | 0,8 | 510 | 1 124 | 5 |
| 6 | 1/4 | 3/4 | 16 | 1,6 | 1,1 | 689 | 1 520 | 6,8 |
| 8 | 5/16 | 1 | 29 | 2,9 | 1,9 | 1 193 | 2 630 | 11,7 |
| 10 | 3/8 | 1 1/4 | 45 | 4,5 | 3 | 1 835 | 4 047 | 18 |
| 12 | 1/2 | 1 1/2 | 65 | 6,5 | 4,4 | 2 590 | 5 710 | 25,4 |
| 14 | 9/16 | 1 3/4 | 88 | 8,8 | 5,9 | 3 467 | 7 643 | 34 |
| 16 | 5/8 | 2 | 116 | 11,6 | 7,8 | 4 436 | 9 779 | 43,5 |
| 18 | 3/4 | 2 1/4 | 147 | 14,7 | 9,9 | 5 557 | 12 252 | 54,5 |
| 20 | 13/16 | 2 1/2 | 181 | 18,1 | 12,2 | 6 751 | 14 882 | 66,2 |
| 22 | 7/8 | 2 3/4 | 219 | 21,9 | 14,7 | 8 066 | 17 782 | 79,1 |
| 24 | 1 | 3 | 261 | 26,1 | 17,5 | 9 463 | 20 862 | 92,8 |
| 26 | 1 1/32 | 3 1/4 | 306 | 30,6 | 20,6 | 10 911 | 24 054 | 107 |
| 28 | 1 1/8 | 3 1/2 | 355 | 35,5 | 23,9 | 12 543 | 27 651 | 123 |
| 30 | 1 1/4 | 3 3/4 | 408 | 40,8 | 27,4 | 14 276 | 31 473 | 140 |
| 32 | 1 5/16 | 4 | 464 | 46,4 | 31,2 | 16 010 | 35 295 | 157 |
| 34 | 1 11/32 | 4 1/4 | 525 | 52,5 | 35,3 | 17 845 | 39 341 | 175 |
| 36 | 1 1/2 | 4 1/2 | 587 | 58,7 | 39,4 | 19 783 | 43 612 | 194 |
| 38 | 1 9/16 | 4 3/4 | 656 | 65,6 | 44,1 | 21 822 | 48 108 | 214 |
| 40 | 1 5/8 | 5 | 725 | 72,5 | 48,7 | 23 861 | 52 605 | 234 |
| 44 | 1 3/4 | 5 1/2 | 877 | 87,7 | 58,9 | 28 246 | 62 271 | 277 |
| 48 | 2 | 6 | 1 040 | 104 | 69,9 | 33 141 | 73 062 | 325 |
| 52 | 2 1/8 | 6 1/2 | 1 220 | 122 | 82 | 38 341 | 84 527 | 376 |
| 56 | 2 1/4 | 7 | 1 420 | 142 | 95,4 | 43 746 | 96 442 | 429 |
| 60 | 2 1/2 | 7 1/2 | 1 630 | 163 | 109,5 | 49 558 | 109 256 | 486 |
| 64 | 2 5/8 | 8 | 1 860 | 186 | 125 | 55 473 | 122 294 | 544 |
| 68 | 2 3/4 | 8 1/2 | 2 100 | 210 | 141,1 | 62 101 | 136 907 | 609 |
| 72 | 2 7/8 | 9 | 2 350 | 235 | 157,9 | 69 035 | 152 194 | 677 |
| 80 | 3 1/4 | 10 | 2 900 | 290 | 194,9 | 83 413 | 183 891 | 818 |
| 90 | 3 9/16 | 11 1/8 | 3 750 | 375 | 252 | 107 886 | 237 845 | 1 058 |
In accordance to ISO 10572:2009. More diameters available by demand.
Above breaking loads are for 3 strand ropes. On 4 strand ropes, breaking loads are approximately 10% lower.
