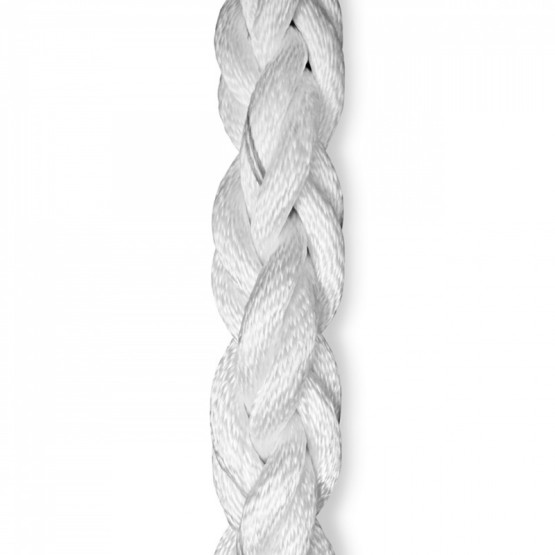

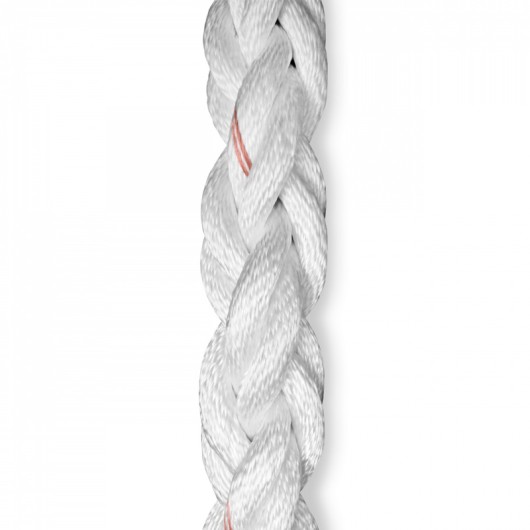

Movflex Sinking 8 strands
Movflex is a special composite rope that mixes high tenacity polyester yarns with high tenacity polyolefin yarns. This distinct combination gives it excellent fatigue properties when compared to an all polyester rope but with less handling weight. Its a firm, plaited and non-rotational construction that provides flexibility and smoothness, while its double/triple twisted cover yarns deliver excellent abrasion and heat resistance. This combination of fibers allows a rope with smaller diameters (less weight) with excellent characteristics. Also available in 12 strands, 4 strands and 3 strands.
-
- Exceptional abrasion and wear resistance even in wet conditions
- 18-20% lighter than regular polyester ropes
- Low water absorption
- Flexible and smooth, non kinking and non-rotating
- Excellent UV resistance
-
-
- Raw material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 1,10 (sinks)
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4,0%
50% …. 6,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 345 34,5 23,2 14 174 31 248 139 26 1 1/32 3 1/4 411 41,1 27,6 17 131 37 767 168 28 1 1/8 3 1/2 477 47,7 32,1 20 088 44 287 197 30 1 1/4 3 3/4 559 55,9 37,6 22 332 49 233 219 32 1 5/16 4 623 62,3 41,9 26 003 57 326 255 36 1 1/2 4 1/2 789 78,9 53 32 529 71 713 319 40 1 5/8 5 969 96,9 65,1 39 769 87 674 390 44 1 3/4 5 1/2 1 178 117,8 79,2 47 723 105 209 468 48 2 6 1 406 140,6 94,5 56 492 124 543 554 52 2 1/8 6 1/2 1 644 164,4 110,5 65 874 145 225 646 56 2 1/4 7 1 910 191 128,3 75 969 167 480 745 60 2 1/2 7 1/2 2 195 219,5 147,5 86 778 191 310 851 64 2 5/8 8 2 497 249,7 167,8 97 893 215 814 960 68 2 3/4 8 1/2 2 812 281,2 189 110 436 243 465 1083 72 2 7/8 9 3 154 315,4 211,9 122 978 271 116 1206 80 3 1/4 10 3 905 390,5 262,4 150 103 330 914 1472 88 3 5/8 11 4 720 472 317,2 181 102 399 255 1776 96 4 12 5 610 561 377 214 141 472 093 2100 104 4 1/4 13 6 550 655 440,1 248 812 548 527 2440 112 4 5/8 14 7 630 763 512,7 287 561 633 953 2820 120 5 15 8 770 877 589,3 327 330 721 627 3210 128 5 1/4 16 9 980 998 670,6 371 076 818 069 3639 136 5 1/2 17 11 280 1 128 758 416 556 918 332 4085
More diameters available by demand. The technicals characteristics stated are the result of a Cotesi development and are stricly indicative.
We reserve the right to change them without prior notice.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring lines
- Towing lines
-
- Raw material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 1,10 (sinks)
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4,0%
50% …. 6,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 345 | 34,5 | 23,2 | 14 174 | 31 248 | 139 |
| 26 | 1 1/32 | 3 1/4 | 411 | 41,1 | 27,6 | 17 131 | 37 767 | 168 |
| 28 | 1 1/8 | 3 1/2 | 477 | 47,7 | 32,1 | 20 088 | 44 287 | 197 |
| 30 | 1 1/4 | 3 3/4 | 559 | 55,9 | 37,6 | 22 332 | 49 233 | 219 |
| 32 | 1 5/16 | 4 | 623 | 62,3 | 41,9 | 26 003 | 57 326 | 255 |
| 36 | 1 1/2 | 4 1/2 | 789 | 78,9 | 53 | 32 529 | 71 713 | 319 |
| 40 | 1 5/8 | 5 | 969 | 96,9 | 65,1 | 39 769 | 87 674 | 390 |
| 44 | 1 3/4 | 5 1/2 | 1 178 | 117,8 | 79,2 | 47 723 | 105 209 | 468 |
| 48 | 2 | 6 | 1 406 | 140,6 | 94,5 | 56 492 | 124 543 | 554 |
| 52 | 2 1/8 | 6 1/2 | 1 644 | 164,4 | 110,5 | 65 874 | 145 225 | 646 |
| 56 | 2 1/4 | 7 | 1 910 | 191 | 128,3 | 75 969 | 167 480 | 745 |
| 60 | 2 1/2 | 7 1/2 | 2 195 | 219,5 | 147,5 | 86 778 | 191 310 | 851 |
| 64 | 2 5/8 | 8 | 2 497 | 249,7 | 167,8 | 97 893 | 215 814 | 960 |
| 68 | 2 3/4 | 8 1/2 | 2 812 | 281,2 | 189 | 110 436 | 243 465 | 1083 |
| 72 | 2 7/8 | 9 | 3 154 | 315,4 | 211,9 | 122 978 | 271 116 | 1206 |
| 80 | 3 1/4 | 10 | 3 905 | 390,5 | 262,4 | 150 103 | 330 914 | 1472 |
| 88 | 3 5/8 | 11 | 4 720 | 472 | 317,2 | 181 102 | 399 255 | 1776 |
| 96 | 4 | 12 | 5 610 | 561 | 377 | 214 141 | 472 093 | 2100 |
| 104 | 4 1/4 | 13 | 6 550 | 655 | 440,1 | 248 812 | 548 527 | 2440 |
| 112 | 4 5/8 | 14 | 7 630 | 763 | 512,7 | 287 561 | 633 953 | 2820 |
| 120 | 5 | 15 | 8 770 | 877 | 589,3 | 327 330 | 721 627 | 3210 |
| 128 | 5 1/4 | 16 | 9 980 | 998 | 670,6 | 371 076 | 818 069 | 3639 |
| 136 | 5 1/2 | 17 | 11 280 | 1 128 | 758 | 416 556 | 918 332 | 4085 |
More diameters available by demand. The technicals characteristics stated are the result of a Cotesi development and are stricly indicative.
We reserve the right to change them without prior notice.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
