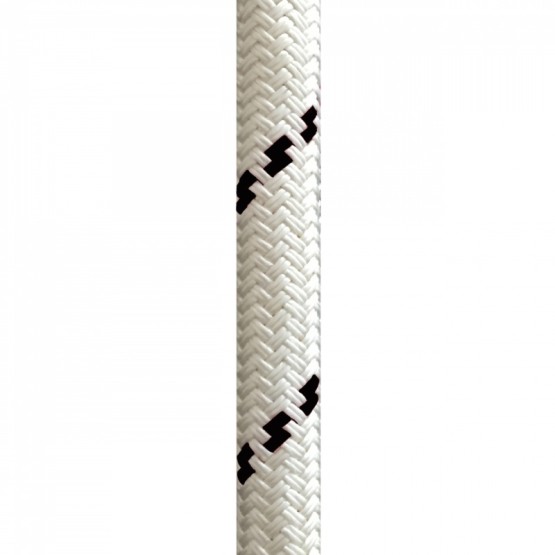

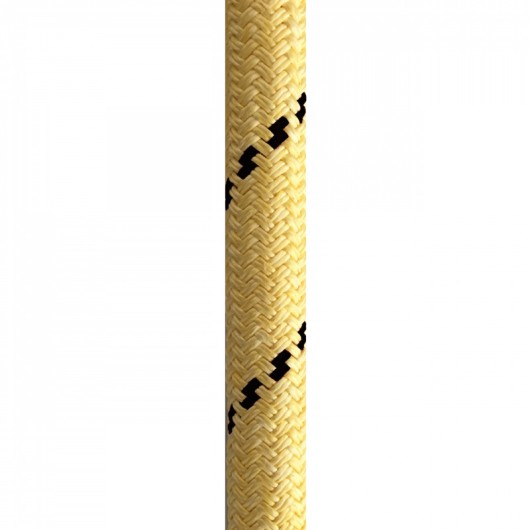

D-Tech Winchline - With Polyester Jacket
-
- 1/7 of the steel wire weight
- Longer life time compared to steel wire
- Low operational costs
- Low elongation
- Non kinking and non-rotating
- Easy and safer handling
-
- Raw material: Polyester
- Specific Gravity: 1,06
- Melting Point: 150ºC / 265ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 16 5/8 5 1/2 158 15,8 13,8 14 990 33 046 147 18 3/4 6 215 21,5 18,7 20 394 44 961 200 20 13/16 3 265 26,5 23,1 26 513 58 450 260 22 7/8 3 1/4 307 30,7 26,7 31 611 69 690 310 24 1 3 409 40,9 35,6 38 749 85 426 380 30 1 1/4 3 3/4 489 48,9 42,6 45 887 101 163 450 32 1 1/3 4 508 50,8 44,2 53 025 116 899 520 34 1 1/3 4 1/4 581 58,1 50,6 61 183 134 884 600 36 1 1/2 4 1/2 682 68,2 59,4 69 341 152 868 680 38 1 4/7 4 3/4 750 75 65,3 78 518 173 101 770 40 1 5/8 5 800 80 69,6 88 716 195 581 870 42 1 5/7 5 1/4 918 91,8 79,9 97 893 215 814 960 44 1 3/4 5 1/2 1 009 100,9 87,8 106 051 233 798 1 040 46 1 3/4 5 1/2 1 100 110 95,7 118 288 260 775 1 160 48 2 6 1 183 118,3 103 128 485 283 256 1 260 52 2 1/8 6 1/4 1 465 146,5 127,5 148 879 328 217 1 460 54 2 1/8 6 1/2 1 600 160 139,3 161 116 355 193 1 580 56 2 1/4 7 1 675 167,5 145,8 173 352 382 170 1 700 60 2 1/2 7 1/2 1 737 173,7 151,2 200 885 442 868 1 970 *Other diameters available upon request.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
We reserve the right to change them without prior notice. Tolerance in weights: ± 5%.
Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
- Mooring lines
- Anchor line
- Winch lines
- Towing and Tug ropes
- Raw material: Polyester
- Specific Gravity: 1,06
- Melting Point: 150ºC / 265ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 16 | 5/8 | 5 1/2 | 158 | 15,8 | 13,8 | 14 990 | 33 046 | 147 |
| 18 | 3/4 | 6 | 215 | 21,5 | 18,7 | 20 394 | 44 961 | 200 |
| 20 | 13/16 | 3 | 265 | 26,5 | 23,1 | 26 513 | 58 450 | 260 |
| 22 | 7/8 | 3 1/4 | 307 | 30,7 | 26,7 | 31 611 | 69 690 | 310 |
| 24 | 1 | 3 | 409 | 40,9 | 35,6 | 38 749 | 85 426 | 380 |
| 30 | 1 1/4 | 3 3/4 | 489 | 48,9 | 42,6 | 45 887 | 101 163 | 450 |
| 32 | 1 1/3 | 4 | 508 | 50,8 | 44,2 | 53 025 | 116 899 | 520 |
| 34 | 1 1/3 | 4 1/4 | 581 | 58,1 | 50,6 | 61 183 | 134 884 | 600 |
| 36 | 1 1/2 | 4 1/2 | 682 | 68,2 | 59,4 | 69 341 | 152 868 | 680 |
| 38 | 1 4/7 | 4 3/4 | 750 | 75 | 65,3 | 78 518 | 173 101 | 770 |
| 40 | 1 5/8 | 5 | 800 | 80 | 69,6 | 88 716 | 195 581 | 870 |
| 42 | 1 5/7 | 5 1/4 | 918 | 91,8 | 79,9 | 97 893 | 215 814 | 960 |
| 44 | 1 3/4 | 5 1/2 | 1 009 | 100,9 | 87,8 | 106 051 | 233 798 | 1 040 |
| 46 | 1 3/4 | 5 1/2 | 1 100 | 110 | 95,7 | 118 288 | 260 775 | 1 160 |
| 48 | 2 | 6 | 1 183 | 118,3 | 103 | 128 485 | 283 256 | 1 260 |
| 52 | 2 1/8 | 6 1/4 | 1 465 | 146,5 | 127,5 | 148 879 | 328 217 | 1 460 |
| 54 | 2 1/8 | 6 1/2 | 1 600 | 160 | 139,3 | 161 116 | 355 193 | 1 580 |
| 56 | 2 1/4 | 7 | 1 675 | 167,5 | 145,8 | 173 352 | 382 170 | 1 700 |
| 60 | 2 1/2 | 7 1/2 | 1 737 | 173,7 | 151,2 | 200 885 | 442 868 | 1 970 |
*Other diameters available upon request.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
We reserve the right to change them without prior notice. Tolerance in weights: ± 5%.
Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
