D-Tech Winchline - With HMWPE Jacket

D-Tech Winchline - With HMWPE Jacket

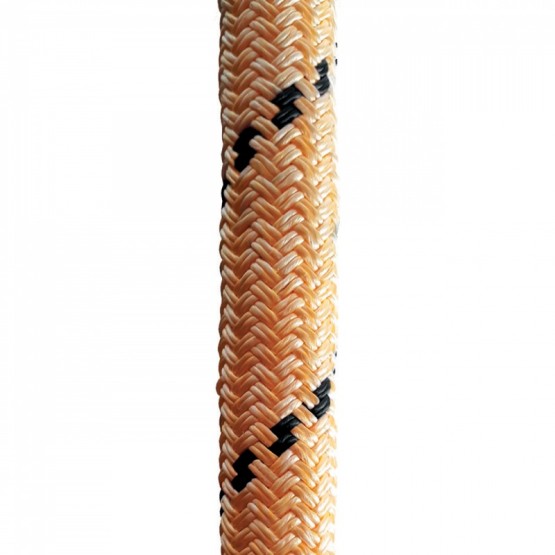

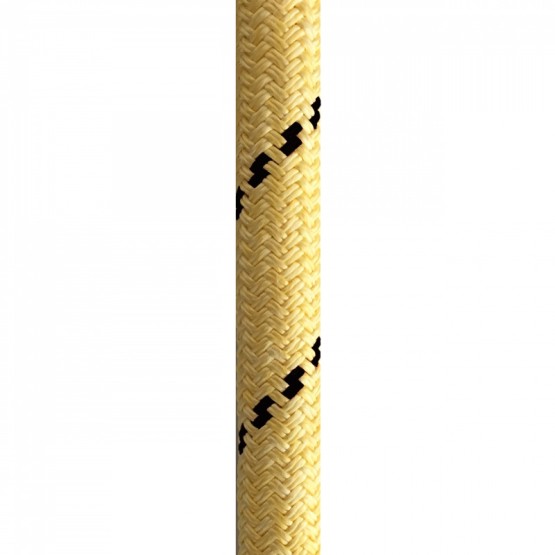

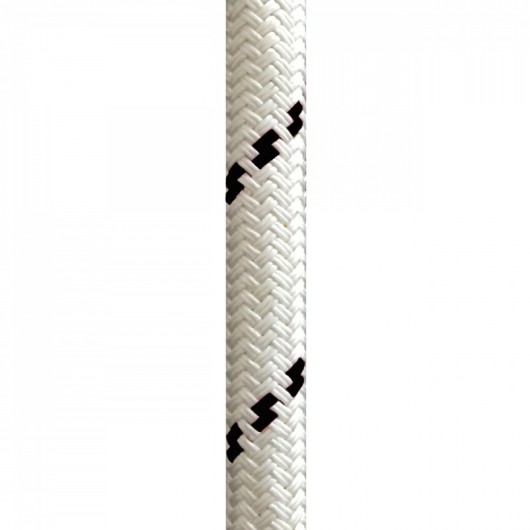

Made from HMWPE fibers and coated with a Pro-Tech self-unique impregnation that improves abrasion, heat resistance and fatigue properties. Cotesi D-Tech Winchline must be considered when high breaking strengths are required. Stronger than steel wire ropes of same weight, it has proven to be a cost-saving replacement in several applications. Double braided construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in HMWPE. Also available with PE jacket.

D-Tech Winchline - With HMWPE Jacket

Made from HMWPE fibers and coated with a Pro-Tech self-unique impregnation that improves abrasion, heat resistance and fatigue properties. Cotesi D-Tech Winchline must be considered when high breaking strengths are required. Stronger than steel wire ropes of same weight, it has proven to be a cost-saving replacement in several applications. Double braided construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in HMWPE. Also available with PE jacket.
    • 1/7 of the steel wire weight
    • Longer life time compared to steel wire
    • Low operational costs
    • Low elongation
    • Non kinking and non-rotating
Get info
      • Raw material: HMWPE
      • Specific Gravity: 0,98 (floats)
      • Melting Point: 150ºC / 265ºC
      • Elongation at % of BS:

      25% …. 0,9%

      50% …. 1,6%

    DiameterSize
    Circ.    		WeightBreaking Load
    mmInchesInchesKtexKg/100mlbs/100ftkgflbfkN
    165/8213813,89,314 99033 046147
    183/42 1/41901912,820 39444 961200
    2013/162 1/22302315,526 51358 450260
    227/82 3/427427,418,431 61169 690310
    24133603624,238 74985 426380
    301 1/43 3/442542,528,645 887101 163450
    321 5/16447447,431,953 025116 899520
    341 11/324 1/454454,436,661 183134 884600
    361 1/24 1/263763,742,869 341152 868680
    381 9/164 3/470670,647,478 518173 101770
    401 5/8576576,551,488 716195 581870
    421 11/165 5/1687487,458,797893215 814960
    441 3/45 1/296396,364,7106 051233 7981 040
    461 3/45 3/41 02010268,5118 288260 7751 160
    48261 10011073,9128 485283 2561 260
    522 1/86 1/21 38013892,7148 879328 2171 460
    542 1/86 1/21 500150100,8161 116355 1931 580
    562 1/471 575157,5105,8173 352382 1701 700
    602 1/27 1/21 650165110,9200 885442 8681 970

    *Other diameters available upon request.

    The technical characteristics stated are the result of a Cotesi development and are strictly indicative.

    We reserve the right to change them without prior notice. Tolerance in weights: ± 5%.

    Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.

  • Mooring lines
  • Anchor line
  • Winch lines
  • Towing and Tug ropes

    • Raw material: HMWPE
    • Specific Gravity: 0,98 (floats)
    • Melting Point: 150ºC / 265ºC
    • Elongation at % of BS:

    25% …. 0,9%

    50% …. 1,6%

DiameterSize
Circ.		WeightBreaking Load
mmInchesInchesKtexKg/100mlbs/100ftkgflbfkN
165/8213813,89,314 99033 046147
183/42 1/41901912,820 39444 961200
2013/162 1/22302315,526 51358 450260
227/82 3/427427,418,431 61169 690310
24133603624,238 74985 426380
301 1/43 3/442542,528,645 887101 163450
321 5/16447447,431,953 025116 899520
341 11/324 1/454454,436,661 183134 884600
361 1/24 1/263763,742,869 341152 868680
381 9/164 3/470670,647,478 518173 101770
401 5/8576576,551,488 716195 581870
421 11/165 5/1687487,458,797893215 814960
441 3/45 1/296396,364,7106 051233 7981 040
461 3/45 3/41 02010268,5118 288260 7751 160
48261 10011073,9128 485283 2561 260
522 1/86 1/21 38013892,7148 879328 2171 460
542 1/86 1/21 500150100,8161 116355 1931 580
562 1/471 575157,5105,8173 352382 1701 700
602 1/27 1/21 650165110,9200 885442 8681 970

*Other diameters available upon request.

The technical characteristics stated are the result of a Cotesi development and are strictly indicative.

We reserve the right to change them without prior notice. Tolerance in weights: ± 5%.

Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
