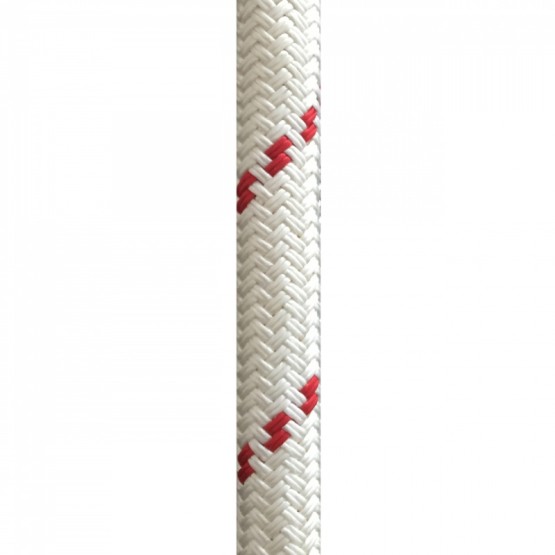

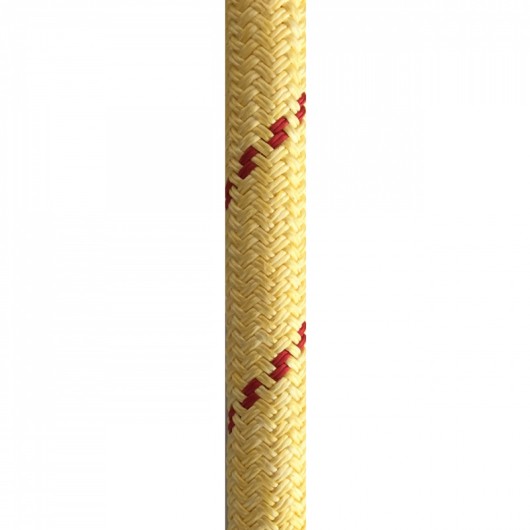

D-Tech Winchline Plus - With Polyester Jacket

D-Tech Winchline Plus - With Polyester Jacket

Made from HMWPE fibers and coated with a Pro-Tech self-unique impregnation that improves its abrasion resistance and fatigue properties, Cotesi D-Tech Winchline Plus must be considered when high breaking strengths are required. Stronger than steel wire ropes of same weight, it has proven to be a cost-saving replacement in several applications. Double braided optimized construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in Polyester. Due to the polyester jacket, this line has non-floating properties. Also available with PE jacket.

D-Tech Winchline Plus - With Polyester Jacket

Made from HMWPE fibers and coated with a Pro-Tech self-unique impregnation that improves its abrasion resistance and fatigue properties, Cotesi D-Tech Winchline Plus must be considered when high breaking strengths are required. Stronger than steel wire ropes of same weight, it has proven to be a cost-saving replacement in several applications. Double braided optimized construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in Polyester. Due to the polyester jacket, this line has non-floating properties. Also available with PE jacket.

  • ADVANTAGES:
    > 1/7 of the steel wire weight
    > Longer life time compared to steel wire
    > Low operational costs
    > Low elongation
    > Non kinking and non-rotating
    > Easy and safer handl
Get info

    • Raw material: HMWPE / Polyester
      Specific Gravity: 1,06 (sinks)
      Melting Point: 150ºC / 265ºC
      Elongation at % of BS:
            25% …. 0,9%
            50% …. 1,6%

    DiameterSize
    Circ.    		WeightBreaking Load
    mmInchesInchesKtexKg/100mlbs/100ftkgflbfkN
    22  7/82 3/42902919,52804261822275
    24133403422,83314173062325
    261 1/323 1/44204228,248029105884471
    281 1/83 1/248348,332,555983123418549
    301 1/43 3/455155,13764956143201637
    321 5/164700704775051165457736
    341 11/324 1/475475,450,784025185240824
    361 1/24 1/280880,854,392998205023912
    381 9/164 3/489389,3601019722248061000
    401 5/85100010067,21162482562791140
    421 11/165 5/16115011577,31284852832561260
    441 3/45 1/21250125841407213102321380
    461 3/45 3/4135013590,71524483360851495
    4826148014899,41641753619381610
    522 1/86 1/21700170114,21957864316281920
    562 1/471900190127,72304575080622260

    *Other diameters available upon request.

    The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
    We reserve the right to change them without prior notice. Tolerance in weights: ± 5%.
    Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.


  • Mooring lines
  • Anchor line
  • Winch lines
  • Towing and Tug ropes
