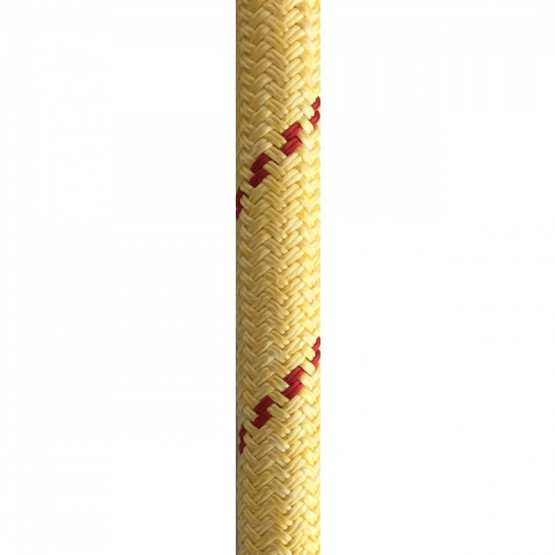

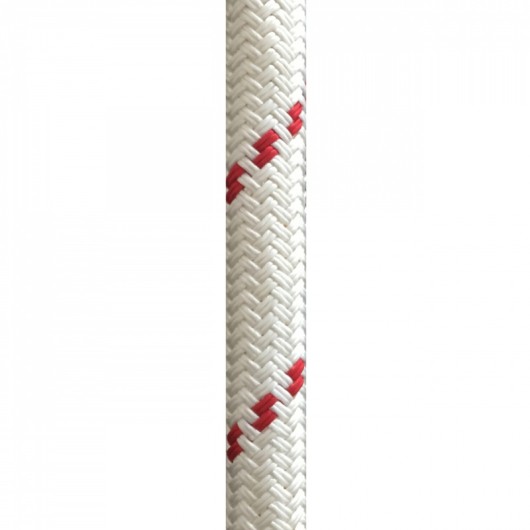

D-Tech Winchline Plus - With HMWPE Jacket

D-Tech Winchline Plus - With HMWPE Jacket

Made from HMWPE fibers and coated with a Pro-Tech self-unique impregnation that improves its abrasion resistance and fatigue properties, Cotesi D-Tech Winchline Plus must be considered when high breaking strengths are required. Stronger than steel wire ropes of same weight, it has proven to be a cost-saving replacement in several applications. Double braided optimized construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in HMWPE. Also available with a PE jacket.

D-Tech Winchline Plus - With HMWPE Jacket

Made from HMWPE fibers and coated with a Pro-Tech self-unique impregnation that improves its abrasion resistance and fatigue properties, Cotesi D-Tech Winchline Plus must be considered when high breaking strengths are required. Stronger than steel wire ropes of same weight, it has proven to be a cost-saving replacement in several applications. Double braided optimized construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in HMWPE. Also available with a PE jacket.

  • ADVANTAGES:

    • 1/7 of the steel wire weight
    • Longer life time compared to steel wire
    • Low operational costs
    • Low elongation
    • Non kinking and non-rotating
    • Easy and safer handling
Get info

    • Raw material: HMWPE
      Specific Gravity: 0,98 (floats)
      Melting Point: 150ºC / 265ºC
      Elongation at % of BS:
           25% …. 0,9%
           50% …. 1,6%

    DiameterSize
    Circ.    		WeightBreaking Load
    mmInchesInchesKtexKg/100mlbs/100ftKgflbfkN
    22  7/82 3/42602617,52804261822275
    24133103120,83314173062325
    261 1/323 1/43803825,548029105884471
    281 1/83 1/243543,529,255983123418549
    301 1/43 3/45005033,664956143201637
    321 5/164640644375051165457736
    341 11/324 1/46806845,784025185240824
    361 1/24 1/27207248,492998205023912
    381 9/164 3/48008053,81019722248061000
    401 5/859009060,51162482562791140
    421 5/75 1/4100010067,21284852832561260
    441 3/45 1/2111011174,61407213102321380
    461 3/45 1/21205120,5811524483360851495
    4826132013288,71641753619381610
    522 1/86 1/41500150100,81957864316281920
    562 1/471765176,5118,62304575080622260

    *Other diameters available upon request.

    The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
    We reserve the right to change them without prior notice. Tolerance in weights: ± 5%
    Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.

APPLICATIONS:

  • Mooring lines
  • Anchor lines
  • Winch lines
  • Towing and Tug ropes
