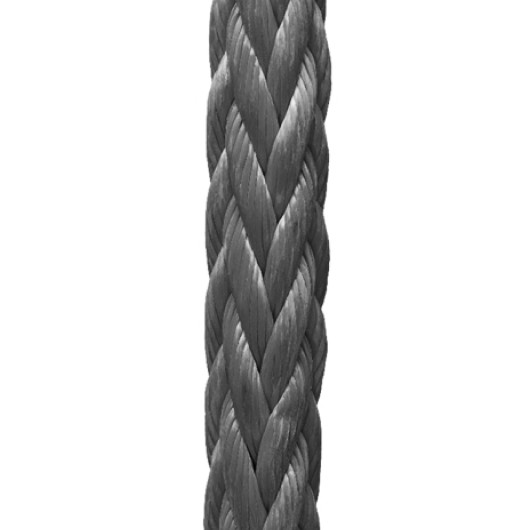

D-Tech 8 Strands

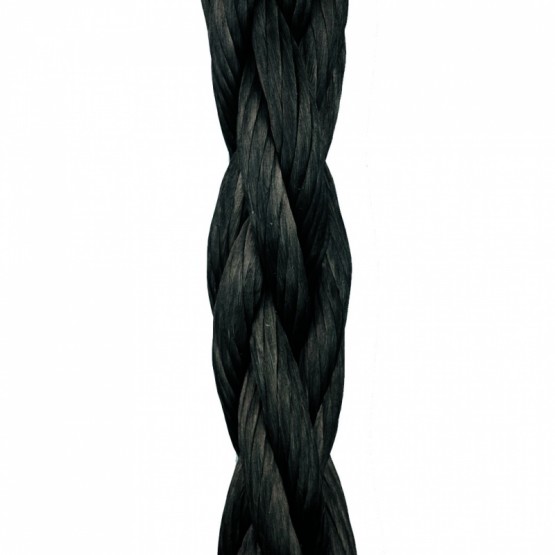

Made from HMWPE fibers and protected by a self-unique impregnation that improves its abrasion resistance, Cotesi D-Tech ropes must be considered when high breaking strengths are required. Stronger than steel wire of the same weight, it has proven to be a cost-saving replacement for wire rope in several applications. Its 8 strands plaited construction is smooth and non- rotational.
-
- 1/7 of the steel wire weight
- Longer life time compared to steel wire
- Low operational costs
- Low elongation
- Non kinking and non-rotating
- Easy and safer handling
- Very easy to splice
-
- Raw material: HMWPE
- Specific Gravity: 0,98
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
Diameter Size Circ. Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 331 33,1 22,2 53.025 116.899 520 26 1 1/32 3 1/4 386 38,6 25,9 61.183 134.884 600 28 1 1/8 3 1/2 445 44,5 29,9 69.851 153.992 685 30 1 1/4 3 3/4 508 50,8 34,1 79.028 174.225 775 32 1 5/16 4 575 57,5 38,6 88.206 194.457 865 34 1 11/32 4 1/4 646 64,6 43,4 98.403 216.938 965 36 1 1/2 4 1/2 722 72,2 48,5 109.110 240.542 1.070 38 1 9/16 4 3/4 801 80,1 53,8 119.817 264.147 1.175 40 1 5/8 5 884 88,4 59,4 131.034 288.876 1.285 44 1 3/4 5 1/2 1.062 106,2 71,4 155.507 342.829 1.525 48 2 6 1.255 125,5 84,3 181.000 399.031 1.775 52 2 1/8 6 1/2 1.464 146,4 98,4 208.533 459.728 2.045 56 2 1/4 7 1.688 168,8 113,4 237.595 523.798 2.330 60 2 1/2 7 1/2 1.928 192,8 129,6 268.696 592.364 2.635 64 2 5/8 8 2.183 218,3 146,7 300.817 663.178 2.950 68 2 3/4 8 1/2 2.453 245,3 164,8 334.978 738.488 3.285 72 2 7/8 9 2.738 273,8 184 370.668 817.170 3.635 76 3 9 3/8 3.038 303,8 204,1 407.888 899.224 4.000 80 3 1/4 10 3.353 335,3 225,3 446.128 983.526 4.375 88 3 5/8 11 4.028 402,8 270,7 528.215 1.164.495 5.180 96 4 12 4.762 476,2 320 615.911 1.357.828 6.040 104 4 1/4 13 5.555 555,5 373,3 709.725 1.564.650 6.960 112 4 5/8 14 6.406 640,6 430,5 809.148 1.783.836 7.935 120 5 15 7.316 731,6 491,6 913.669 2.014.262 8.960 128 5 1/4 16 8.233 823,3 553,2 1.024.309 2.258.176 10.045 136 5 1/2 17 9.308 930,8 625,5 1.140.047 2.513.331 11.180 More diameters available by demand.
In accordance to ISO 10325:2018.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations
- Mooring lines
- Anchor line
- Winch lines
- Towing and tug ropes
- Raw material: HMWPE
- Specific Gravity: 0,98
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 331 | 33,1 | 22,2 | 53.025 | 116.899 | 520 |
| 26 | 1 1/32 | 3 1/4 | 386 | 38,6 | 25,9 | 61.183 | 134.884 | 600 |
| 28 | 1 1/8 | 3 1/2 | 445 | 44,5 | 29,9 | 69.851 | 153.992 | 685 |
| 30 | 1 1/4 | 3 3/4 | 508 | 50,8 | 34,1 | 79.028 | 174.225 | 775 |
| 32 | 1 5/16 | 4 | 575 | 57,5 | 38,6 | 88.206 | 194.457 | 865 |
| 34 | 1 11/32 | 4 1/4 | 646 | 64,6 | 43,4 | 98.403 | 216.938 | 965 |
| 36 | 1 1/2 | 4 1/2 | 722 | 72,2 | 48,5 | 109.110 | 240.542 | 1.070 |
| 38 | 1 9/16 | 4 3/4 | 801 | 80,1 | 53,8 | 119.817 | 264.147 | 1.175 |
| 40 | 1 5/8 | 5 | 884 | 88,4 | 59,4 | 131.034 | 288.876 | 1.285 |
| 44 | 1 3/4 | 5 1/2 | 1.062 | 106,2 | 71,4 | 155.507 | 342.829 | 1.525 |
| 48 | 2 | 6 | 1.255 | 125,5 | 84,3 | 181.000 | 399.031 | 1.775 |
| 52 | 2 1/8 | 6 1/2 | 1.464 | 146,4 | 98,4 | 208.533 | 459.728 | 2.045 |
| 56 | 2 1/4 | 7 | 1.688 | 168,8 | 113,4 | 237.595 | 523.798 | 2.330 |
| 60 | 2 1/2 | 7 1/2 | 1.928 | 192,8 | 129,6 | 268.696 | 592.364 | 2.635 |
| 64 | 2 5/8 | 8 | 2.183 | 218,3 | 146,7 | 300.817 | 663.178 | 2.950 |
| 68 | 2 3/4 | 8 1/2 | 2.453 | 245,3 | 164,8 | 334.978 | 738.488 | 3.285 |
| 72 | 2 7/8 | 9 | 2.738 | 273,8 | 184 | 370.668 | 817.170 | 3.635 |
| 76 | 3 | 9 3/8 | 3.038 | 303,8 | 204,1 | 407.888 | 899.224 | 4.000 |
| 80 | 3 1/4 | 10 | 3.353 | 335,3 | 225,3 | 446.128 | 983.526 | 4.375 |
| 88 | 3 5/8 | 11 | 4.028 | 402,8 | 270,7 | 528.215 | 1.164.495 | 5.180 |
| 96 | 4 | 12 | 4.762 | 476,2 | 320 | 615.911 | 1.357.828 | 6.040 |
| 104 | 4 1/4 | 13 | 5.555 | 555,5 | 373,3 | 709.725 | 1.564.650 | 6.960 |
| 112 | 4 5/8 | 14 | 6.406 | 640,6 | 430,5 | 809.148 | 1.783.836 | 7.935 |
| 120 | 5 | 15 | 7.316 | 731,6 | 491,6 | 913.669 | 2.014.262 | 8.960 |
| 128 | 5 1/4 | 16 | 8.233 | 823,3 | 553,2 | 1.024.309 | 2.258.176 | 10.045 |
| 136 | 5 1/2 | 17 | 9.308 | 930,8 | 625,5 | 1.140.047 | 2.513.331 | 11.180 |
More diameters available by demand.
In accordance to ISO 10325:2018.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations
