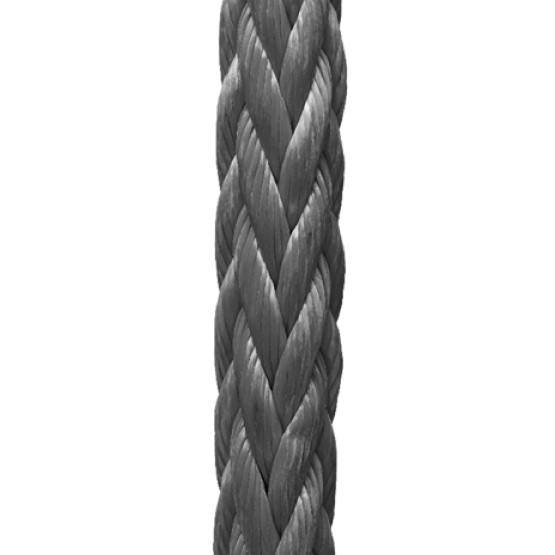

D-Tech 12 Strands
Made from HMWPE fibres and protected by a self unique impregnation that improves its abrasion resistance, Cotesi D-Tech ropes must be considered when high breaking strengths are required. Using a torque free 12 strands braided construction, D-Tech is stronger than steel wire of the same weight and has proven to be a cost-saving replacement for wire rope in several applications. The better handling of this rope makes it suitable for demanding towing and mooring applications. D-Tech 12 strands is the best option to replace conventional ropes in marine and offshore applications, such as, mooring, towing or lifting.
-
- 1/7 of the steel wire weight
- Longer life time compared to steel wire
- Low operational costs
- Low elongation
- Flexible, non kinking and non-rotating
- Easy and safer handling
- Easy to splice
-
-
- Raw material: HMWPE
- Specific Gravity: 0,98 (floats)
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 6 1/4 3/4 23 2,3 1,5 3 742 8 250 36,7 8 5/16 1 40 4 2,7 6 659 14 680 65,3 10 3/8 1 1/4 61 6,1 4,1 10 401 22 930 102 12 1/2 1 1/2 87 8,7 5,8 14 990 33 046 147 14 9/16 1 3/4 117 11,7 7,9 20 394 44 961 200 16 5/8 2 151 15,1 10,1 26 513 58 450 260 18 3/4 2 1/4 190 19 12,8 31 611 69 690 310 20 13/16 2 1/2 232 23,2 15,6 38 749 85 426 380 22 7/8 2 3/4 281 28,1 18,9 45 887 101 163 450 24 1 3 331 33,1 22,2 53 025 116 899 520 26 1 1/32 3 1/4 384 38,4 25,8 61 183 134 884 600 28 1 1/8 3 1/2 445 44,5 29,9 69 341 152 868 680 30 1 1/4 3 3/4 506 50,6 34 78 518 173 101 770 32 1 5/16 4 575 57,5 38,6 88 716 195 581 870 34 1 11/32 4 1/4 648 64,8 43,5 97 893 215 814 960 36 1 1/2 4 1/2 720 72 48,4 106 051 233 798 1 040 38 1 9/16 4 3/4 798 79,8 53,6 118 288 260 775 1 160 40 1 5/8 5 881 88,1 59,2 128 485 283 256 1 260 44 1 3/4 5 1/2 1 060 106 71,2 148 879 328 217 1 460 48 2 6 1 250 125 84 173 352 382 170 1 700 52 2 1/8 6 1/2 1 460 146 98,1 200 885 442 868 1 970 56 2 1/4 7 1 690 169 113,6 230 457 508 062 2 260 60 2 1/2 7 1/2 1 930 193 129,7 257 989 568 759 2 530 64 2 5/8 8 2 200 220 147,8 289 600 638 449 2 840 68 2 3/4 8 1/2 2 480 248 166,6 323 251 712 635 3 170 72 2 7/8 9 2 780 278 186,8 358 941 791 317 3 520 76 3 9 1/2 3 090 309 207,6 396 671 874 495 3 890 80 3 1/4 10 3 430 343 230,5 438 480 966 666 4 300 88 3 5/8 11 4 170 417 280,2 530 254 1 168 991 5 200 96 4 12 4 970 497 334 630 187 1 389 301 6 180
In accordance to ISO 10325:2018. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- 1/7 of the steel wire weight
- Longer life time compared to steel wire
- Low operational costs
- Low elongation
- Flexible, non kinking and non-rotating
- Easy and safer handling
- Easy to splice
-
- Raw material: HMWPE
- Specific Gravity: 0,98 (floats)
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 6 | 1/4 | 3/4 | 23 | 2,3 | 1,5 | 3 742 | 8 250 | 36,7 |
| 8 | 5/16 | 1 | 40 | 4 | 2,7 | 6 659 | 14 680 | 65,3 |
| 10 | 3/8 | 1 1/4 | 61 | 6,1 | 4,1 | 10 401 | 22 930 | 102 |
| 12 | 1/2 | 1 1/2 | 87 | 8,7 | 5,8 | 14 990 | 33 046 | 147 |
| 14 | 9/16 | 1 3/4 | 117 | 11,7 | 7,9 | 20 394 | 44 961 | 200 |
| 16 | 5/8 | 2 | 151 | 15,1 | 10,1 | 26 513 | 58 450 | 260 |
| 18 | 3/4 | 2 1/4 | 190 | 19 | 12,8 | 31 611 | 69 690 | 310 |
| 20 | 13/16 | 2 1/2 | 232 | 23,2 | 15,6 | 38 749 | 85 426 | 380 |
| 22 | 7/8 | 2 3/4 | 281 | 28,1 | 18,9 | 45 887 | 101 163 | 450 |
| 24 | 1 | 3 | 331 | 33,1 | 22,2 | 53 025 | 116 899 | 520 |
| 26 | 1 1/32 | 3 1/4 | 384 | 38,4 | 25,8 | 61 183 | 134 884 | 600 |
| 28 | 1 1/8 | 3 1/2 | 445 | 44,5 | 29,9 | 69 341 | 152 868 | 680 |
| 30 | 1 1/4 | 3 3/4 | 506 | 50,6 | 34 | 78 518 | 173 101 | 770 |
| 32 | 1 5/16 | 4 | 575 | 57,5 | 38,6 | 88 716 | 195 581 | 870 |
| 34 | 1 11/32 | 4 1/4 | 648 | 64,8 | 43,5 | 97 893 | 215 814 | 960 |
| 36 | 1 1/2 | 4 1/2 | 720 | 72 | 48,4 | 106 051 | 233 798 | 1 040 |
| 38 | 1 9/16 | 4 3/4 | 798 | 79,8 | 53,6 | 118 288 | 260 775 | 1 160 |
| 40 | 1 5/8 | 5 | 881 | 88,1 | 59,2 | 128 485 | 283 256 | 1 260 |
| 44 | 1 3/4 | 5 1/2 | 1 060 | 106 | 71,2 | 148 879 | 328 217 | 1 460 |
| 48 | 2 | 6 | 1 250 | 125 | 84 | 173 352 | 382 170 | 1 700 |
| 52 | 2 1/8 | 6 1/2 | 1 460 | 146 | 98,1 | 200 885 | 442 868 | 1 970 |
| 56 | 2 1/4 | 7 | 1 690 | 169 | 113,6 | 230 457 | 508 062 | 2 260 |
| 60 | 2 1/2 | 7 1/2 | 1 930 | 193 | 129,7 | 257 989 | 568 759 | 2 530 |
| 64 | 2 5/8 | 8 | 2 200 | 220 | 147,8 | 289 600 | 638 449 | 2 840 |
| 68 | 2 3/4 | 8 1/2 | 2 480 | 248 | 166,6 | 323 251 | 712 635 | 3 170 |
| 72 | 2 7/8 | 9 | 2 780 | 278 | 186,8 | 358 941 | 791 317 | 3 520 |
| 76 | 3 | 9 1/2 | 3 090 | 309 | 207,6 | 396 671 | 874 495 | 3 890 |
| 80 | 3 1/4 | 10 | 3 430 | 343 | 230,5 | 438 480 | 966 666 | 4 300 |
| 88 | 3 5/8 | 11 | 4 170 | 417 | 280,2 | 530 254 | 1 168 991 | 5 200 |
| 96 | 4 | 12 | 4 970 | 497 | 334 | 630 187 | 1 389 301 | 6 180 |
In accordance to ISO 10325:2018. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
