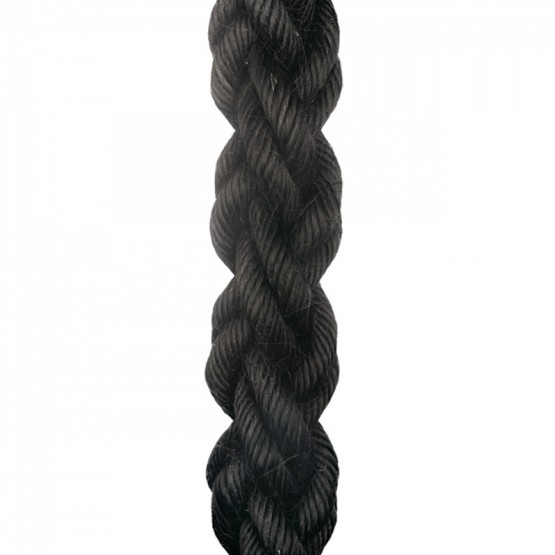

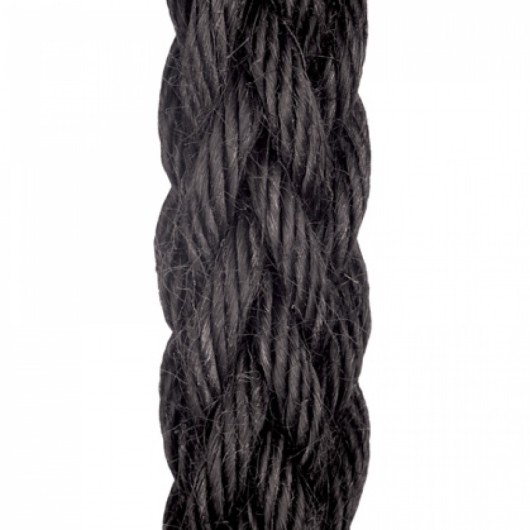

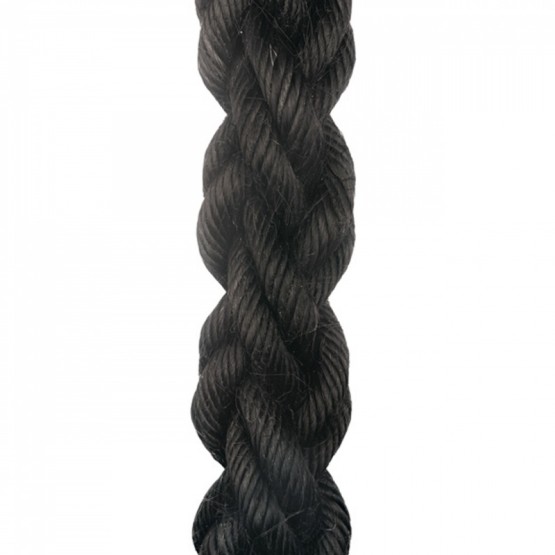

Berthing Rope 8 strands
An 8 strands plaited rope that combines Polyester’s high tenacity, abrasion and wear resistance with traditional PP spun. This very special blend along with its unique construction that perfectly combines these two fibers, gives this rope a superb handling and touch, highly appreciated by national marine defence fleets.
-
- Superb handling and touch
- Good abrasion and wear resistance
- Low water absorption
- Flexible, non kinking and non rotating
-
-
- Raw material: Spun Polypropylene / Polyester
- Specific Gravity: 1,16
- Melting Point: 165ºC / 265ºC
- Elongation at % of BS:
25% …. 3,5%
50% …. 7,9%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 24 1 3 405 40,5 27,2 8 770 19 333 86 26 1 1/32 3 1/4 439 43,9 29,5 9 483 20 907 93 28 1 1/8 3 1/2 473 47,3 31,8 10 197 22 481 100 30 1 1/4 3 3/4 543 54,3 36,5 10 809 23 829 106 32 1 5/16 4 614 61,4 41,3 12 237 26 977 120 36 1 1/2 4 1/2 760 76 51,1 15 092 33 271 148 40 1 5/8 5 950 95 63,8 18 865 41 589 185 44 1 3/4 5 1/2 1 175 117,5 79 22 638 49 907 222 48 2 6 1 364 136,4 91,7 26 003 57 326 255 52 2 1/8 6 1/2 1 600 160 107,5 30 082 66 318 295 56 2 1/4 7 1 850 185 124,3 34 467 75 984 338 60 2 1/2 7 1/2 2 120 212 142,5 39 157 86 326 384 64 2 5/8 8 2 420 242 162,6 44 154 97 341 433 68 2 3/4 8 1/2 2 732 273,2 183,6 49 456 109 031 485 72 2 7/8 9 3 060 306 205,6 52 618 116 000 516 80 3 1/4 10 3 780 378 254 63 631 140 279 624 88 3 5/8 11 4 570 457 307,1 76 173 167 930 747 96 4 12 5 450 545 366,2 89 429 197 155 877 104 4 1/4 13 6 400 640 430,1 102 278 225 480 1003 112 4 5/8 14 7 400 740 497,2 117 166 258 302 1149 120 5 15 8 500 850 571,2 133 277 293 821 1307 128 5 1/4 16 9 640 964 647,8 147 044 324 170 1442 136 5 1/2 17 10 930 1093 734,4 165 908 365 759 1627
- Mooring lines
- Anchor lines
-
- Raw material: Spun Polypropylene / Polyester
- Specific Gravity: 1,16
- Melting Point: 165ºC / 265ºC
- Elongation at % of BS:
25% …. 3,5%
50% …. 7,9%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 24 | 1 | 3 | 405 | 40,5 | 27,2 | 8 770 | 19 333 | 86 |
| 26 | 1 1/32 | 3 1/4 | 439 | 43,9 | 29,5 | 9 483 | 20 907 | 93 |
| 28 | 1 1/8 | 3 1/2 | 473 | 47,3 | 31,8 | 10 197 | 22 481 | 100 |
| 30 | 1 1/4 | 3 3/4 | 543 | 54,3 | 36,5 | 10 809 | 23 829 | 106 |
| 32 | 1 5/16 | 4 | 614 | 61,4 | 41,3 | 12 237 | 26 977 | 120 |
| 36 | 1 1/2 | 4 1/2 | 760 | 76 | 51,1 | 15 092 | 33 271 | 148 |
| 40 | 1 5/8 | 5 | 950 | 95 | 63,8 | 18 865 | 41 589 | 185 |
| 44 | 1 3/4 | 5 1/2 | 1 175 | 117,5 | 79 | 22 638 | 49 907 | 222 |
| 48 | 2 | 6 | 1 364 | 136,4 | 91,7 | 26 003 | 57 326 | 255 |
| 52 | 2 1/8 | 6 1/2 | 1 600 | 160 | 107,5 | 30 082 | 66 318 | 295 |
| 56 | 2 1/4 | 7 | 1 850 | 185 | 124,3 | 34 467 | 75 984 | 338 |
| 60 | 2 1/2 | 7 1/2 | 2 120 | 212 | 142,5 | 39 157 | 86 326 | 384 |
| 64 | 2 5/8 | 8 | 2 420 | 242 | 162,6 | 44 154 | 97 341 | 433 |
| 68 | 2 3/4 | 8 1/2 | 2 732 | 273,2 | 183,6 | 49 456 | 109 031 | 485 |
| 72 | 2 7/8 | 9 | 3 060 | 306 | 205,6 | 52 618 | 116 000 | 516 |
| 80 | 3 1/4 | 10 | 3 780 | 378 | 254 | 63 631 | 140 279 | 624 |
| 88 | 3 5/8 | 11 | 4 570 | 457 | 307,1 | 76 173 | 167 930 | 747 |
| 96 | 4 | 12 | 5 450 | 545 | 366,2 | 89 429 | 197 155 | 877 |
| 104 | 4 1/4 | 13 | 6 400 | 640 | 430,1 | 102 278 | 225 480 | 1003 |
| 112 | 4 5/8 | 14 | 7 400 | 740 | 497,2 | 117 166 | 258 302 | 1149 |
| 120 | 5 | 15 | 8 500 | 850 | 571,2 | 133 277 | 293 821 | 1307 |
| 128 | 5 1/4 | 16 | 9 640 | 964 | 647,8 | 147 044 | 324 170 | 1442 |
| 136 | 5 1/2 | 17 | 10 930 | 1093 | 734,4 | 165 908 | 365 759 | 1627 |
