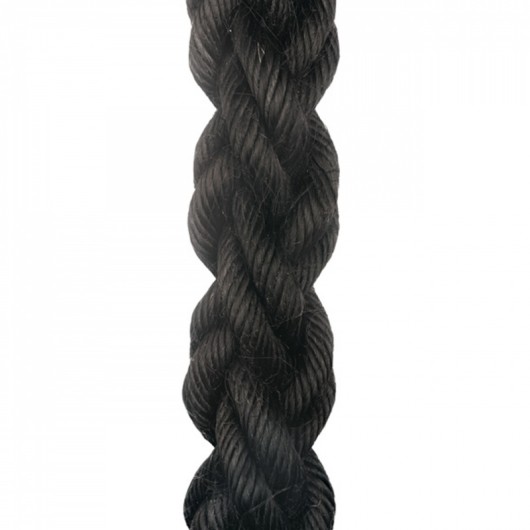

Berthing Rope 12 Strands
-
- Superb handling and touch
- Good abrasion and wear resistance
- Low water absorption
- Flexible, non kinking and non-rotating
-
- Raw Material: Spun Polypropylene / Polyester (HT)
- Specific Gravity: 1,16
- Melting Point: 165ºC / 265ºC
- Elongation at % of BS:
25% …. 3,5%
50% …. 7,9%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 340 34,0 22,8 9.920 21.869 97 26 1 1/32 3 1/4 405 40,5 27,2 11.610 25.595 114 28 1 1/8 3 1/2 470 47,0 31,6 13.300 29.321 130 30 1 1/4 3 3/4 540 54,0 36,3 15.205 33.521 149 32 1 5/16 4 610 61,0 41,0 17.110 37.720 168 34 1 11/32 4 1/4 685 68,5 46,0 19.075 42.052 187 36 1 1/2 4 1/2 760 76,0 51,1 21.040 46.384 206 38 1 9/16 4 3/4 855 85,5 57,5 23.720 52.293 233 40 1 5/8 5 950 95,0 63,8 26.400 58.201 259 44 1 3/4 5 1/2 1.150 115,0 77,3 30.960 68.254 304 48 2 6 1.360 136,0 91,4 36.500 80.467 358 52 2 1/8 6 1/2 1.600 160,0 107,5 42.620 93.959 418 56 2 1/4 7 1.850 185,0 124,3 48.720 107.407 478 60 2 1/2 7 1/2 2.120 212,0 142,5 54.280 119.665 532 64 2 5/8 8 2.420 242,0 162,6 63.110 139.131 619 68 2 3/4 8 1/2 2.740 274,0 184,1 70.850 156.195 695 72 2 7/8 9 3.060 306,0 205,6 78.590 173.258 771 More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative. We reserve the right to change them without prior notice. Tolerance in weights: ± 5%. Indicated breaking loads do not include any reduction in case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
- Mooring lines
- Anchor lines
- Raw Material: Spun Polypropylene / Polyester (HT)
- Specific Gravity: 1,16
- Melting Point: 165ºC / 265ºC
- Elongation at % of BS:
25% …. 3,5%
50% …. 7,9%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 340 | 34,0 | 22,8 | 9.920 | 21.869 | 97 |
| 26 | 1 1/32 | 3 1/4 | 405 | 40,5 | 27,2 | 11.610 | 25.595 | 114 |
| 28 | 1 1/8 | 3 1/2 | 470 | 47,0 | 31,6 | 13.300 | 29.321 | 130 |
| 30 | 1 1/4 | 3 3/4 | 540 | 54,0 | 36,3 | 15.205 | 33.521 | 149 |
| 32 | 1 5/16 | 4 | 610 | 61,0 | 41,0 | 17.110 | 37.720 | 168 |
| 34 | 1 11/32 | 4 1/4 | 685 | 68,5 | 46,0 | 19.075 | 42.052 | 187 |
| 36 | 1 1/2 | 4 1/2 | 760 | 76,0 | 51,1 | 21.040 | 46.384 | 206 |
| 38 | 1 9/16 | 4 3/4 | 855 | 85,5 | 57,5 | 23.720 | 52.293 | 233 |
| 40 | 1 5/8 | 5 | 950 | 95,0 | 63,8 | 26.400 | 58.201 | 259 |
| 44 | 1 3/4 | 5 1/2 | 1.150 | 115,0 | 77,3 | 30.960 | 68.254 | 304 |
| 48 | 2 | 6 | 1.360 | 136,0 | 91,4 | 36.500 | 80.467 | 358 |
| 52 | 2 1/8 | 6 1/2 | 1.600 | 160,0 | 107,5 | 42.620 | 93.959 | 418 |
| 56 | 2 1/4 | 7 | 1.850 | 185,0 | 124,3 | 48.720 | 107.407 | 478 |
| 60 | 2 1/2 | 7 1/2 | 2.120 | 212,0 | 142,5 | 54.280 | 119.665 | 532 |
| 64 | 2 5/8 | 8 | 2.420 | 242,0 | 162,6 | 63.110 | 139.131 | 619 |
| 68 | 2 3/4 | 8 1/2 | 2.740 | 274,0 | 184,1 | 70.850 | 156.195 | 695 |
| 72 | 2 7/8 | 9 | 3.060 | 306,0 | 205,6 | 78.590 | 173.258 | 771 |
More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative. We reserve the right to change them without prior notice. Tolerance in weights: ± 5%. Indicated breaking loads do not include any reduction in case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
