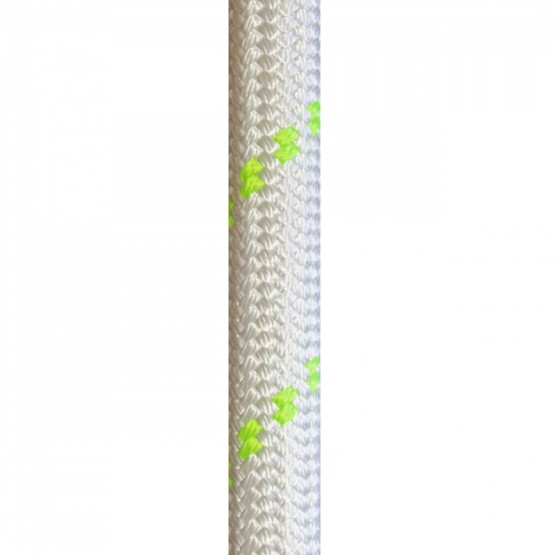

SuperTow
-
- Excellent ratio between diameter, weigh and breaking load
- Excellent abrasion resistance
- Excellent UV resistance
- Lower elongation
- Lower operational costs
- CS3 Splice
-
- Raw Material: Polyester (HT)
- Specific Gravity: 1,38
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 4,9%
Diameter SizeCirc. Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 399 39,9 26,8 19.942 43.964 196 26 1 1/32 3 1/4 496 49,6 33,3 24.765 54.597 243 28 1 1/8 3 1/2 616 61,6 41,4 30.750 67.791 302 30 1 1/4 3 3/4 691 69,1 46,4 35.315 77.855 346 32 1 5/16 4 765 76,5 51,4 39.880 87.919 391 36 1 1/2 4 1/2 950 95 63,8 49.775 109.733 488 40 1 5/8 5 1.310 131 88 60.270 132.870 591 42 1 11/16 5 5/16 1.400 140 94,1 68.000 149.913 667 44 1 3/4 5 1/2 1.470 147 98,8 72.264 159.312 708 48 2 6 1.750 175 117,6 84.858 187.076 832 52 2 1/8 6 1/2 1.890 189 127 98.551 217.263 966 56 2 1/4 7 2.270 227 152,5 112.644 248.333 1.104 60 2 1/2 7 1/2 2.560 256 172 128.036 282.266 1.255 64 2 5/8 8 2.840 284 190,8 143.728 316.861 1.409 68 2 3/4 8 1/2 3.070 307 206,3 160.820 354.540 1.577 72 2 7/8 9 3.670 367 246,6 177.711 391.779 1.742 76 3 9 1/2 3.900 390 262,1 195.802 431.662 1.920 80 3 1/4 10 4.170 417 280,2 213.993 471.766 2.098 88 3 5/8 11 4.930 493 331,3 254.773 561.668 2.498 96 4 12 5.600 560 376,3 297.801 656.523 2.920 104 4 1/4 13 6.620 662 444,8 349.925 771.439 3.431 112 4 5/8 14 7.880 788 529,5 413.393 911.361 4.053 More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative. We reserve the right to change them without prior notice. Tolerance in weights: ± 5%. Indicated breaking loads do not include any reduction in case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
- Mooring lines
- Winch lines
- Towing and Tug Lines
- Raw Material: Polyester (HT)
- Specific Gravity: 1,38
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 4,9%
| Diameter SizeCirc. | Weight | Breaking Load | ||||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 399 | 39,9 | 26,8 | 19.942 | 43.964 | 196 |
| 26 | 1 1/32 | 3 1/4 | 496 | 49,6 | 33,3 | 24.765 | 54.597 | 243 |
| 28 | 1 1/8 | 3 1/2 | 616 | 61,6 | 41,4 | 30.750 | 67.791 | 302 |
| 30 | 1 1/4 | 3 3/4 | 691 | 69,1 | 46,4 | 35.315 | 77.855 | 346 |
| 32 | 1 5/16 | 4 | 765 | 76,5 | 51,4 | 39.880 | 87.919 | 391 |
| 36 | 1 1/2 | 4 1/2 | 950 | 95 | 63,8 | 49.775 | 109.733 | 488 |
| 40 | 1 5/8 | 5 | 1.310 | 131 | 88 | 60.270 | 132.870 | 591 |
| 42 | 1 11/16 | 5 5/16 | 1.400 | 140 | 94,1 | 68.000 | 149.913 | 667 |
| 44 | 1 3/4 | 5 1/2 | 1.470 | 147 | 98,8 | 72.264 | 159.312 | 708 |
| 48 | 2 | 6 | 1.750 | 175 | 117,6 | 84.858 | 187.076 | 832 |
| 52 | 2 1/8 | 6 1/2 | 1.890 | 189 | 127 | 98.551 | 217.263 | 966 |
| 56 | 2 1/4 | 7 | 2.270 | 227 | 152,5 | 112.644 | 248.333 | 1.104 |
| 60 | 2 1/2 | 7 1/2 | 2.560 | 256 | 172 | 128.036 | 282.266 | 1.255 |
| 64 | 2 5/8 | 8 | 2.840 | 284 | 190,8 | 143.728 | 316.861 | 1.409 |
| 68 | 2 3/4 | 8 1/2 | 3.070 | 307 | 206,3 | 160.820 | 354.540 | 1.577 |
| 72 | 2 7/8 | 9 | 3.670 | 367 | 246,6 | 177.711 | 391.779 | 1.742 |
| 76 | 3 | 9 1/2 | 3.900 | 390 | 262,1 | 195.802 | 431.662 | 1.920 |
| 80 | 3 1/4 | 10 | 4.170 | 417 | 280,2 | 213.993 | 471.766 | 2.098 |
| 88 | 3 5/8 | 11 | 4.930 | 493 | 331,3 | 254.773 | 561.668 | 2.498 |
| 96 | 4 | 12 | 5.600 | 560 | 376,3 | 297.801 | 656.523 | 2.920 |
| 104 | 4 1/4 | 13 | 6.620 | 662 | 444,8 | 349.925 | 771.439 | 3.431 |
| 112 | 4 5/8 | 14 | 7.880 | 788 | 529,5 | 413.393 | 911.361 | 4.053 |
More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative. We reserve the right to change them without prior notice. Tolerance in weights: ± 5%. Indicated breaking loads do not include any reduction in case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
