Stripe Line

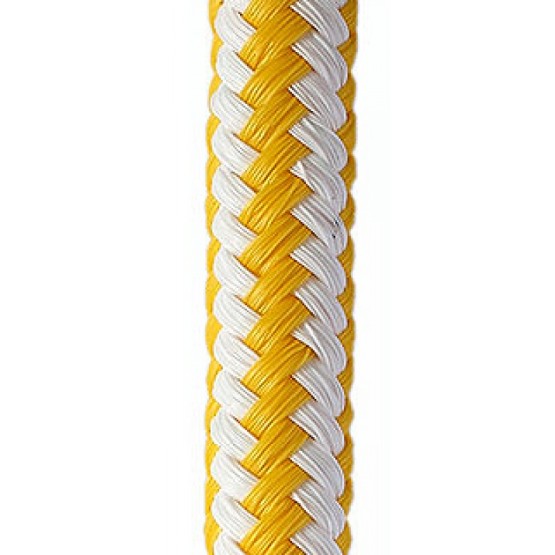

A double braided rope that has a polyamide core for high tenacity and a polyethylene outer cover that protects it and gives it firmness. This rope used in the front meshes of mid water trawls production is fabricated in 4 different colours that when applied to the trawl defines its correct position, making shoot and handling on board easier.
-
- High Tenacity Polyamide Core
- Leaded and Unleaded
-
Diam. Weight Runnage Breaking Load mm gr/m Kg/100m m/Kg kgf lbf kN BLUE, GREEN, RED or YELLOW STRIPE (UNLEADED) 8 46,2 4,6 21,6 1 100 2 425 11 10 79,5 8 12,6 1 900 4 189 18,6 12 97,2 9,7 10,3 2 300 5 071 22,6 14 127 12,7 7,9 3 000 6 614 29,4 16 166,5 16,7 6 3 900 8 598 38,2 GREEN and RED STRIPES (LEADED) 10 79,5 8 12,6 1 900 4 189 18,6 12 119,5 12 8,4 2 300 5 071 22,6 14 158 15,8 6,3 3 000 6 614 29,4 16 197,5 19,8 5 3 900 8 598 38,2 YELLOW STRIPE W/LEAD (LEADED) 10 110,5 11,1 9 1 900 4 189 18,6 12 132,2 13,2 7,6 2 300 5 071 22,6 14 174,5 17,5 5,7 3 000 6 614 29,4 16 214 21,4 4,7 3 900 8 598 38,2
Tolerance in weights: ± 5%
The technicals characteristics stated are the result of a Cotesi development and are stricly indicative.
We reserve the right to change them without prior notice.
Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations.
- Production of Mid-Water Trawls
| Diam. | Weight | Runnage | Breaking Load | |||
| mm | gr/m | Kg/100m | m/Kg | kgf | lbf | kN |
| BLUE, GREEN, RED or YELLOW STRIPE (UNLEADED) | ||||||
| 8 | 46,2 | 4,6 | 21,6 | 1 100 | 2 425 | 11 |
| 10 | 79,5 | 8 | 12,6 | 1 900 | 4 189 | 18,6 |
| 12 | 97,2 | 9,7 | 10,3 | 2 300 | 5 071 | 22,6 |
| 14 | 127 | 12,7 | 7,9 | 3 000 | 6 614 | 29,4 |
| 16 | 166,5 | 16,7 | 6 | 3 900 | 8 598 | 38,2 |
| GREEN and RED STRIPES (LEADED) | ||||||
| 10 | 79,5 | 8 | 12,6 | 1 900 | 4 189 | 18,6 |
| 12 | 119,5 | 12 | 8,4 | 2 300 | 5 071 | 22,6 |
| 14 | 158 | 15,8 | 6,3 | 3 000 | 6 614 | 29,4 |
| 16 | 197,5 | 19,8 | 5 | 3 900 | 8 598 | 38,2 |
| YELLOW STRIPE W/LEAD (LEADED) | ||||||
| 10 | 110,5 | 11,1 | 9 | 1 900 | 4 189 | 18,6 |
| 12 | 132,2 | 13,2 | 7,6 | 2 300 | 5 071 | 22,6 |
| 14 | 174,5 | 17,5 | 5,7 | 3 000 | 6 614 | 29,4 |
| 16 | 214 | 21,4 | 4,7 | 3 900 | 8 598 | 38,2 |
Tolerance in weights: ± 5%
The technicals characteristics stated are the result of a Cotesi development and are stricly indicative.
We reserve the right to change them without prior notice.
Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations.
