Soft Shackle by Cotesi

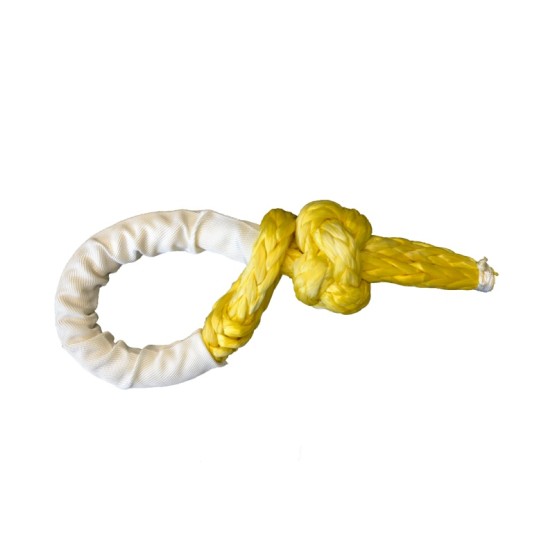

The Soft Shackle is designed be a safe, lightweight and easy-to-use device, being a good replacement for steel shackles in tug applications. It is made from HMWPE fibres and protected by an impregnation that improves its overall performance. This Soft Shackle forms a closed loop with an easy open eye and a stopper knot.
-
D-Tech 12 Soft Shackle Diameter Weight Single Rope BL L1 L2 L3 mm Kg/100m kgf kN Ton kN Ton kN Ton kN D-Tech with PET cover 20 23,2 38 749 380 58,1 570 85,3 836 131,8 1 292 22 28,1 45 887 450 68,9 675 101 990 156,1 1 530 24 33,1 53 025 520 79,6 780 116,7 1 144 180,3 1 768 26 38,4 61 183 600 91,8 900 134,6 1 320 208,1 2 040 28 44,5 69 341 680 104 1 020 152,6 1 496 235,8 2 312 30 50,6 78 518 770 117,8 1 155 172,8 1 694 267 2 618 32 57,5 88 716 870 133,1 1 305 195,2 1 914 301,7 2 958 Aprox. Lenght Closed (mm): 500
Stated breaking loads are theorectical subject to a variation of +/- 10%
Recommended D/d ratio 3,5:1
- Mooring lines
- Anchor line
- Winch lines
- Towing and Tug ropes
| D-Tech 12 Soft Shackle | Diameter | Weight | Single Rope BL | L1 | L2 | L3 | ||||
| mm | Kg/100m | kgf | kN | Ton | kN | Ton | kN | Ton | kN | |
| D-Tech with PET cover | 20 | 23,2 | 38 749 | 380 | 58,1 | 570 | 85,3 | 836 | 131,8 | 1 292 |
| 22 | 28,1 | 45 887 | 450 | 68,9 | 675 | 101 | 990 | 156,1 | 1 530 | |
| 24 | 33,1 | 53 025 | 520 | 79,6 | 780 | 116,7 | 1 144 | 180,3 | 1 768 | |
| 26 | 38,4 | 61 183 | 600 | 91,8 | 900 | 134,6 | 1 320 | 208,1 | 2 040 | |
| 28 | 44,5 | 69 341 | 680 | 104 | 1 020 | 152,6 | 1 496 | 235,8 | 2 312 | |
| 30 | 50,6 | 78 518 | 770 | 117,8 | 1 155 | 172,8 | 1 694 | 267 | 2 618 | |
| 32 | 57,5 | 88 716 | 870 | 133,1 | 1 305 | 195,2 | 1 914 | 301,7 | 2 958 | |
Aprox. Lenght Closed (mm): 500
Stated breaking loads are theorectical subject to a variation of +/- 10%
Recommended D/d ratio 3,5:1
