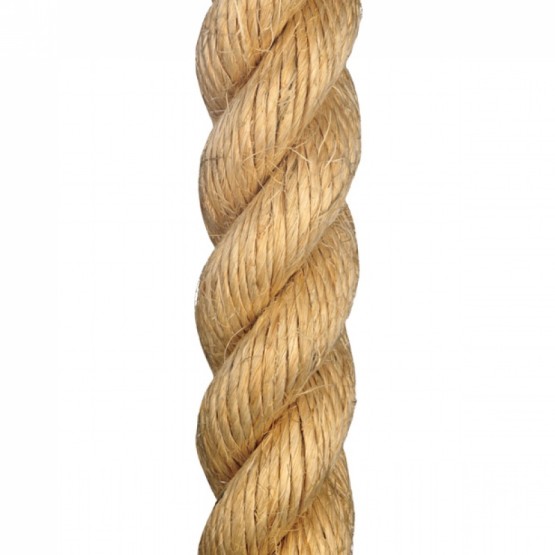

Sisal Ropes
Traditional ropes made from a blend of selected natural fibers, with good abrasion resistance and low elongation. These are biodegradable and non-polluting, making them excellent for classic old fashion ships. A special colour treatment can be applied upon request to match natural colour of manila fiber.
-
- Low elongation
- Bio degradable, non polluting
- Do not slip
- Good UV resistance
-
- Raw material: Sisal
- Specific Gravity: 1,38
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 4%
50% …. 7%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 4 5/32 1/2 15 1,5 1 153 337 1,5 5 3/16 5/8 17,3 1,7 1,2 186 409 1,8 6 1/4 3/4 24,9 2,5 1,7 263 580 2,6 8 5/16 1 44,4 4,4 3 459 1 012 4,5 10 3/8 1 1/4 69,3 6,9 4,7 707 1 558 6,9 12 1/2 1 1/2 99,8 10 6,7 1 005 2 217 9,9 14 9/16 1 3/4 136 13,6 9,1 1 356 2 990 13,3 16 5/8 2 177 17,7 11,9 1 754 3 867 17,2 18 3/4 2 1/4 225 22,5 15,1 2 203 4 856 21,6 20 13/16 2 1/2 277 27,7 18,6 2 702 5 957 26,5 22 7/8 2 3/4 335 33,5 22,5 3 253 7 171 31,9 24 1 3 399 39,9 26,8 3 855 8 498 37,8 26 1 1/32 3 1/4 468 46,8 31,4 4 507 9 936 44,2 28 1 1/8 3 1/2 543 54,3 36,5 5 201 11 465 51 30 1 1/4 3 3/4 624 62,4 41,9 5 945 13 106 58,3 32 1 5/16 4 710 71 47,7 6 730 14 837 66 34 1 11/32 4 1/4 804 80,4 54 7 546 16 636 74 36 1 1/2 4 1/2 898 89,8 60,3 8 453 18 636 82,9 38 1 9/16 4 3/4 1 004 100,4 67,5 9 381 20 682 92 40 1 5/8 5 1 110 111 74,6 10 401 22 930 102 44 1 3/4 5 1/2 1 340 134 90 12 441 27 426 122 48 2 6 1 600 160 107,5 14 786 32 597 145 52 2 1/8 6 1/2 1 870 187 125,7 17 233 37 992 169 56 2 1/4 7 2 170 217 145,8 19 885 43 837 195 60 2 1/2 7 1/2 2 490 249 167,3 22 740 50 132 223 64 2 5/8 8 2 840 284 190,8 25 799 56 876 253 68 2 3/4 8 1/2 3 200 320 215 28 960 63 845 284 72 2 7/8 9 3 590 359 241,2 32 325 71 264 317 80 3 1/4 10 4 440 444 298,3 39 667 87 450 389 90 3 9/16 11 1/8 5 160 516 346,7 45 887 101 163 450
In accordance to ISO 1181:2004. More diameters available by demand.
Above breaking loads are for 3 strands ropes. 4 strands ropes are approximately 10% lower.
- Classic Vessels
- Tie-up lines
- Raw material: Sisal
- Specific Gravity: 1,38
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 4%
50% …. 7%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 4 | 5/32 | 1/2 | 15 | 1,5 | 1 | 153 | 337 | 1,5 |
| 5 | 3/16 | 5/8 | 17,3 | 1,7 | 1,2 | 186 | 409 | 1,8 |
| 6 | 1/4 | 3/4 | 24,9 | 2,5 | 1,7 | 263 | 580 | 2,6 |
| 8 | 5/16 | 1 | 44,4 | 4,4 | 3 | 459 | 1 012 | 4,5 |
| 10 | 3/8 | 1 1/4 | 69,3 | 6,9 | 4,7 | 707 | 1 558 | 6,9 |
| 12 | 1/2 | 1 1/2 | 99,8 | 10 | 6,7 | 1 005 | 2 217 | 9,9 |
| 14 | 9/16 | 1 3/4 | 136 | 13,6 | 9,1 | 1 356 | 2 990 | 13,3 |
| 16 | 5/8 | 2 | 177 | 17,7 | 11,9 | 1 754 | 3 867 | 17,2 |
| 18 | 3/4 | 2 1/4 | 225 | 22,5 | 15,1 | 2 203 | 4 856 | 21,6 |
| 20 | 13/16 | 2 1/2 | 277 | 27,7 | 18,6 | 2 702 | 5 957 | 26,5 |
| 22 | 7/8 | 2 3/4 | 335 | 33,5 | 22,5 | 3 253 | 7 171 | 31,9 |
| 24 | 1 | 3 | 399 | 39,9 | 26,8 | 3 855 | 8 498 | 37,8 |
| 26 | 1 1/32 | 3 1/4 | 468 | 46,8 | 31,4 | 4 507 | 9 936 | 44,2 |
| 28 | 1 1/8 | 3 1/2 | 543 | 54,3 | 36,5 | 5 201 | 11 465 | 51 |
| 30 | 1 1/4 | 3 3/4 | 624 | 62,4 | 41,9 | 5 945 | 13 106 | 58,3 |
| 32 | 1 5/16 | 4 | 710 | 71 | 47,7 | 6 730 | 14 837 | 66 |
| 34 | 1 11/32 | 4 1/4 | 804 | 80,4 | 54 | 7 546 | 16 636 | 74 |
| 36 | 1 1/2 | 4 1/2 | 898 | 89,8 | 60,3 | 8 453 | 18 636 | 82,9 |
| 38 | 1 9/16 | 4 3/4 | 1 004 | 100,4 | 67,5 | 9 381 | 20 682 | 92 |
| 40 | 1 5/8 | 5 | 1 110 | 111 | 74,6 | 10 401 | 22 930 | 102 |
| 44 | 1 3/4 | 5 1/2 | 1 340 | 134 | 90 | 12 441 | 27 426 | 122 |
| 48 | 2 | 6 | 1 600 | 160 | 107,5 | 14 786 | 32 597 | 145 |
| 52 | 2 1/8 | 6 1/2 | 1 870 | 187 | 125,7 | 17 233 | 37 992 | 169 |
| 56 | 2 1/4 | 7 | 2 170 | 217 | 145,8 | 19 885 | 43 837 | 195 |
| 60 | 2 1/2 | 7 1/2 | 2 490 | 249 | 167,3 | 22 740 | 50 132 | 223 |
| 64 | 2 5/8 | 8 | 2 840 | 284 | 190,8 | 25 799 | 56 876 | 253 |
| 68 | 2 3/4 | 8 1/2 | 3 200 | 320 | 215 | 28 960 | 63 845 | 284 |
| 72 | 2 7/8 | 9 | 3 590 | 359 | 241,2 | 32 325 | 71 264 | 317 |
| 80 | 3 1/4 | 10 | 4 440 | 444 | 298,3 | 39 667 | 87 450 | 389 |
| 90 | 3 9/16 | 11 1/8 | 5 160 | 516 | 346,7 | 45 887 | 101 163 | 450 |
In accordance to ISO 1181:2004. More diameters available by demand.
Above breaking loads are for 3 strands ropes. 4 strands ropes are approximately 10% lower.
