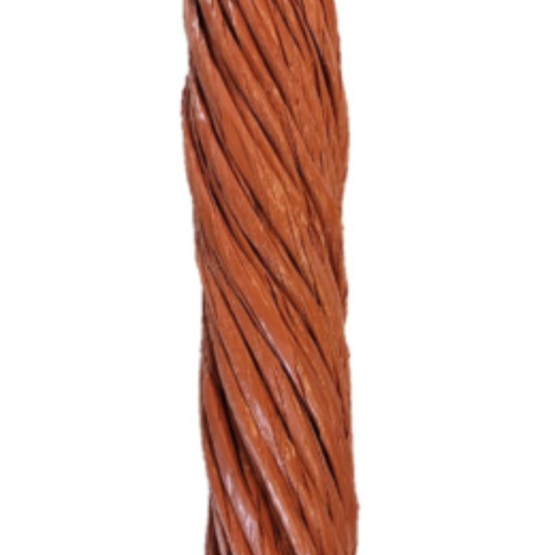

Single Strand (Dolly Rope)
COTESI PE single strand rope, common know in the market as “Dolly Rope”, has been developed for cod end protection. The use of these ropes is especially recommended in bottom trawling. It is available in HDPE monofilament and in HTPP Film.
-
- Good abrasion and wear resistance
-
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Kg/ 100m lbs/ 100ft kgf lbf kN 12 1/2 1 1/2 8,5 5,7 1.540 3.395 15,1 14 9/16 1 3/4 9,0 6,4 2.100 4.630 20,6 16 5/8 2 12,0 8,1 2.600 5.732 25,5 18 3/4 2 1/4 14,5 9,7 3.100 6.834 30,4 20 13/16 2 1/2 18,0 12,1 3.850 8.488 37,7 Tolerance on weights and resistance: ± 5%
Specific Gravity: 0,95
Melting Point: 150ºC
- Cod and protection
| Diameter | Size Circ. | Weight | Breaking Load | ||||
| mm | Inches | Inches | Kg/ 100m | lbs/ 100ft | kgf | lbf | kN |
| 12 | 1/2 | 1 1/2 | 8,5 | 5,7 | 1.540 | 3.395 | 15,1 |
| 14 | 9/16 | 1 3/4 | 9,0 | 6,4 | 2.100 | 4.630 | 20,6 |
| 16 | 5/8 | 2 | 12,0 | 8,1 | 2.600 | 5.732 | 25,5 |
| 18 | 3/4 | 2 1/4 | 14,5 | 9,7 | 3.100 | 6.834 | 30,4 |
| 20 | 13/16 | 2 1/2 | 18,0 | 12,1 | 3.850 | 8.488 | 37,7 |
Tolerance on weights and resistance: ± 5%
Specific Gravity: 0,95
Melting Point: 150ºC
