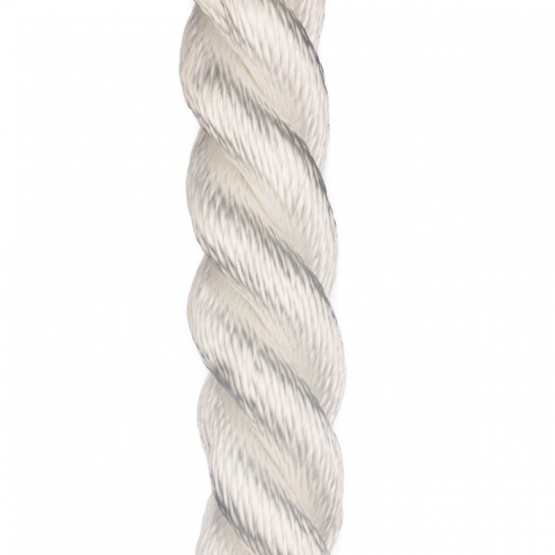

Polyester 3 Strands
The smoothness and high tenacity characteristics of polyester are empowered by a construction enhancing its excellent abrasion and high heat resistance, creating a durable high tenacity rope with low elongation and excellent fatigue life. Polyester ropes do not absorb water, so they neither harden or lose strength when wet. Available in 12 strands, 8 strands, 4 strands and 3 strands.
-
- High heat and abrasion resistance
- High strength and low working elongation
- Excellent UV resistance
- Smooth and flexible
-
-
- Raw material: Polyester (HT)
- Specific Gravity: 1,38 (sinks)
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 5,0%
50% …. 8,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 4 5/32 3 12,1 1,2 0,8 286 629 2,8 5 3/16 3 1/4 19 1,9 1,3 435 960 4,3 6 1/4 3/4 27,3 2,7 1,8 612 1 349 6 8 5/16 1 48,5 4,9 3,3 1 081 2 383 10,6 10 3/8 1 1/4 75,8 7,6 5,1 1 632 3 597 16 12 1/2 1 1/2 109 10,9 7,3 2 284 5 036 22,4 14 9/16 1 3/4 149 14,9 10 3 059 6 744 30 16 5/8 2 194 19,4 13 4 079 8 992 40 18 3/4 2 1/4 246 24,6 16,5 5 099 11 240 50 20 13/16 2 1/2 303 30,3 20,4 6 118 13 488 60 22 7/8 2 3/4 367 36,7 24,7 7 240 15 961 71 24 1 3 437 43,7 29,4 8 668 19 109 85 26 1 1/32 3 1/4 512 51,2 34,4 10 197 22 481 100 28 1 1/8 3 1/2 594 59,4 39,9 12 033 26 527 118 30 1 1/4 3 3/4 682 68,2 45,8 13 460 29 674 132 32 1 5/16 4 776 77,6 52,1 15 296 33 721 150 36 1 1/2 4 1/2 982 98,2 66 19 375 42 713 190 40 1 5/8 5 1 210 121 81,3 24 065 53 054 236 44 1 3/4 5 1/2 1 470 147 98,8 28 552 62 946 280 48 2 6 1 750 175 118 34 161 75 310 335 52 2 1/8 6 1/2 2 050 205 138 38 240 84 302 375 56 2 1/4 7 2 380 238 160 43 338 95 543 425 60 2 1/2 7 1/2 2 730 273 183 50 986 112 403 500 64 2 5/8 8 3 100 310 208 57 104 125 891 560 68 2 3/4 8 1/2 3 515 352 236 64 752 142 752 635 72 2 7/8 9 3 930 393 264 72 400 159 612 710 80 3 1/4 10 4 850 485 326 86 676 191 085 850 90 3 4/7 11 1/8 6 150 615 413 112 934 248 973 1 108 In accordance to ISO 1141:2021. More diameters available by demand.
Above breaking loads are for 3 strand ropes. On 4 strand ropes, breaking loads are approximately 10% lower
- Tie-up and Mooring lines
- Anchor lines
- Deck lines
-
- Raw material: Polyester (HT)
- Specific Gravity: 1,38 (sinks)
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 5,0%
50% …. 8,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 4 | 5/32 | 3 | 12,1 | 1,2 | 0,8 | 286 | 629 | 2,8 |
| 5 | 3/16 | 3 1/4 | 19 | 1,9 | 1,3 | 435 | 960 | 4,3 |
| 6 | 1/4 | 3/4 | 27,3 | 2,7 | 1,8 | 612 | 1 349 | 6 |
| 8 | 5/16 | 1 | 48,5 | 4,9 | 3,3 | 1 081 | 2 383 | 10,6 |
| 10 | 3/8 | 1 1/4 | 75,8 | 7,6 | 5,1 | 1 632 | 3 597 | 16 |
| 12 | 1/2 | 1 1/2 | 109 | 10,9 | 7,3 | 2 284 | 5 036 | 22,4 |
| 14 | 9/16 | 1 3/4 | 149 | 14,9 | 10 | 3 059 | 6 744 | 30 |
| 16 | 5/8 | 2 | 194 | 19,4 | 13 | 4 079 | 8 992 | 40 |
| 18 | 3/4 | 2 1/4 | 246 | 24,6 | 16,5 | 5 099 | 11 240 | 50 |
| 20 | 13/16 | 2 1/2 | 303 | 30,3 | 20,4 | 6 118 | 13 488 | 60 |
| 22 | 7/8 | 2 3/4 | 367 | 36,7 | 24,7 | 7 240 | 15 961 | 71 |
| 24 | 1 | 3 | 437 | 43,7 | 29,4 | 8 668 | 19 109 | 85 |
| 26 | 1 1/32 | 3 1/4 | 512 | 51,2 | 34,4 | 10 197 | 22 481 | 100 |
| 28 | 1 1/8 | 3 1/2 | 594 | 59,4 | 39,9 | 12 033 | 26 527 | 118 |
| 30 | 1 1/4 | 3 3/4 | 682 | 68,2 | 45,8 | 13 460 | 29 674 | 132 |
| 32 | 1 5/16 | 4 | 776 | 77,6 | 52,1 | 15 296 | 33 721 | 150 |
| 36 | 1 1/2 | 4 1/2 | 982 | 98,2 | 66 | 19 375 | 42 713 | 190 |
| 40 | 1 5/8 | 5 | 1 210 | 121 | 81,3 | 24 065 | 53 054 | 236 |
| 44 | 1 3/4 | 5 1/2 | 1 470 | 147 | 98,8 | 28 552 | 62 946 | 280 |
| 48 | 2 | 6 | 1 750 | 175 | 118 | 34 161 | 75 310 | 335 |
| 52 | 2 1/8 | 6 1/2 | 2 050 | 205 | 138 | 38 240 | 84 302 | 375 |
| 56 | 2 1/4 | 7 | 2 380 | 238 | 160 | 43 338 | 95 543 | 425 |
| 60 | 2 1/2 | 7 1/2 | 2 730 | 273 | 183 | 50 986 | 112 403 | 500 |
| 64 | 2 5/8 | 8 | 3 100 | 310 | 208 | 57 104 | 125 891 | 560 |
| 68 | 2 3/4 | 8 1/2 | 3 515 | 352 | 236 | 64 752 | 142 752 | 635 |
| 72 | 2 7/8 | 9 | 3 930 | 393 | 264 | 72 400 | 159 612 | 710 |
| 80 | 3 1/4 | 10 | 4 850 | 485 | 326 | 86 676 | 191 085 | 850 |
| 90 | 3 4/7 | 11 1/8 | 6 150 | 615 | 413 | 112 934 | 248 973 | 1 108 |
In accordance to ISO 1141:2021. More diameters available by demand.
Above breaking loads are for 3 strand ropes. On 4 strand ropes, breaking loads are approximately 10% lower
