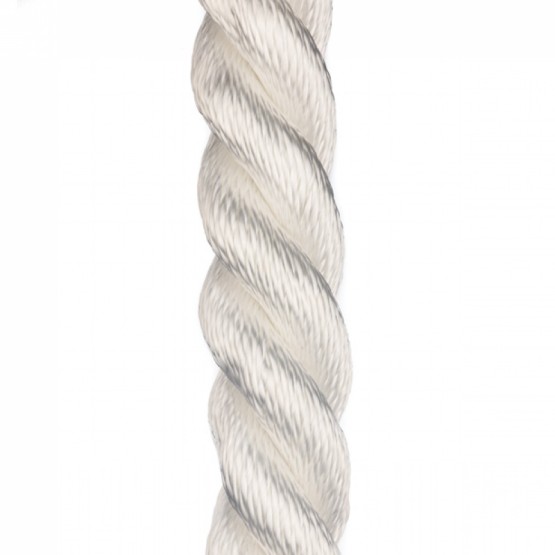

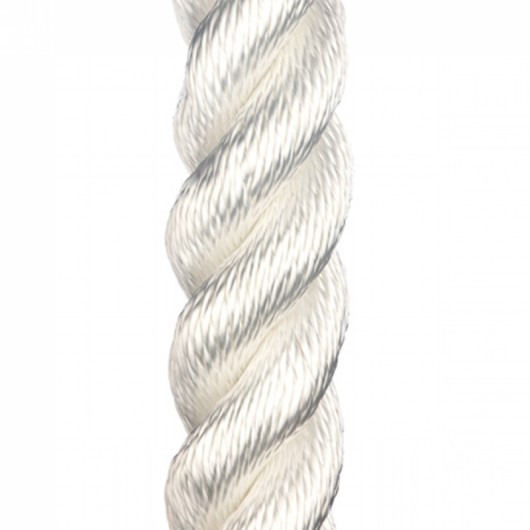

Polyester
The smoothness and high tenacity characteristics of polyester are empowered by a construction enhancing its excellent abrasion and high heat resistance, creating a durable high tenacity rope with low elongation and excellent fatigue life. Polyester ropes do not absorb water, so they neither harden or lose strength when wet. Also available in 12 strands and 8 strands.
-
- High heat and abrasion resistance
- High strength and low working elongation
- Excellent UV resistance
- Smooth and flexible
-
-
- Raw material: Polyester (HT)
- Specific Gravity: 1,38 (sinks)
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 4,0%
50% …. 8,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 6 1/4 3/4 27,3 2,7 1,8 612 1 349 6 8 5/16 1 48,5 4,9 3,3 1 081 2 383 10,6 10 3/8 1 1/4 75,8 7,6 5,1 1 632 3 597 16 12 1/2 1 1/2 109 10,9 7,3 2 284 5 036 22,4 14 9/16 1 3/4 149 14,9 10 3 059 6 744 30 16 5/8 2 194 19,4 13 4 079 8 992 40 18 3/4 2 1/4 246 24,6 16,5 5 099 11 240 50 20 13/16 2 1/2 303 30,3 20,4 6 118 13 488 60 22 7/8 2 3/4 367 36,7 24,7 7 240 15 961 71 24 1 3 437 43,7 29,4 8 668 19 109 85 26 1 1/32 3 1/4 512 51,2 34,4 10 197 22 481 100 28 1 1/8 3 1/2 594 59,4 39,9 12 033 26 527 118 30 1 1/4 3 3/4 682 68,2 45,8 13 460 29 674 132 32 1 5/16 4 776 77,6 52,1 15 296 33 721 150 36 1 1/2 4 1/2 982 98,2 66 19 375 42 713 190 40 1 5/8 5 1 210 121 81,3 24 065 53 054 236 44 1 3/4 5 1/2 1 470 147 98,8 28 552 62 946 280 48 2 6 1 750 175 118 34 161 75 310 335 52 2 1/8 6 1/2 2 050 205 138 38 240 84 302 375 56 2 1/4 7 2 380 238 160 43 338 95 543 425 60 2 1/2 7 1/2 2 730 273 183 50 986 112 403 500 64 2 5/8 8 3 100 310 208 57 104 125 891 560 68 2 3/4 8 1/2 3 515 352 236 64 752 142 752 635 72 2 7/8 9 3 930 393 264 72 400 159 612 710 80 3 1/4 10 4 850 485 326 86 676 191 085 850 90 3 4/7 11 1/8 6 150 615 413 112 934 248 973 1 108
In accordance to ISO 1141:2021. More diameters available by demand.
Above breaking loads are for 3 strand ropes. On 4 strand ropes, breaking loads are approximately 10% lower.
- Tie-up and Mooring lines
- Anchor lines
- Deck lines
-
- Raw material: Polyester (HT)
- Specific Gravity: 1,38 (sinks)
- Melting Point: 265ºC
- Elongation at % of BS:
25% …. 4,0%
50% …. 8,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 6 | 1/4 | 3/4 | 27,3 | 2,7 | 1,8 | 612 | 1 349 | 6 |
| 8 | 5/16 | 1 | 48,5 | 4,9 | 3,3 | 1 081 | 2 383 | 10,6 |
| 10 | 3/8 | 1 1/4 | 75,8 | 7,6 | 5,1 | 1 632 | 3 597 | 16 |
| 12 | 1/2 | 1 1/2 | 109 | 10,9 | 7,3 | 2 284 | 5 036 | 22,4 |
| 14 | 9/16 | 1 3/4 | 149 | 14,9 | 10 | 3 059 | 6 744 | 30 |
| 16 | 5/8 | 2 | 194 | 19,4 | 13 | 4 079 | 8 992 | 40 |
| 18 | 3/4 | 2 1/4 | 246 | 24,6 | 16,5 | 5 099 | 11 240 | 50 |
| 20 | 13/16 | 2 1/2 | 303 | 30,3 | 20,4 | 6 118 | 13 488 | 60 |
| 22 | 7/8 | 2 3/4 | 367 | 36,7 | 24,7 | 7 240 | 15 961 | 71 |
| 24 | 1 | 3 | 437 | 43,7 | 29,4 | 8 668 | 19 109 | 85 |
| 26 | 1 1/32 | 3 1/4 | 512 | 51,2 | 34,4 | 10 197 | 22 481 | 100 |
| 28 | 1 1/8 | 3 1/2 | 594 | 59,4 | 39,9 | 12 033 | 26 527 | 118 |
| 30 | 1 1/4 | 3 3/4 | 682 | 68,2 | 45,8 | 13 460 | 29 674 | 132 |
| 32 | 1 5/16 | 4 | 776 | 77,6 | 52,1 | 15 296 | 33 721 | 150 |
| 36 | 1 1/2 | 4 1/2 | 982 | 98,2 | 66 | 19 375 | 42 713 | 190 |
| 40 | 1 5/8 | 5 | 1 210 | 121 | 81,3 | 24 065 | 53 054 | 236 |
| 44 | 1 3/4 | 5 1/2 | 1 470 | 147 | 98,8 | 28 552 | 62 946 | 280 |
| 48 | 2 | 6 | 1 750 | 175 | 118 | 34 161 | 75 310 | 335 |
| 52 | 2 1/8 | 6 1/2 | 2 050 | 205 | 138 | 38 240 | 84 302 | 375 |
| 56 | 2 1/4 | 7 | 2 380 | 238 | 160 | 43 338 | 95 543 | 425 |
| 60 | 2 1/2 | 7 1/2 | 2 730 | 273 | 183 | 50 986 | 112 403 | 500 |
| 64 | 2 5/8 | 8 | 3 100 | 310 | 208 | 57 104 | 125 891 | 560 |
| 68 | 2 3/4 | 8 1/2 | 3 515 | 352 | 236 | 64 752 | 142 752 | 635 |
| 72 | 2 7/8 | 9 | 3 930 | 393 | 264 | 72 400 | 159 612 | 710 |
| 80 | 3 1/4 | 10 | 4 850 | 485 | 326 | 86 676 | 191 085 | 850 |
| 90 | 3 4/7 | 11 1/8 | 6 150 | 615 | 413 | 112 934 | 248 973 | 1 108 |
In accordance to ISO 1141:2021. More diameters available by demand.
Above breaking loads are for 3 strand ropes. On 4 strand ropes, breaking loads are approximately 10% lower.
