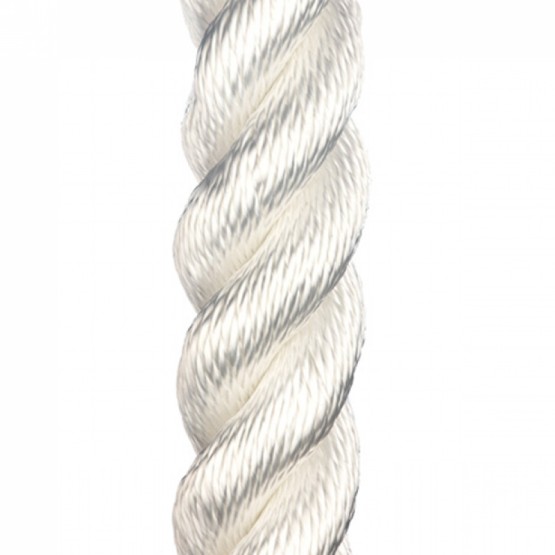

Polyamide 3 Strands
Polyamide ropes provides high breaking strengths while its high elongation works as an excellent energy absorber. Its very good abrasion and heat resistance are enhanced by a twisted balanced construction, even in wet conditions, while the quality of fibers insure a perfect twist and lay tension reducing natural shrinkage in use. Available in 12 strand, 8 strand, 4 strand and 3 strand.
-
- Good abrasion and wear resistance even in wet conditions
- Excellent shock mitigation
- Good UV resistance
- Flexible and smooth construction
-
-
- Raw material: Polyamide
- Specific Gravity: 1,14 (sinks)
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 12,5%
50% …. 20,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 4 5/32 3 9,87 1 0,7 377 832 3,7 5 3/16 3 1/4 15,4 1,5 1 575 1 268 5,6 6 1/4 3/4 22,2 2,2 1,5 816 1 798 8 8 5/16 1 39,5 4 2,7 1 428 3 147 14 10 3/8 1 1/4 61,7 6,2 4,1 2 162 4 766 21,2 12 1/2 1 1/2 88,8 8,9 6 3 059 6 744 30 14 9/16 1 3/4 121 12,1 8,1 4 079 8 992 40 16 5/8 2 158 15,8 10,6 5 099 11 240 50 18 3/4 2 1/4 200 20 13,4 6 424 14 163 63 20 13/16 2 1/2 247 24,7 16,6 8 158 17 984 80 22 7/8 2 3/4 299 29,9 20,1 9 687 21 357 95 24 1 3 355 35,5 23,9 11 421 25 178 112 26 1 1/32 3 1/4 417 41,7 28 12 747 28 101 125 28 1 1/8 3 1/2 484 48,4 32,5 15 296 33 721 150 30 1 1/4 3 3/4 555 55,5 37,3 17 335 38 217 170 32 1 5/16 4 632 63,2 42,5 19 375 42 713 190 36 1 1/2 4 1/2 800 80 53,8 24 065 53 054 236 40 1 5/8 5 987 98,7 66,3 30 592 67 442 300 44 1 3/4 5 1/2 1 190 119 80 36 200 79 806 355 48 2 6 1 420 142 95,4 40 789 89 922 400 52 2 1/8 6 1/2 1 670 167 112,2 48 437 106 783 475 56 2 1/4 7 1 930 193 129,7 57 104 125 891 560 60 2 1/2 7 1/2 2 220 222 149,2 64 242 141 628 630 64 2 5/8 8 2 530 253 170 72 400 159 612 710 68 2 3/4 8 1/2 2 865 287 193 82 087 180 969 805 72 2 7/8 9 3 200 320 215 91 775 202 325 900 80 3 1/4 10 3 950 395 265,4 108 090 238 294 1060 90 3 4/7 11 1/8 5 008 501 336,5 139 192 306 860 1 365 In accordance to ISO 1140:2021. More diameters available by demand.
Above breaking loads are for 3 strand ropes. On 4 strand ropes, breaking loads are approximately 10% lower.
- Mooring lines
- Anchor lines
- Shock lines
- Deck lines
-
- Raw material: Polyamide
- Specific Gravity: 1,14 (sinks)
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 12,5%
50% …. 20,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 4 | 5/32 | 3 | 9,87 | 1 | 0,7 | 377 | 832 | 3,7 |
| 5 | 3/16 | 3 1/4 | 15,4 | 1,5 | 1 | 575 | 1 268 | 5,6 |
| 6 | 1/4 | 3/4 | 22,2 | 2,2 | 1,5 | 816 | 1 798 | 8 |
| 8 | 5/16 | 1 | 39,5 | 4 | 2,7 | 1 428 | 3 147 | 14 |
| 10 | 3/8 | 1 1/4 | 61,7 | 6,2 | 4,1 | 2 162 | 4 766 | 21,2 |
| 12 | 1/2 | 1 1/2 | 88,8 | 8,9 | 6 | 3 059 | 6 744 | 30 |
| 14 | 9/16 | 1 3/4 | 121 | 12,1 | 8,1 | 4 079 | 8 992 | 40 |
| 16 | 5/8 | 2 | 158 | 15,8 | 10,6 | 5 099 | 11 240 | 50 |
| 18 | 3/4 | 2 1/4 | 200 | 20 | 13,4 | 6 424 | 14 163 | 63 |
| 20 | 13/16 | 2 1/2 | 247 | 24,7 | 16,6 | 8 158 | 17 984 | 80 |
| 22 | 7/8 | 2 3/4 | 299 | 29,9 | 20,1 | 9 687 | 21 357 | 95 |
| 24 | 1 | 3 | 355 | 35,5 | 23,9 | 11 421 | 25 178 | 112 |
| 26 | 1 1/32 | 3 1/4 | 417 | 41,7 | 28 | 12 747 | 28 101 | 125 |
| 28 | 1 1/8 | 3 1/2 | 484 | 48,4 | 32,5 | 15 296 | 33 721 | 150 |
| 30 | 1 1/4 | 3 3/4 | 555 | 55,5 | 37,3 | 17 335 | 38 217 | 170 |
| 32 | 1 5/16 | 4 | 632 | 63,2 | 42,5 | 19 375 | 42 713 | 190 |
| 36 | 1 1/2 | 4 1/2 | 800 | 80 | 53,8 | 24 065 | 53 054 | 236 |
| 40 | 1 5/8 | 5 | 987 | 98,7 | 66,3 | 30 592 | 67 442 | 300 |
| 44 | 1 3/4 | 5 1/2 | 1 190 | 119 | 80 | 36 200 | 79 806 | 355 |
| 48 | 2 | 6 | 1 420 | 142 | 95,4 | 40 789 | 89 922 | 400 |
| 52 | 2 1/8 | 6 1/2 | 1 670 | 167 | 112,2 | 48 437 | 106 783 | 475 |
| 56 | 2 1/4 | 7 | 1 930 | 193 | 129,7 | 57 104 | 125 891 | 560 |
| 60 | 2 1/2 | 7 1/2 | 2 220 | 222 | 149,2 | 64 242 | 141 628 | 630 |
| 64 | 2 5/8 | 8 | 2 530 | 253 | 170 | 72 400 | 159 612 | 710 |
| 68 | 2 3/4 | 8 1/2 | 2 865 | 287 | 193 | 82 087 | 180 969 | 805 |
| 72 | 2 7/8 | 9 | 3 200 | 320 | 215 | 91 775 | 202 325 | 900 |
| 80 | 3 1/4 | 10 | 3 950 | 395 | 265,4 | 108 090 | 238 294 | 1060 |
| 90 | 3 4/7 | 11 1/8 | 5 008 | 501 | 336,5 | 139 192 | 306 860 | 1 365 |
In accordance to ISO 1140:2021. More diameters available by demand.
Above breaking loads are for 3 strand ropes. On 4 strand ropes, breaking loads are approximately 10% lower.
