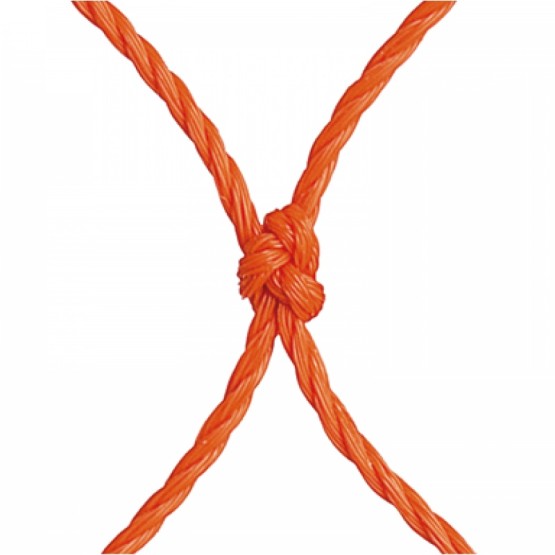

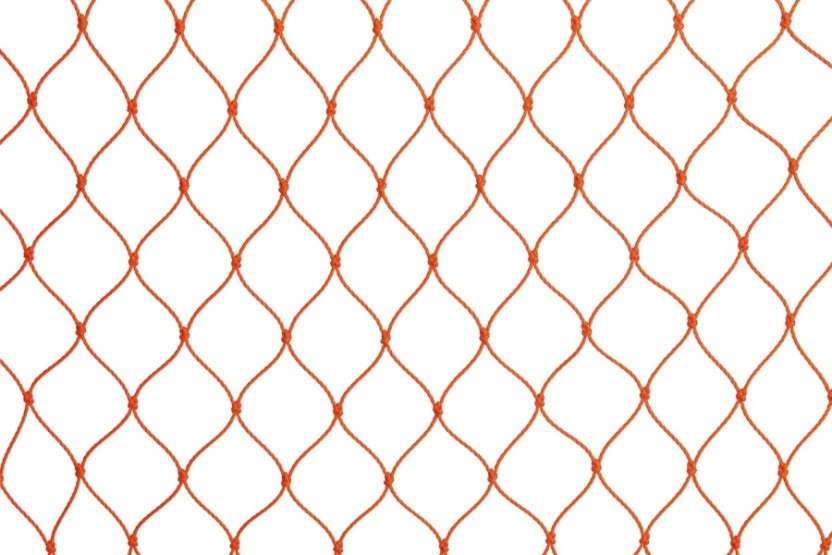

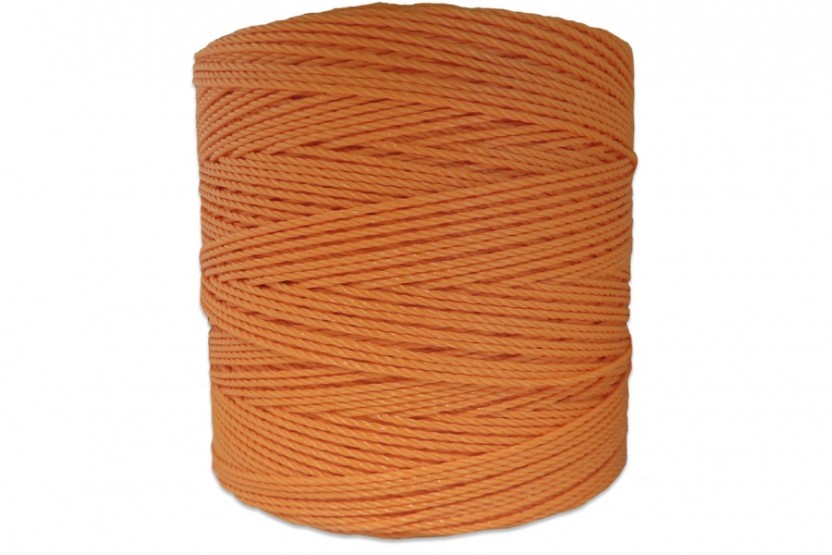

PE Twisted
-
- Twisted construction
- High-density Polyethylene
- Lightweight
- Good abrasion resistance
- Thermo-stabilized for dimensional uniformity and stability of the meshes
-
Ref.ª Runnage Knot Resistance # mm m/kg ft/lb tol. kgf tol. 12 1,3 1320 1964 ± 5%
17 ± 10 %
15 1,4 1025 1525 20 18 1,5 850 1265 28 21 1,6 745 1109 32 24 1,8 642 955 37 27 1,9 570 848 42 30 2,0 518 771 45 33 2,1 470 699 49 36 2,2 430 640 54 39 2,3 395 588 58 42 2,4 368 548 63 45 2,5 340 506 68 50 3,0 295 439 81 54 3,2 242 360 99 60 3,4 216 321 110 70 3,8 195 290 118 90 4,0 140 208 164
The above figures are for guidance purposes only, Cotesi cannot be held liable for deviations.
We reserve the right to change them without prior notice.
| Ref.ª | Runnage | Knot Resistance | ||||
| # | mm | m/kg | ft/lb | tol. | kgf | tol. |
| 12 | 1,3 | 1320 | 1964 | ± 5% | 17 | ± 10 % |
| 15 | 1,4 | 1025 | 1525 | 20 | ||
| 18 | 1,5 | 850 | 1265 | 28 | ||
| 21 | 1,6 | 745 | 1109 | 32 | ||
| 24 | 1,8 | 642 | 955 | 37 | ||
| 27 | 1,9 | 570 | 848 | 42 | ||
| 30 | 2,0 | 518 | 771 | 45 | ||
| 33 | 2,1 | 470 | 699 | 49 | ||
| 36 | 2,2 | 430 | 640 | 54 | ||
| 39 | 2,3 | 395 | 588 | 58 | ||
| 42 | 2,4 | 368 | 548 | 63 | ||
| 45 | 2,5 | 340 | 506 | 68 | ||
| 50 | 3,0 | 295 | 439 | 81 | ||
| 54 | 3,2 | 242 | 360 | 99 | ||
| 60 | 3,4 | 216 | 321 | 110 | ||
| 70 | 3,8 | 195 | 290 | 118 | ||
| 90 | 4,0 | 140 | 208 | 164 | ||
The above figures are for guidance purposes only, Cotesi cannot be held liable for deviations.
We reserve the right to change them without prior notice.
