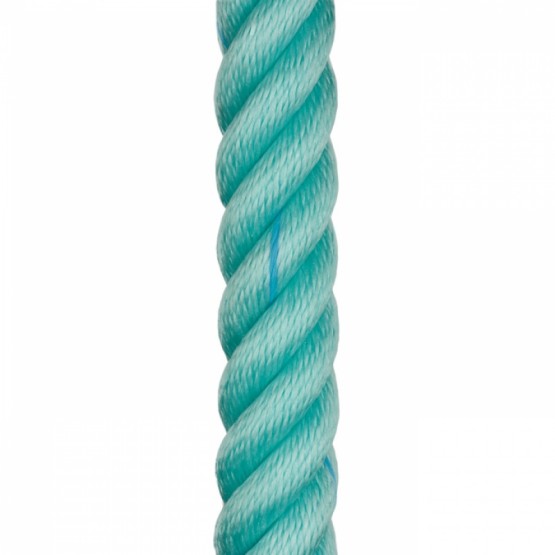

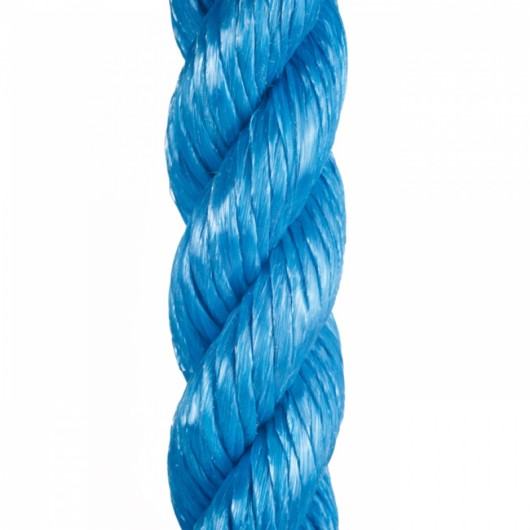

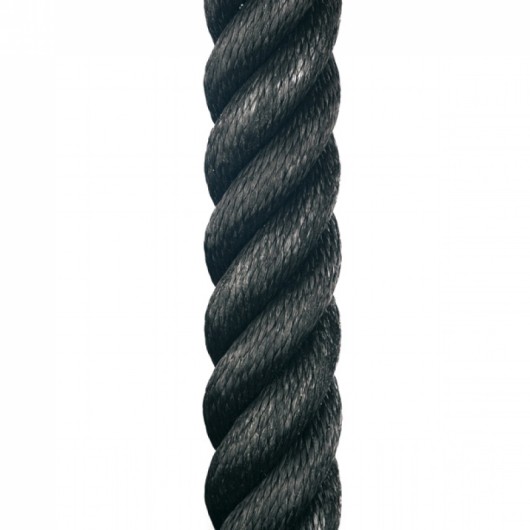

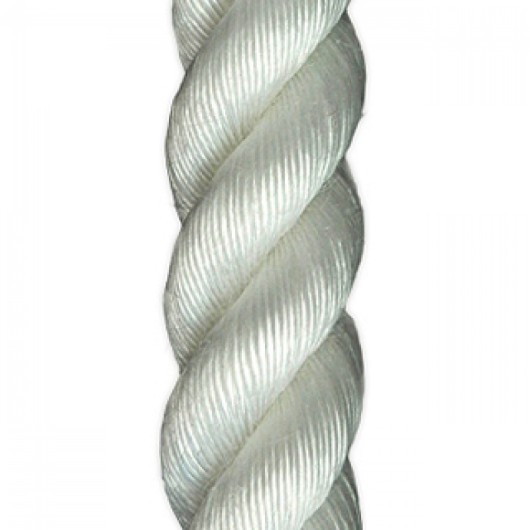

PE Mono 3/4 Strands
Made from high tenacity polyethylene, this monofilaments plaited rope is lightweight, with good abrasion resistance and long-wearing life. With fine resistance against UV lights, it has good elongation and high creep.
-
- Good abrasion and wear resistance
- Good UV resistance
- Good elongation and high creep
- Floating, no water absorption
-
- Raw material: Polyethylene Monofilament (HT)
- Specific Gravity: 0,95
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 10%
50% …. 16%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/ 100m lbs/ 100ft kgf lbf kN 6 1/4 3 1/2 18 1,8 1,2 418 922 4 8 5/16 3 3/4 32 3,2 2,2 725 1.598 7 10 3/8 4 50 5 3,4 1.111 2.450 11 12 1/2 4 1/2 72 7,2 4,8 1.581 3.484 15 14 9/16 5 98 9,8 6,6 2.131 4.698 21 16 5/8 5 1/2 128 12,8 8,6 2.753 6.070 27 18 3/4 6 162 16,2 10,9 3.447 7.598 34 20 13/16 3 200 20 13,4 4.211 9.284 41 22 7/8 3 1/4 242 24,2 16,3 5.078 11.195 50 24 1 3 289 28,9 19,4 5.996 13.219 59 26 1 1/32 3 1/4 339 33,9 22,8 6.975 15.377 68 28 1 1/8 3 1/2 393 39,3 26,4 8.076 17.805 79 30 1 1/4 3 3/4 451 45,1 30,3 9.208 20.300 90 32 1 5/16 4 513 51,3 34,5 10.401 22.930 102 36 1 1/2 4 1/2 649 64,9 43,6 13.052 28.775 128 40 1 5/8 5 802 80,2 53,9 16.010 35.295 157 44 1 3/4 5 1/2 970 97 65,2 19.171 42.264 188 More diameters available by demand.
In accordance to ISO 1969:2004.
- Barge tie-up lines
- Tug lines
- Deck lines
- Raw material: Polyethylene Monofilament (HT)
- Specific Gravity: 0,95
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 10%
50% …. 16%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/ 100m | lbs/ 100ft | kgf | lbf | kN |
| 6 | 1/4 | 3 1/2 | 18 | 1,8 | 1,2 | 418 | 922 | 4 |
| 8 | 5/16 | 3 3/4 | 32 | 3,2 | 2,2 | 725 | 1.598 | 7 |
| 10 | 3/8 | 4 | 50 | 5 | 3,4 | 1.111 | 2.450 | 11 |
| 12 | 1/2 | 4 1/2 | 72 | 7,2 | 4,8 | 1.581 | 3.484 | 15 |
| 14 | 9/16 | 5 | 98 | 9,8 | 6,6 | 2.131 | 4.698 | 21 |
| 16 | 5/8 | 5 1/2 | 128 | 12,8 | 8,6 | 2.753 | 6.070 | 27 |
| 18 | 3/4 | 6 | 162 | 16,2 | 10,9 | 3.447 | 7.598 | 34 |
| 20 | 13/16 | 3 | 200 | 20 | 13,4 | 4.211 | 9.284 | 41 |
| 22 | 7/8 | 3 1/4 | 242 | 24,2 | 16,3 | 5.078 | 11.195 | 50 |
| 24 | 1 | 3 | 289 | 28,9 | 19,4 | 5.996 | 13.219 | 59 |
| 26 | 1 1/32 | 3 1/4 | 339 | 33,9 | 22,8 | 6.975 | 15.377 | 68 |
| 28 | 1 1/8 | 3 1/2 | 393 | 39,3 | 26,4 | 8.076 | 17.805 | 79 |
| 30 | 1 1/4 | 3 3/4 | 451 | 45,1 | 30,3 | 9.208 | 20.300 | 90 |
| 32 | 1 5/16 | 4 | 513 | 51,3 | 34,5 | 10.401 | 22.930 | 102 |
| 36 | 1 1/2 | 4 1/2 | 649 | 64,9 | 43,6 | 13.052 | 28.775 | 128 |
| 40 | 1 5/8 | 5 | 802 | 80,2 | 53,9 | 16.010 | 35.295 | 157 |
| 44 | 1 3/4 | 5 1/2 | 970 | 97 | 65,2 | 19.171 | 42.264 | 188 |
More diameters available by demand.
In accordance to ISO 1969:2004.
