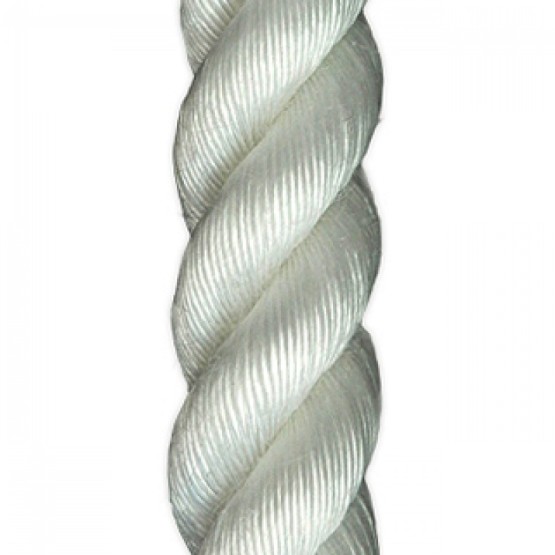

Movspun 3/4Strands
The appearance and construction of old ropes made from natural fibres, with the strength, abrasion and wear resistance of synthetic materials. This polypropylene floating line has a smooth and fine touch and its hairy surface enhances wear resistance to this light weight rope, very easy to handle and easy to splice.
-
- Smoothness and exceptional touch
- Good abrasion and wear resistance
- Floating, no water absorption
- Good UV resistance
- Flexible, non kinking and non rotating
-
- Raw Material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 6%
50% …. 11,5%
Diameter SizeCirc. Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 6 1/4 3/4 16,3 1,6 1,1 604 1.331 5,9 8 5/16 1 28,9 2,9 1,9 1.030 2.271 10,1 10 3/8 1 1/4 45,2 4,5 3 1.570 3.462 15,4 12 1/2 1 1/2 65,1 6,5 4,4 2.203 4.856 21,6 14 9/16 1 3/4 88,6 8,9 6 2.947 6.497 28,9 16 5/8 2 116 11,6 7,8 3.773 8.318 37 18 3/4 2 1/4 146 14,6 9,8 4.711 10.386 46,2 20 13/16 2 1/2 181 18,1 12,2 5.721 12.612 56,1 22 7/8 2 3/4 219 21,9 14,7 6.842 15.084 67,1 24 1 3 260 26 17,5 8.035 17.715 78,8 26 1 1/32 3 1/4 306 30,6 20,6 9.330 20.570 91,5 28 1 1/8 3 1/2 354 35,4 23,8 10.707 23.605 105 30 1 1/4 3 3/4 407 40,7 27,3 12.135 26.752 119 32 1 5/16 4 463 46,3 31,1 13.664 30.124 134 34 1 11/32 4 1/4 525 52,5 35,3 15.398 33.946 151 36 1 1/2 4 1/2 586 58,6 39,4 17.029 37.543 167 38 1 9/16 4 3/4 656 65,6 44,1 21.822 48.108 214 40 1 5/8 5 725 72,5 48,7 23.861 52.605 234 44 1 3/4 5 1/2 877 87,7 58,9 28.246 62.271 277 48 2 6 1.040 104 69,9 33.141 73.062 325 52 2 1/8 6 1/2 1.220 122 82 38.341 84.527 376 56 2 1/4 7 1.420 142 95,4 43.746 96.442 429 60 2 1/2 7 1/2 1.630 163 109,5 49.558 109.256 486 64 2 5/8 8 1.860 186 125 55.473 122.294 544 68 2 3/4 8 1/2 2.100 210 141,1 62.101 136.907 609 72 2 7/8 9 2.350 235 157,9 69.035 152.194 677 80 3 1/4 10 2.900 290 194,9 83.413 183.891 818 90 3 9/16 11 1/8 3.750 375 252 107.886 237.845 1.058 More diameters available by demand.
In accordance to ISO 10572:2009.
- Mooring lines
- Towing lines
- Raw Material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 6%
50% …. 11,5%
| Diameter SizeCirc. | Weight | Breaking Load | ||||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 6 | 1/4 | 3/4 | 16,3 | 1,6 | 1,1 | 604 | 1.331 | 5,9 |
| 8 | 5/16 | 1 | 28,9 | 2,9 | 1,9 | 1.030 | 2.271 | 10,1 |
| 10 | 3/8 | 1 1/4 | 45,2 | 4,5 | 3 | 1.570 | 3.462 | 15,4 |
| 12 | 1/2 | 1 1/2 | 65,1 | 6,5 | 4,4 | 2.203 | 4.856 | 21,6 |
| 14 | 9/16 | 1 3/4 | 88,6 | 8,9 | 6 | 2.947 | 6.497 | 28,9 |
| 16 | 5/8 | 2 | 116 | 11,6 | 7,8 | 3.773 | 8.318 | 37 |
| 18 | 3/4 | 2 1/4 | 146 | 14,6 | 9,8 | 4.711 | 10.386 | 46,2 |
| 20 | 13/16 | 2 1/2 | 181 | 18,1 | 12,2 | 5.721 | 12.612 | 56,1 |
| 22 | 7/8 | 2 3/4 | 219 | 21,9 | 14,7 | 6.842 | 15.084 | 67,1 |
| 24 | 1 | 3 | 260 | 26 | 17,5 | 8.035 | 17.715 | 78,8 |
| 26 | 1 1/32 | 3 1/4 | 306 | 30,6 | 20,6 | 9.330 | 20.570 | 91,5 |
| 28 | 1 1/8 | 3 1/2 | 354 | 35,4 | 23,8 | 10.707 | 23.605 | 105 |
| 30 | 1 1/4 | 3 3/4 | 407 | 40,7 | 27,3 | 12.135 | 26.752 | 119 |
| 32 | 1 5/16 | 4 | 463 | 46,3 | 31,1 | 13.664 | 30.124 | 134 |
| 34 | 1 11/32 | 4 1/4 | 525 | 52,5 | 35,3 | 15.398 | 33.946 | 151 |
| 36 | 1 1/2 | 4 1/2 | 586 | 58,6 | 39,4 | 17.029 | 37.543 | 167 |
| 38 | 1 9/16 | 4 3/4 | 656 | 65,6 | 44,1 | 21.822 | 48.108 | 214 |
| 40 | 1 5/8 | 5 | 725 | 72,5 | 48,7 | 23.861 | 52.605 | 234 |
| 44 | 1 3/4 | 5 1/2 | 877 | 87,7 | 58,9 | 28.246 | 62.271 | 277 |
| 48 | 2 | 6 | 1.040 | 104 | 69,9 | 33.141 | 73.062 | 325 |
| 52 | 2 1/8 | 6 1/2 | 1.220 | 122 | 82 | 38.341 | 84.527 | 376 |
| 56 | 2 1/4 | 7 | 1.420 | 142 | 95,4 | 43.746 | 96.442 | 429 |
| 60 | 2 1/2 | 7 1/2 | 1.630 | 163 | 109,5 | 49.558 | 109.256 | 486 |
| 64 | 2 5/8 | 8 | 1.860 | 186 | 125 | 55.473 | 122.294 | 544 |
| 68 | 2 3/4 | 8 1/2 | 2.100 | 210 | 141,1 | 62.101 | 136.907 | 609 |
| 72 | 2 7/8 | 9 | 2.350 | 235 | 157,9 | 69.035 | 152.194 | 677 |
| 80 | 3 1/4 | 10 | 2.900 | 290 | 194,9 | 83.413 | 183.891 | 818 |
| 90 | 3 9/16 | 11 1/8 | 3.750 | 375 | 252 | 107.886 | 237.845 | 1.058 |
More diameters available by demand.
In accordance to ISO 10572:2009.
