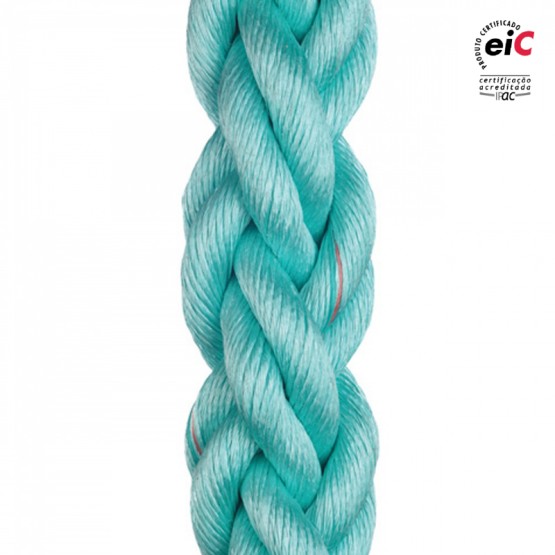

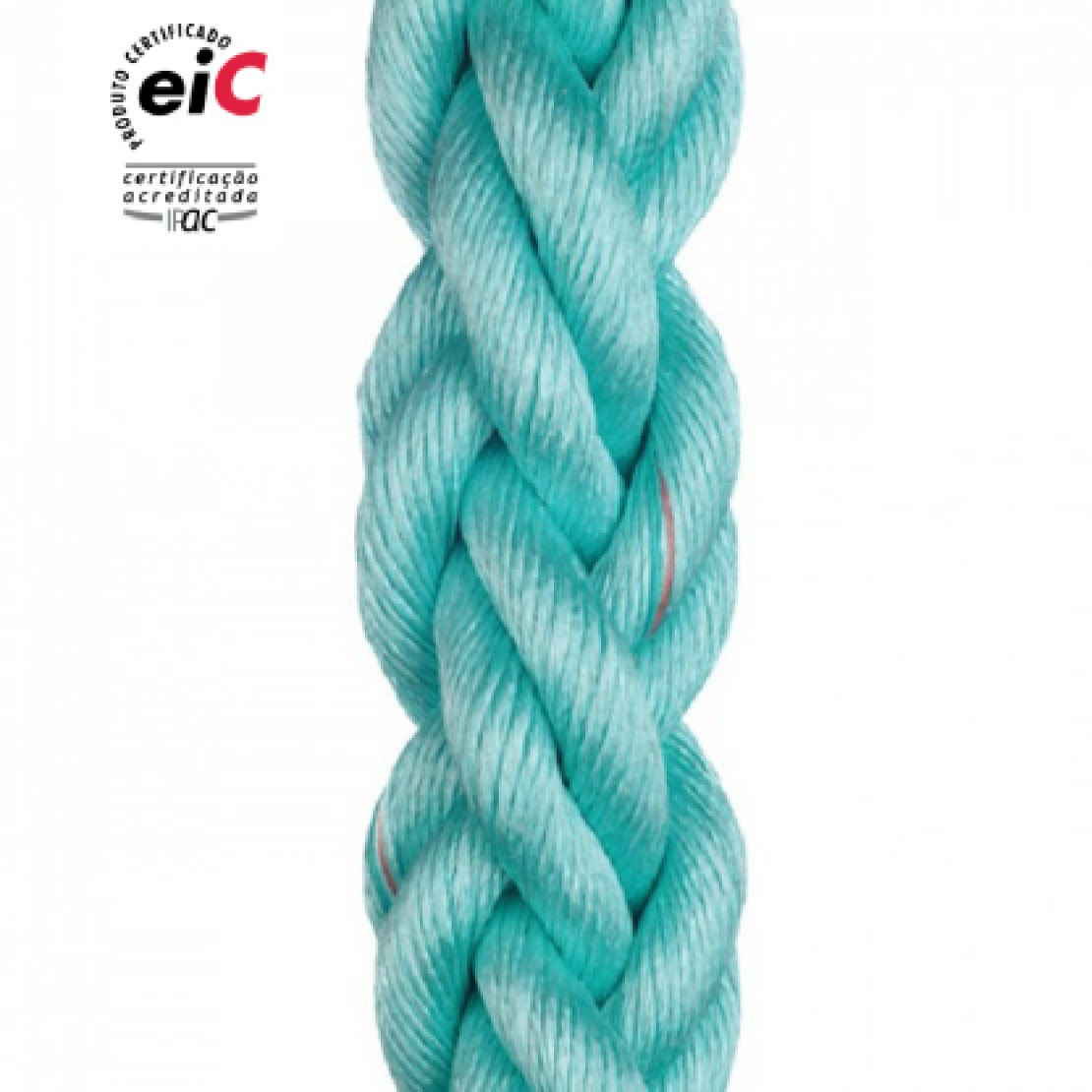

Movline Plus HBL 8 Strands
Movline Plus ropes are made from a high tenacity composite fiber extruded on a custom-built extrusion process. This extremely strong bi-polymer associated to an 8 strands plaited construction results on a rope with good wear resistance and exceptional gripping capabilities that are enhanced by the outer fuzzy surface developed in use which also protects the inner fibers against abrasion.
-
- High abrasion resistance
- High strength floating line
- No water absorption
- Good UV resistance
- Non kinking and non-rotating
-
- Raw Material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 5,5%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/ 100m lbs/ 100ft kgf lbf kN 24 1 3 288 28,8 19,4 13.400 29.541 131 26 11/32 31/4 341 34,1 22,9 15.600 34.392 153 28 11/8 31/2 394 39,4 26,5 17.800 39.242 175 30 11/4 33/4 453 45,3 30,4 20.250 44.643 199 32 15/16 4 511 51,1 34,3 22.700 50.044 223 36 11/2 41/2 641 64,1 43,1 28.300 62.390 278 40 1 5/8 5 791 79,1 53,2 34.900 76.940 342 44 1 3/4 5 1/2 977 97,7 65,7 41.700 91.931 409 48 2 6 1.145 114,5 76,9 48.900 107.804 480 52 2 1/8 6 1/2 1.340 134 90 56.500 124.559 554 56 2 1/4 7 1.560 156 104,8 64.900 143.078 636 More diameters available by demand.
- Mooring lines
- Anchor lines
- Tug and Towing lines
- Raw Material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 5,5%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/ 100m | lbs/ 100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 288 | 28,8 | 19,4 | 13.400 | 29.541 | 131 |
| 26 | 11/32 | 31/4 | 341 | 34,1 | 22,9 | 15.600 | 34.392 | 153 |
| 28 | 11/8 | 31/2 | 394 | 39,4 | 26,5 | 17.800 | 39.242 | 175 |
| 30 | 11/4 | 33/4 | 453 | 45,3 | 30,4 | 20.250 | 44.643 | 199 |
| 32 | 15/16 | 4 | 511 | 51,1 | 34,3 | 22.700 | 50.044 | 223 |
| 36 | 11/2 | 41/2 | 641 | 64,1 | 43,1 | 28.300 | 62.390 | 278 |
| 40 | 1 5/8 | 5 | 791 | 79,1 | 53,2 | 34.900 | 76.940 | 342 |
| 44 | 1 3/4 | 5 1/2 | 977 | 97,7 | 65,7 | 41.700 | 91.931 | 409 |
| 48 | 2 | 6 | 1.145 | 114,5 | 76,9 | 48.900 | 107.804 | 480 |
| 52 | 2 1/8 | 6 1/2 | 1.340 | 134 | 90 | 56.500 | 124.559 | 554 |
| 56 | 2 1/4 | 7 | 1.560 | 156 | 104,8 | 64.900 | 143.078 | 636 |
More diameters available by demand.
