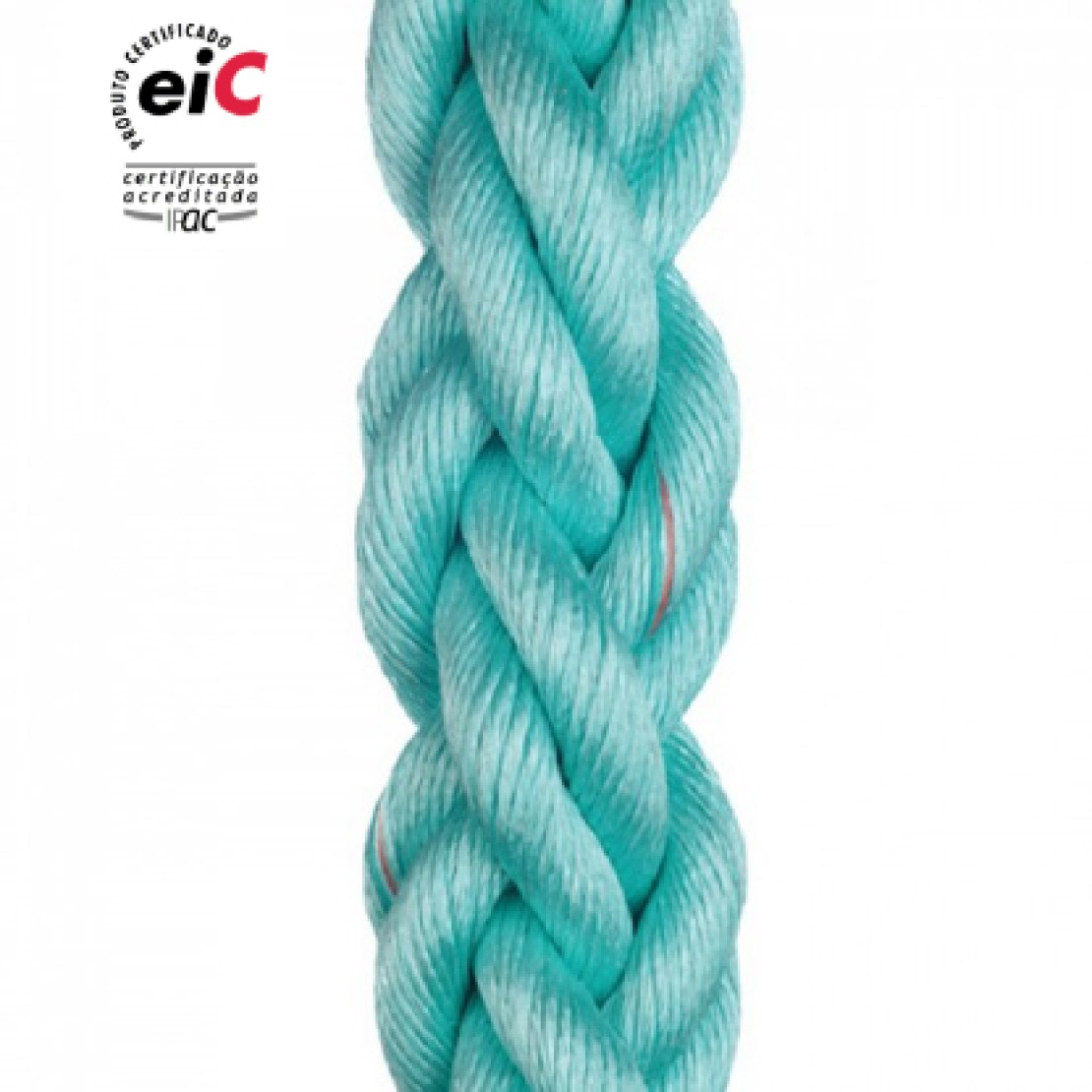

Movline Plus 8 Strands
Movline Plus ropes are made from a high tenacity composite fiber extruded on a custom-built extrusion process. This extremely strong bi-polymer associated to an 8 strands plaited construction results on a rope with good wear resistance and exceptional gripping capabilities that are enhanced by the outer fuzzy surface developed in use, which also protects the inner fibers against abrasion.
-
- High abrasion resistance
- High strength floating line
- No water absorption
- Good UV resistance
- Non kinking and non-rotating
-
- Raw Material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 5,5%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/ 100m lbs/ 100ft kgf lbf kN 24 1 3 261 26,1 17,5 10.605 23.380 104 26 1 1/32 3 1/4 306 30,6 20,6 12.339 27.202 121 28 1 1/8 3 1/2 355 35,5 23,9 14.174 31.248 139 30 1 1/4 3 3/4 408 40,8 27,4 16.112 35.519 158 32 1 5/16 4 464 46,4 31,2 18.253 40.240 179 36 1 1/2 4 1/2 587 58,7 39,4 22.842 50.357 224 40 1 5/8 5 725 72,5 48,7 27.940 61.597 274 44 1 3/4 5 1/2 877 87,7 58,9 33.345 73.512 327 48 2 6 1.040 104 69,9 39.259 86.550 385 52 2 1/8 6 1/2 1.220 122 82 45.683 100.713 448 56 2 1/4 7 1.420 142 95,4 52.414 115.550 514 60 2 1/2 7 1/2 1.630 163 109,5 59.450 131.062 583 64 2 5/8 8 1.860 186 125 66.996 147.698 657 68 2 3/4 8 1/2 2.100 210 141,1 75.153 165.682 737 72 2 7/8 9 2.350 235 157,9 83.617 184.341 820 80 3 1/4 10 2.900 290 194,9 101.462 223.682 995 88 3 5/8 11 3.510 351 235,9 121.347 267.519 1.190 96 4 12 4.170 417 280,2 142.761 314.728 1.400 104 4 1/4 13 4.900 490 329,3 165.195 364.186 1.620 More diameters available by demand.
In accordance to ISO 10579:2009.
- Mooring lines
- Anchor lines
- Tug and Towing lines
- Raw Material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 5,5%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/ 100m | lbs/ 100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 261 | 26,1 | 17,5 | 10.605 | 23.380 | 104 |
| 26 | 1 1/32 | 3 1/4 | 306 | 30,6 | 20,6 | 12.339 | 27.202 | 121 |
| 28 | 1 1/8 | 3 1/2 | 355 | 35,5 | 23,9 | 14.174 | 31.248 | 139 |
| 30 | 1 1/4 | 3 3/4 | 408 | 40,8 | 27,4 | 16.112 | 35.519 | 158 |
| 32 | 1 5/16 | 4 | 464 | 46,4 | 31,2 | 18.253 | 40.240 | 179 |
| 36 | 1 1/2 | 4 1/2 | 587 | 58,7 | 39,4 | 22.842 | 50.357 | 224 |
| 40 | 1 5/8 | 5 | 725 | 72,5 | 48,7 | 27.940 | 61.597 | 274 |
| 44 | 1 3/4 | 5 1/2 | 877 | 87,7 | 58,9 | 33.345 | 73.512 | 327 |
| 48 | 2 | 6 | 1.040 | 104 | 69,9 | 39.259 | 86.550 | 385 |
| 52 | 2 1/8 | 6 1/2 | 1.220 | 122 | 82 | 45.683 | 100.713 | 448 |
| 56 | 2 1/4 | 7 | 1.420 | 142 | 95,4 | 52.414 | 115.550 | 514 |
| 60 | 2 1/2 | 7 1/2 | 1.630 | 163 | 109,5 | 59.450 | 131.062 | 583 |
| 64 | 2 5/8 | 8 | 1.860 | 186 | 125 | 66.996 | 147.698 | 657 |
| 68 | 2 3/4 | 8 1/2 | 2.100 | 210 | 141,1 | 75.153 | 165.682 | 737 |
| 72 | 2 7/8 | 9 | 2.350 | 235 | 157,9 | 83.617 | 184.341 | 820 |
| 80 | 3 1/4 | 10 | 2.900 | 290 | 194,9 | 101.462 | 223.682 | 995 |
| 88 | 3 5/8 | 11 | 3.510 | 351 | 235,9 | 121.347 | 267.519 | 1.190 |
| 96 | 4 | 12 | 4.170 | 417 | 280,2 | 142.761 | 314.728 | 1.400 |
| 104 | 4 1/4 | 13 | 4.900 | 490 | 329,3 | 165.195 | 364.186 | 1.620 |
More diameters available by demand.
In accordance to ISO 10579:2009.
