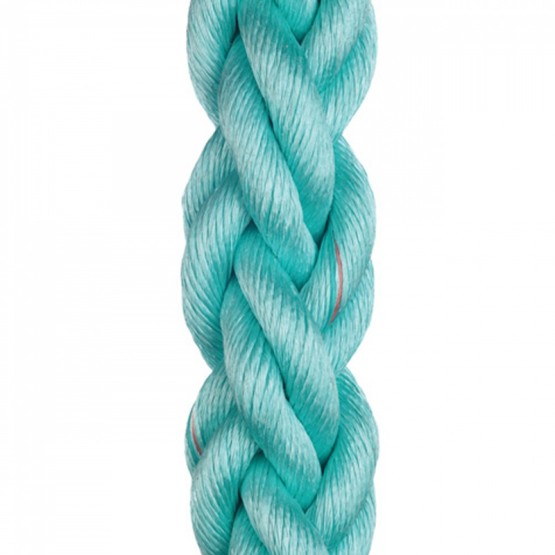

Movline Plus 8 strands
Movline Plus is an extremely strong and high tenacity bi-polymer composite fiber extruded on a custom-built extrusion process. Its gripping capability is enhanced by the outer fuzzy surface developed in use, which also protects the inner fibers against abrasion, increasing the rope lifetime. The rope is especially suitable for vessel mooring and also aquaculture cages mooring. Movline Plus are floating ropes and do not absorb water, making them very easy to handle and work with. Also available in 12 strands, 4 strands and 3 strands.
-
- High abrasion resistance
- High strength floating line
- No water absorption
- Good UV resistance
- Non kinking and non-rotating
-
-
- Raw material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94 (floats)
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 5,5%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 24 1 3 261 26,1 17,5 10 605 23 380 104 26 1 1/32 3 1/4 306 30,6 20,6 12 339 27 202 121 28 1 1/8 3 1/2 355 35,5 23,9 14 174 31 248 139 30 1 1/4 3 3/4 408 40,8 27,4 16 112 35 519 158 32 1 5/16 4 464 46,4 31,2 18 253 40 240 179 36 1 1/2 4 1/2 587 58,7 39,4 22 842 50 357 224 40 1 5/8 5 725 72,5 48,7 27 940 61 597 274 44 1 3/4 5 1/2 877 87,7 58,9 33 345 73 512 327 48 2 6 1 040 104 69,9 39 259 86 550 385 52 2 1/8 6 1/2 1 220 122 82 45 683 100 713 448 56 2 1/4 7 1 420 142 95,4 52 414 115 550 514 60 2 1/2 7 1/2 1 630 163 109,5 59 450 131 062 583 64 2 5/8 8 1 860 186 125 66 996 147 698 657 68 2 3/4 8 1/2 2 100 210 141,1 75 153 165 682 737 72 2 7/8 9 2 350 235 157,9 83 617 184 341 820 80 3 1/4 10 2 900 290 194,9 101 462 223 682 995 88 3 5/8 11 3 510 351 235,9 121 347 267 519 1190 96 4 12 4 170 417 280,2 142 761 314 728 1400 104 4 1/4 13 4 900 490 329,3 165 195 364 186 1620 112 4 5/8 14 5 680 568 381,7 191 707 422 635 1880 120 5 15 6 520 652 438,1 217 200 478 837 2130 128 5 1/4 16 7 420 742 498,6 246 772 544 031 2420 136 5 1/2 17 8 380 838 563,1 277 364 611 472 2720
In accordance to ISO 10572:2009. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring lines
- Anchor lines
- Tug and Towing lines
-
- Raw material: Mixed Polyolefin (HT)
- Specific Gravity: 0,94 (floats)
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 5,5%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 24 | 1 | 3 | 261 | 26,1 | 17,5 | 10 605 | 23 380 | 104 |
| 26 | 1 1/32 | 3 1/4 | 306 | 30,6 | 20,6 | 12 339 | 27 202 | 121 |
| 28 | 1 1/8 | 3 1/2 | 355 | 35,5 | 23,9 | 14 174 | 31 248 | 139 |
| 30 | 1 1/4 | 3 3/4 | 408 | 40,8 | 27,4 | 16 112 | 35 519 | 158 |
| 32 | 1 5/16 | 4 | 464 | 46,4 | 31,2 | 18 253 | 40 240 | 179 |
| 36 | 1 1/2 | 4 1/2 | 587 | 58,7 | 39,4 | 22 842 | 50 357 | 224 |
| 40 | 1 5/8 | 5 | 725 | 72,5 | 48,7 | 27 940 | 61 597 | 274 |
| 44 | 1 3/4 | 5 1/2 | 877 | 87,7 | 58,9 | 33 345 | 73 512 | 327 |
| 48 | 2 | 6 | 1 040 | 104 | 69,9 | 39 259 | 86 550 | 385 |
| 52 | 2 1/8 | 6 1/2 | 1 220 | 122 | 82 | 45 683 | 100 713 | 448 |
| 56 | 2 1/4 | 7 | 1 420 | 142 | 95,4 | 52 414 | 115 550 | 514 |
| 60 | 2 1/2 | 7 1/2 | 1 630 | 163 | 109,5 | 59 450 | 131 062 | 583 |
| 64 | 2 5/8 | 8 | 1 860 | 186 | 125 | 66 996 | 147 698 | 657 |
| 68 | 2 3/4 | 8 1/2 | 2 100 | 210 | 141,1 | 75 153 | 165 682 | 737 |
| 72 | 2 7/8 | 9 | 2 350 | 235 | 157,9 | 83 617 | 184 341 | 820 |
| 80 | 3 1/4 | 10 | 2 900 | 290 | 194,9 | 101 462 | 223 682 | 995 |
| 88 | 3 5/8 | 11 | 3 510 | 351 | 235,9 | 121 347 | 267 519 | 1190 |
| 96 | 4 | 12 | 4 170 | 417 | 280,2 | 142 761 | 314 728 | 1400 |
| 104 | 4 1/4 | 13 | 4 900 | 490 | 329,3 | 165 195 | 364 186 | 1620 |
| 112 | 4 5/8 | 14 | 5 680 | 568 | 381,7 | 191 707 | 422 635 | 1880 |
| 120 | 5 | 15 | 6 520 | 652 | 438,1 | 217 200 | 478 837 | 2130 |
| 128 | 5 1/4 | 16 | 7 420 | 742 | 498,6 | 246 772 | 544 031 | 2420 |
| 136 | 5 1/2 | 17 | 8 380 | 838 | 563,1 | 277 364 | 611 472 | 2720 |
In accordance to ISO 10572:2009. More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
