Movflex Sinking with SBR
-
- sBRS – Snapback restrain system for additional safety
- Rope core elongates underload
- Energy is progressively absorbed and dissipated
- Snapback force is significantly reduced or neutralized
- Exceptional abrasion and wear resistance even in wet conditions
- 18-20% lighter than regular polyester ropes
- Very low water absorption
- Flexible and smooth, non kinking and non-rotating
- Excellent UV resistance

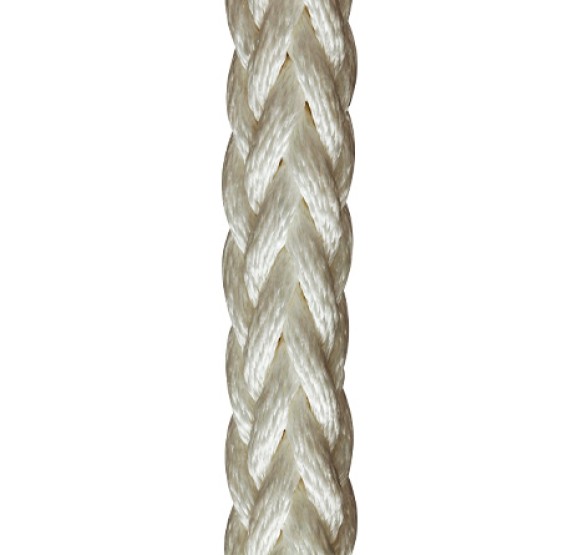

_1x.jpg?t=1787654600 "^A3nPJqtoArVwnzr_(1).jpg")
-
- Raw Material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 1,10
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4,0%
50% …. 6,0%
Diameter Size Circ. Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 410 41 27,6 14.174 31.248 139 26 1 1/32 3 1/4 476 47,6 32 17.131 37.767 168 28 1 1/8 3 1/2 542 54,2 36,4 20.088 44.287 197 30 1 1/4 3 3/4 624 62,4 41,9 22.332 49.233 219 32 1,3125 4 688 62,3 41,9 26.003 57.326 255 34 1 11/32 4 1/4 771 77,1 51,8 29.266 64.519 287 36 1,5 4,5 854 78,9 53 32.529 71.713 319 38 1 9/16 4 3/4 944 94,4 63,4 36.149 79.694 354,5 40 1,625 5 1.034 96,9 65,1 39.769 87.674 390 44 1,75 5,5 1.243 117,8 79,2 47.723 105.209 468 48 2 6 1.471 147,1 98,8 59.160 130.423 580 52 2,125 6,5 1.715 171,5 115,2 68.748 151.561 674 56 2,25 7 1.985 198,5 133,4 79.254 174.722 777 60 2,5 7,5 2.265 226,5 152,2 90.066 198.558 883 64 2,625 8 2.565 256,5 172,4 102.000 224.868 1.000 68 2,75 8,5 2.885 288,5 193,9 114.240 251.852 1.120 72 2,875 9 3.225 322,5 216,7 127.500 281.085 1.250 More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative. We reserve the right to change them without prior notice. Tolerance in weights: ± 5%. Indicated breaking loads do not include any reduction in case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
- Mooring Lines
- Towing Lines
- Stretchers
- Raw Material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 1,10
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4,0%
50% …. 6,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 410 | 41 | 27,6 | 14.174 | 31.248 | 139 |
| 26 | 1 1/32 | 3 1/4 | 476 | 47,6 | 32 | 17.131 | 37.767 | 168 |
| 28 | 1 1/8 | 3 1/2 | 542 | 54,2 | 36,4 | 20.088 | 44.287 | 197 |
| 30 | 1 1/4 | 3 3/4 | 624 | 62,4 | 41,9 | 22.332 | 49.233 | 219 |
| 32 | 1,3125 | 4 | 688 | 62,3 | 41,9 | 26.003 | 57.326 | 255 |
| 34 | 1 11/32 | 4 1/4 | 771 | 77,1 | 51,8 | 29.266 | 64.519 | 287 |
| 36 | 1,5 | 4,5 | 854 | 78,9 | 53 | 32.529 | 71.713 | 319 |
| 38 | 1 9/16 | 4 3/4 | 944 | 94,4 | 63,4 | 36.149 | 79.694 | 354,5 |
| 40 | 1,625 | 5 | 1.034 | 96,9 | 65,1 | 39.769 | 87.674 | 390 |
| 44 | 1,75 | 5,5 | 1.243 | 117,8 | 79,2 | 47.723 | 105.209 | 468 |
| 48 | 2 | 6 | 1.471 | 147,1 | 98,8 | 59.160 | 130.423 | 580 |
| 52 | 2,125 | 6,5 | 1.715 | 171,5 | 115,2 | 68.748 | 151.561 | 674 |
| 56 | 2,25 | 7 | 1.985 | 198,5 | 133,4 | 79.254 | 174.722 | 777 |
| 60 | 2,5 | 7,5 | 2.265 | 226,5 | 152,2 | 90.066 | 198.558 | 883 |
| 64 | 2,625 | 8 | 2.565 | 256,5 | 172,4 | 102.000 | 224.868 | 1.000 |
| 68 | 2,75 | 8,5 | 2.885 | 288,5 | 193,9 | 114.240 | 251.852 | 1.120 |
| 72 | 2,875 | 9 | 3.225 | 322,5 | 216,7 | 127.500 | 281.085 | 1.250 |
More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative. We reserve the right to change them without prior notice. Tolerance in weights: ± 5%. Indicated breaking loads do not include any reduction in case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
