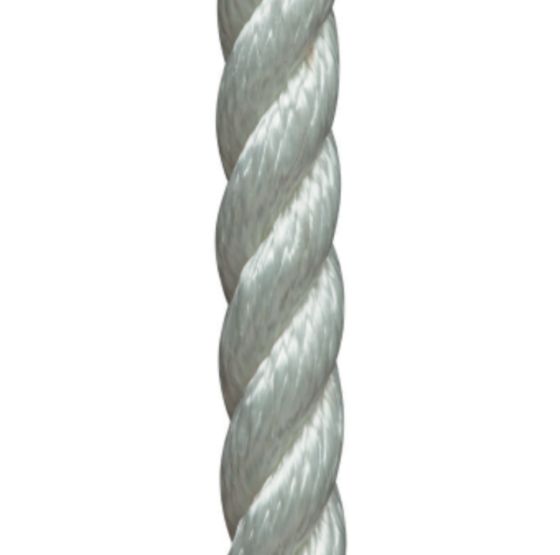

Movflex Sinking
-
- Exceptional abrasion and wear resistance even in wet conditions
- 18-20 % lighter than regular polyester ropes
- Low water absorption
- Flexible and smooth
- Excellent UV resistance
-
- Raw Material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 1,10
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4,5%
50% …. 7%
Diameter SizeCirc. Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 6 1/4 3 1/2 16 1,6 1,1 689 1.520 7 8 5/16 3 3/4 29 2,9 1,9 1.193 2.630 12 10 3/8 4 45 4,5 3 1.835 4.047 18 12 1/2 4 1/2 65 6,5 4,4 2.590 5.710 25 14 9/16 5 88 8,8 5,9 3.467 7.643 34 16 5/8 5 1/2 116 11,6 7,8 4.436 9.779 43 18 3/4 6 147 14,7 9,9 5.557 12.252 54 20 13/16 3 181 18,1 12,2 6.751 14.882 66 22 7/8 3 1/4 219 21,9 14,7 8.066 17.782 79 24 1 3 261 26,1 17,5 9.463 20.862 92,8 26 1 1/32 3 1/4 306 30,6 20,6 10.911 24.054 107 28 1 1/8 3 1/2 355 35,5 23,9 12.543 27.651 123 30 1 1/4 3 3/4 408 40,8 27,4 14.276 31.473 140 32 1 5/16 4 464 46,4 31,2 16.010 35.295 157 34 1 11/32 4 1/4 525 52,5 35,3 17.845 39.341 175 36 1 1/2 4 1/2 587 58,7 39,4 19.783 43.612 194 38 1 9/16 4 3/4 656 65,6 44,1 21.822 48.108 214 40 1 5/8 5 725 72,5 48,7 23.861 52.605 234 44 1 3/4 5 1/2 877 87,7 58,9 28.246 62.271 277 48 2 6 1.040 104 69,9 33.141 73.062 325 52 2 1/8 6 1/2 1.220 122 82 38.341 84.527 376 56 2 1/4 7 1.420 142 95,4 43.746 96.442 429 60 2 1/2 7 1/2 1.630 163 109,5 49.558 109.256 486 64 2 5/8 8 1.860 186 125 55.473 122.294 544 68 2 3/4 8 1/2 2.100 210 141,1 62.101 136.907 609 72 2 7/8 9 2.350 235 157,9 69.035 152.194 677 80 3 1/4 10 2.900 290 194,9 83.413 183.891 818 90 3 9/16 11 1/8 3.750 375 252 107.886 237.845 1.058 More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative. We reserve the right to change them without prior notice. Tolerance in weights: ± 5%. Indicated breaking loads do not include any reduction in case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
- Mooring lines
- Towing lines
- Raw Material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 1,10
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4,5%
50% …. 7%
| Diameter SizeCirc. | Weight | Breaking Load | ||||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 6 | 1/4 | 3 1/2 | 16 | 1,6 | 1,1 | 689 | 1.520 | 7 |
| 8 | 5/16 | 3 3/4 | 29 | 2,9 | 1,9 | 1.193 | 2.630 | 12 |
| 10 | 3/8 | 4 | 45 | 4,5 | 3 | 1.835 | 4.047 | 18 |
| 12 | 1/2 | 4 1/2 | 65 | 6,5 | 4,4 | 2.590 | 5.710 | 25 |
| 14 | 9/16 | 5 | 88 | 8,8 | 5,9 | 3.467 | 7.643 | 34 |
| 16 | 5/8 | 5 1/2 | 116 | 11,6 | 7,8 | 4.436 | 9.779 | 43 |
| 18 | 3/4 | 6 | 147 | 14,7 | 9,9 | 5.557 | 12.252 | 54 |
| 20 | 13/16 | 3 | 181 | 18,1 | 12,2 | 6.751 | 14.882 | 66 |
| 22 | 7/8 | 3 1/4 | 219 | 21,9 | 14,7 | 8.066 | 17.782 | 79 |
| 24 | 1 | 3 | 261 | 26,1 | 17,5 | 9.463 | 20.862 | 92,8 |
| 26 | 1 1/32 | 3 1/4 | 306 | 30,6 | 20,6 | 10.911 | 24.054 | 107 |
| 28 | 1 1/8 | 3 1/2 | 355 | 35,5 | 23,9 | 12.543 | 27.651 | 123 |
| 30 | 1 1/4 | 3 3/4 | 408 | 40,8 | 27,4 | 14.276 | 31.473 | 140 |
| 32 | 1 5/16 | 4 | 464 | 46,4 | 31,2 | 16.010 | 35.295 | 157 |
| 34 | 1 11/32 | 4 1/4 | 525 | 52,5 | 35,3 | 17.845 | 39.341 | 175 |
| 36 | 1 1/2 | 4 1/2 | 587 | 58,7 | 39,4 | 19.783 | 43.612 | 194 |
| 38 | 1 9/16 | 4 3/4 | 656 | 65,6 | 44,1 | 21.822 | 48.108 | 214 |
| 40 | 1 5/8 | 5 | 725 | 72,5 | 48,7 | 23.861 | 52.605 | 234 |
| 44 | 1 3/4 | 5 1/2 | 877 | 87,7 | 58,9 | 28.246 | 62.271 | 277 |
| 48 | 2 | 6 | 1.040 | 104 | 69,9 | 33.141 | 73.062 | 325 |
| 52 | 2 1/8 | 6 1/2 | 1.220 | 122 | 82 | 38.341 | 84.527 | 376 |
| 56 | 2 1/4 | 7 | 1.420 | 142 | 95,4 | 43.746 | 96.442 | 429 |
| 60 | 2 1/2 | 7 1/2 | 1.630 | 163 | 109,5 | 49.558 | 109.256 | 486 |
| 64 | 2 5/8 | 8 | 1.860 | 186 | 125 | 55.473 | 122.294 | 544 |
| 68 | 2 3/4 | 8 1/2 | 2.100 | 210 | 141,1 | 62.101 | 136.907 | 609 |
| 72 | 2 7/8 | 9 | 2.350 | 235 | 157,9 | 69.035 | 152.194 | 677 |
| 80 | 3 1/4 | 10 | 2.900 | 290 | 194,9 | 83.413 | 183.891 | 818 |
| 90 | 3 9/16 | 11 1/8 | 3.750 | 375 | 252 | 107.886 | 237.845 | 1.058 |
More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative. We reserve the right to change them without prior notice. Tolerance in weights: ± 5%. Indicated breaking loads do not include any reduction in case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
