Movflex Sinking

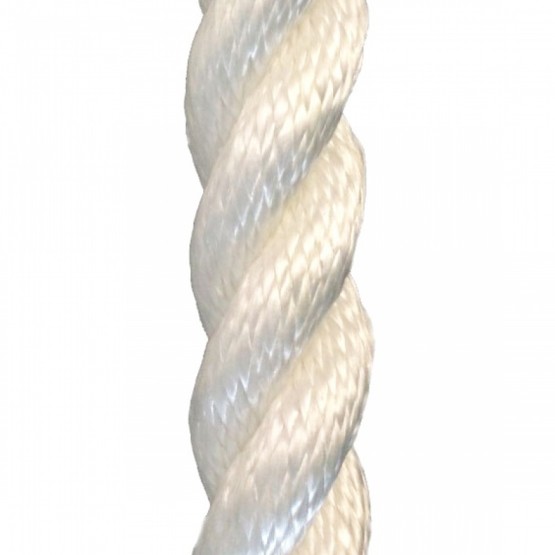

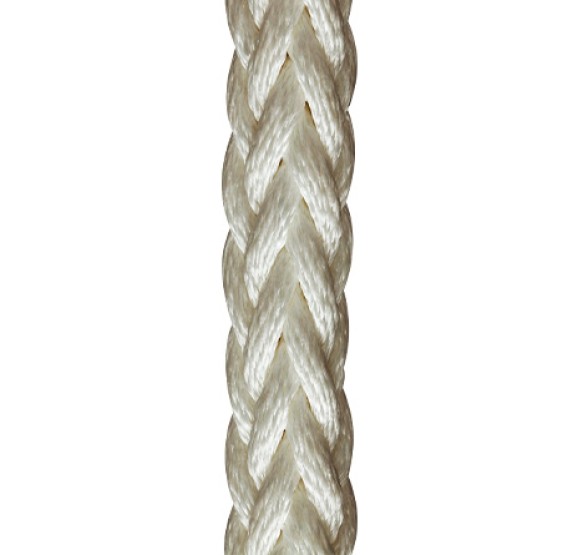

Movflex is a special composite rope that blends high tenacity polyester yarns with high tenacity polyolefin yarns. This distinct combination gives it excellent fatigue properties when compared to an all polyester rope but with less handling weight. Constructed with double/triple twisted cover yarns, this rope has excellent abrasion and heat resistance, whilst the polyester combination provides it with flexibility and smoothness. This combination of fibers allows for a rope with smaller diameters (less weight) with excellent characteristics. Also available in 12 strands and 8 strands
-
- Exceptional abrasion and wear resistance even in wet conditions
- 18-20 % lighter than regular polyester ropes
- Low water absorption
- Flexible and smooth
- Excellent UV resistance
-
-
- Raw material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 1,10 (sinks)
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4,5%
50% …. 7,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 6 1/4 3/4 20 2 1,3 714 1 574 7 8 5/16 1 38 3,8 2,6 1 326 2 922 13 10 3/8 1 1/4 55 5,5 3,7 2 039 4 496 20 12 1/2 1 1/2 80 8 5,4 2 957 6 519 29 14 9/16 1 3/4 109 10,9 7,3 3 977 8 767 39 16 5/8 2 141 14,1 9,5 5 201 11 465 51 18 3/4 2 1/4 178 17,8 12 6 526 14 388 64 20 13/16 2 1/2 221 22,1 14,9 8 158 17 984 80 22 7/8 2 3/4 268 26,8 18 9 789 21 581 96 24 1 3 311 31,1 20,9 11 829 26 077 116 26 1 1/32 3 1/4 370 37 24,9 13 664 30 124 134 28 1 1/8 3 1/2 429 42,9 28,8 15 500 34 171 152 30 1 1/4 3 3/4 503 50,3 33,8 17 437 38 442 171 32 1 5/16 4 561 56,1 37,7 19 579 43 163 192 34 1 11/32 4 1/4 635 63,5 42,7 21 924 48 333 215 36 1 1/2 4 1/2 710 71,0 47,7 24 371 53 729 239 38 1 9/16 4 3/4 791 79,1 53,2 26 921 59 349 264 40 1 5/8 5 872 87,2 58,6 29 368 64 744 288 44 1 3/4 5 1/2 1 060 106 71,2 35 078 77 333 344 48 2 6 1 265 126,5 85 41 197 90 822 404 52 2 1/8 6 1/2 1 480 148 99,4 45 989 101 388 451 56 2 1/4 7 1 720 172 115,6 53 433 117 798 524 60 2 1/2 7 1/2 1 976 197,6 132,8 60 367 133 085 592 64 2 5/8 8 2 247 224,7 151 66 384 146 349 651 68 2 3/4 8 1/2 2 530 253 170 74 847 165 008 734 72 2 7/8 9 2 840 284 190,8 81 068 178 721 795 80 3 1/4 10 3 520 352 236,5 100 442 221 434 985 90 3 9/16 11 1/8 4 950 495 332,6 136 235 300 341 1 336
More diameters available by demand. Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
The technicals characteristics stated are the result of a Cotesi development and are stricly indicative.
We reserve the right to change them without prior notice.
- Mooring lines
- Towing lines
-
- Raw material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 1,10 (sinks)
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4,5%
50% …. 7,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 6 | 1/4 | 3/4 | 20 | 2 | 1,3 | 714 | 1 574 | 7 |
| 8 | 5/16 | 1 | 38 | 3,8 | 2,6 | 1 326 | 2 922 | 13 |
| 10 | 3/8 | 1 1/4 | 55 | 5,5 | 3,7 | 2 039 | 4 496 | 20 |
| 12 | 1/2 | 1 1/2 | 80 | 8 | 5,4 | 2 957 | 6 519 | 29 |
| 14 | 9/16 | 1 3/4 | 109 | 10,9 | 7,3 | 3 977 | 8 767 | 39 |
| 16 | 5/8 | 2 | 141 | 14,1 | 9,5 | 5 201 | 11 465 | 51 |
| 18 | 3/4 | 2 1/4 | 178 | 17,8 | 12 | 6 526 | 14 388 | 64 |
| 20 | 13/16 | 2 1/2 | 221 | 22,1 | 14,9 | 8 158 | 17 984 | 80 |
| 22 | 7/8 | 2 3/4 | 268 | 26,8 | 18 | 9 789 | 21 581 | 96 |
| 24 | 1 | 3 | 311 | 31,1 | 20,9 | 11 829 | 26 077 | 116 |
| 26 | 1 1/32 | 3 1/4 | 370 | 37 | 24,9 | 13 664 | 30 124 | 134 |
| 28 | 1 1/8 | 3 1/2 | 429 | 42,9 | 28,8 | 15 500 | 34 171 | 152 |
| 30 | 1 1/4 | 3 3/4 | 503 | 50,3 | 33,8 | 17 437 | 38 442 | 171 |
| 32 | 1 5/16 | 4 | 561 | 56,1 | 37,7 | 19 579 | 43 163 | 192 |
| 34 | 1 11/32 | 4 1/4 | 635 | 63,5 | 42,7 | 21 924 | 48 333 | 215 |
| 36 | 1 1/2 | 4 1/2 | 710 | 71,0 | 47,7 | 24 371 | 53 729 | 239 |
| 38 | 1 9/16 | 4 3/4 | 791 | 79,1 | 53,2 | 26 921 | 59 349 | 264 |
| 40 | 1 5/8 | 5 | 872 | 87,2 | 58,6 | 29 368 | 64 744 | 288 |
| 44 | 1 3/4 | 5 1/2 | 1 060 | 106 | 71,2 | 35 078 | 77 333 | 344 |
| 48 | 2 | 6 | 1 265 | 126,5 | 85 | 41 197 | 90 822 | 404 |
| 52 | 2 1/8 | 6 1/2 | 1 480 | 148 | 99,4 | 45 989 | 101 388 | 451 |
| 56 | 2 1/4 | 7 | 1 720 | 172 | 115,6 | 53 433 | 117 798 | 524 |
| 60 | 2 1/2 | 7 1/2 | 1 976 | 197,6 | 132,8 | 60 367 | 133 085 | 592 |
| 64 | 2 5/8 | 8 | 2 247 | 224,7 | 151 | 66 384 | 146 349 | 651 |
| 68 | 2 3/4 | 8 1/2 | 2 530 | 253 | 170 | 74 847 | 165 008 | 734 |
| 72 | 2 7/8 | 9 | 2 840 | 284 | 190,8 | 81 068 | 178 721 | 795 |
| 80 | 3 1/4 | 10 | 3 520 | 352 | 236,5 | 100 442 | 221 434 | 985 |
| 90 | 3 9/16 | 11 1/8 | 4 950 | 495 | 332,6 | 136 235 | 300 341 | 1 336 |
More diameters available by demand. Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
The technicals characteristics stated are the result of a Cotesi development and are stricly indicative.
We reserve the right to change them without prior notice.
