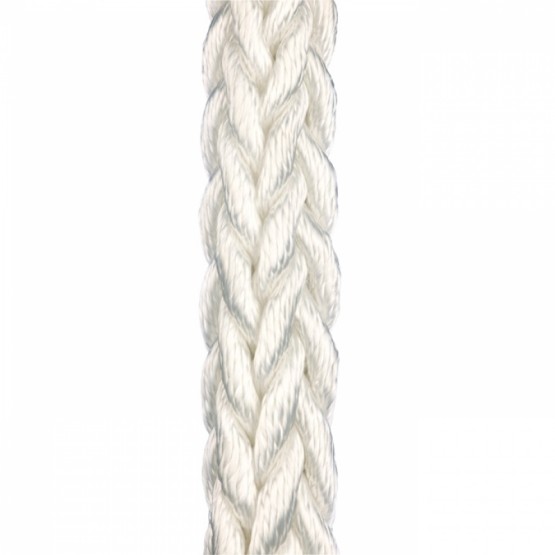

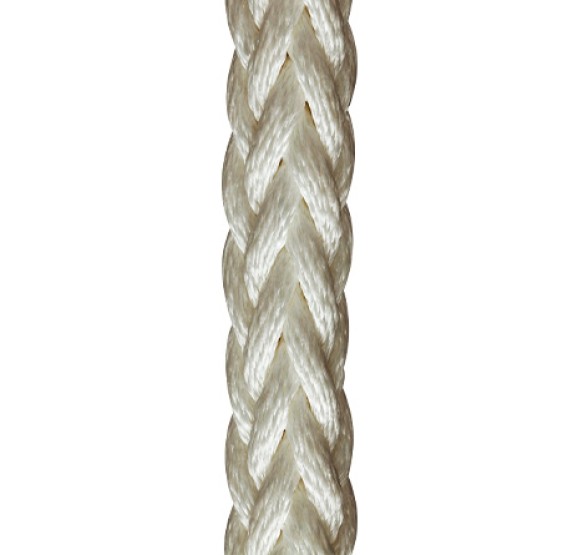

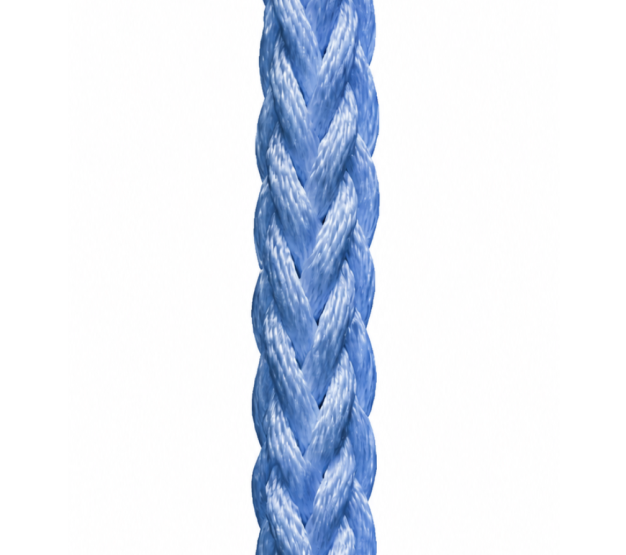

Movflex Floating 12 strands
Movflex is a special composite rope that mixes high tenacity polyester yarns with high tenacity multifilament polypropylene yarns. The specific combination used gives it floating proprieties along with its firm, round and non-rotational construction. Adding to this, its double/triple twisted cover yarns provide excellent abrasion and heat resistance, while maintaining a flexibility level that assures good handling. Also available in 8 strands, 4 strands and 3 strands.
-
- Exceptional abrasion and wear resistance even in wet conditions
- 38-40 % lighter than regular polyester ropes
- Very low water absorption
- Flexible and smooth, non kinking and non-rotating
- Excellent UV resistance
-
-
- Raw material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 0,99 (floats)
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4,0%
50% …. 6,0%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft Kgf lbf kN 24 1 3 266 26,6 17,9 10 707 23 605 105 26 1 1/32 3 1/4 317 31,7 21,3 12 848 28 326 126 28 1 1/8 3 1/2 368 36,8 24,7 15 092 33 271 148 30 1 1/4 3 3/4 430 43,0 28,9 17 335 38 217 170 32 1 5/16 4 478 47,8 32,1 19 375 42 713 190 36 1 1/2 4 1/2 606 60,6 40,7 24 269 53 504 238 40 1 5/8 5 750 75 50,4 29 572 65 194 290 44 1 3/4 5 1/2 900 90 60,5 35 282 77 783 346 48 2 6 1 075 107,5 72,2 41 503 91 496 407 52 2 1/8 6 1/2 1 265 126,5 85 48 029 105 884 471 56 2 1/4 7 1 460 146 98,1 55 269 121 845 542 60 2 1/2 7 1/2 1 680 168 112,9 62 713 138 256 615 64 2 5/8 8 1 910 191 128,3 70 871 156 240 695 68 2 3/4 8 1/2 2 160 216 145,1 79 538 175 349 780
More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations
- Mooring lines
- Towing lines
-
- Raw material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 0,99 (floats)
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4,0%
50% …. 6,0%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | Kgf | lbf | kN |
| 24 | 1 | 3 | 266 | 26,6 | 17,9 | 10 707 | 23 605 | 105 |
| 26 | 1 1/32 | 3 1/4 | 317 | 31,7 | 21,3 | 12 848 | 28 326 | 126 |
| 28 | 1 1/8 | 3 1/2 | 368 | 36,8 | 24,7 | 15 092 | 33 271 | 148 |
| 30 | 1 1/4 | 3 3/4 | 430 | 43,0 | 28,9 | 17 335 | 38 217 | 170 |
| 32 | 1 5/16 | 4 | 478 | 47,8 | 32,1 | 19 375 | 42 713 | 190 |
| 36 | 1 1/2 | 4 1/2 | 606 | 60,6 | 40,7 | 24 269 | 53 504 | 238 |
| 40 | 1 5/8 | 5 | 750 | 75 | 50,4 | 29 572 | 65 194 | 290 |
| 44 | 1 3/4 | 5 1/2 | 900 | 90 | 60,5 | 35 282 | 77 783 | 346 |
| 48 | 2 | 6 | 1 075 | 107,5 | 72,2 | 41 503 | 91 496 | 407 |
| 52 | 2 1/8 | 6 1/2 | 1 265 | 126,5 | 85 | 48 029 | 105 884 | 471 |
| 56 | 2 1/4 | 7 | 1 460 | 146 | 98,1 | 55 269 | 121 845 | 542 |
| 60 | 2 1/2 | 7 1/2 | 1 680 | 168 | 112,9 | 62 713 | 138 256 | 615 |
| 64 | 2 5/8 | 8 | 1 910 | 191 | 128,3 | 70 871 | 156 240 | 695 |
| 68 | 2 3/4 | 8 1/2 | 2 160 | 216 | 145,1 | 79 538 | 175 349 | 780 |
More diameters available by demand.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations
