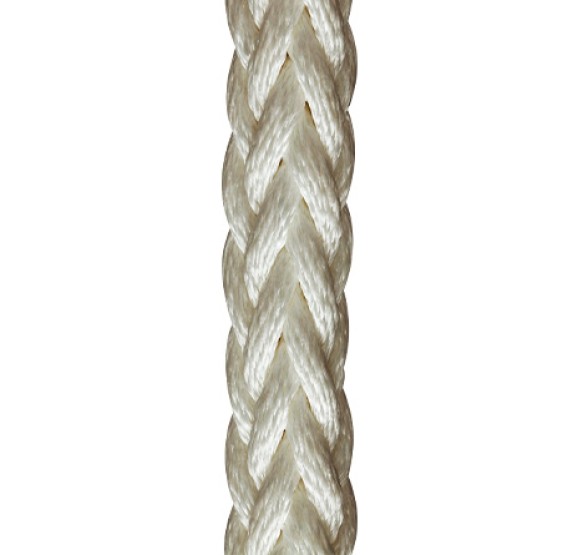

Movflex Floating
-
- Exceptional abrasion and wear resistance even in wet conditions
- 38-40 % lighter than regular polyester ropes
- Very low water absorption
- Flexible and smooth, non-kinking and non-rotating
- Excellent UV resistance
_1x.jpg?t=1787663694 "^A3nPJqtoArVwnzr_(1).jpg")
-
- Raw Material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 0,99
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4%
50% ….6%
Diameter Size Circ. Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 266 26,6 17,9 10.707 23.605 105 26 1 1/32 3 1/4 317 31,7 21,3 12.848 28.326 126 28 1 1/8 3 1/2 368 36,8 24,7 15.092 33.271 148 30 1 1/4 3 3/4 430 43,0 28,9 17.335 38.217 170 32 1 5/16 4 478 47,8 32,1 19.375 42.713 190 34 1 11/32 4 1/4 542 54,2 36,44 21 882 48 108 214 36 1 1/2 4 1/2 606 60,6 40,7 24.269 53.504 238 38 1 9/16 4 3/4 693 69,3 46,6 28 450 62 721 279 40 1 5/8 5 780 78,0 52,4 32.529 71.713 319 44 1 3/4 5 1/2 980 98,0 65,9 39.259 86 550 385 48 2 6 1.175 117,5 78,9 46.091 101.612 452 52 2 1/8 6 1/2 1.400 140,0 94,0 54.351 119.822 533 56 2 1/4 7 1.600 160,0 107,5 62.611 138.031 614 60 2 1/2 7 1/2 1.800 180,0 121,0 70.973 156.465 696 64 2 5/8 8 2.070 207,0 139,1 81.068 178.721 795 68 2 3/4 8 1/2 2.330 233,0 156,5 91.367 201.426 896 72 2 7/8 9 2.700 270,0 181,4 101.870 224.581 999 More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative. We reserve the right to change them without prior notice. Tolerance in weights: ± 5%. Indicated breaking loads do not include any reduction in case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
- Mooring lines
- Towing lines
- Stretchers
- Raw Material: Polyester / Mixed Polyolefins (HT)
- Specific Gravity: 0,99
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4%
50% ….6%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 266 | 26,6 | 17,9 | 10.707 | 23.605 | 105 |
| 26 | 1 1/32 | 3 1/4 | 317 | 31,7 | 21,3 | 12.848 | 28.326 | 126 |
| 28 | 1 1/8 | 3 1/2 | 368 | 36,8 | 24,7 | 15.092 | 33.271 | 148 |
| 30 | 1 1/4 | 3 3/4 | 430 | 43,0 | 28,9 | 17.335 | 38.217 | 170 |
| 32 | 1 5/16 | 4 | 478 | 47,8 | 32,1 | 19.375 | 42.713 | 190 |
| 34 | 1 11/32 | 4 1/4 | 542 | 54,2 | 36,44 | 21 882 | 48 108 | 214 |
| 36 | 1 1/2 | 4 1/2 | 606 | 60,6 | 40,7 | 24.269 | 53.504 | 238 |
| 38 | 1 9/16 | 4 3/4 | 693 | 69,3 | 46,6 | 28 450 | 62 721 | 279 |
| 40 | 1 5/8 | 5 | 780 | 78,0 | 52,4 | 32.529 | 71.713 | 319 |
| 44 | 1 3/4 | 5 1/2 | 980 | 98,0 | 65,9 | 39.259 | 86 550 | 385 |
| 48 | 2 | 6 | 1.175 | 117,5 | 78,9 | 46.091 | 101.612 | 452 |
| 52 | 2 1/8 | 6 1/2 | 1.400 | 140,0 | 94,0 | 54.351 | 119.822 | 533 |
| 56 | 2 1/4 | 7 | 1.600 | 160,0 | 107,5 | 62.611 | 138.031 | 614 |
| 60 | 2 1/2 | 7 1/2 | 1.800 | 180,0 | 121,0 | 70.973 | 156.465 | 696 |
| 64 | 2 5/8 | 8 | 2.070 | 207,0 | 139,1 | 81.068 | 178.721 | 795 |
| 68 | 2 3/4 | 8 1/2 | 2.330 | 233,0 | 156,5 | 91.367 | 201.426 | 896 |
| 72 | 2 7/8 | 9 | 2.700 | 270,0 | 181,4 | 101.870 | 224.581 | 999 |
More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative. We reserve the right to change them without prior notice. Tolerance in weights: ± 5%. Indicated breaking loads do not include any reduction in case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
