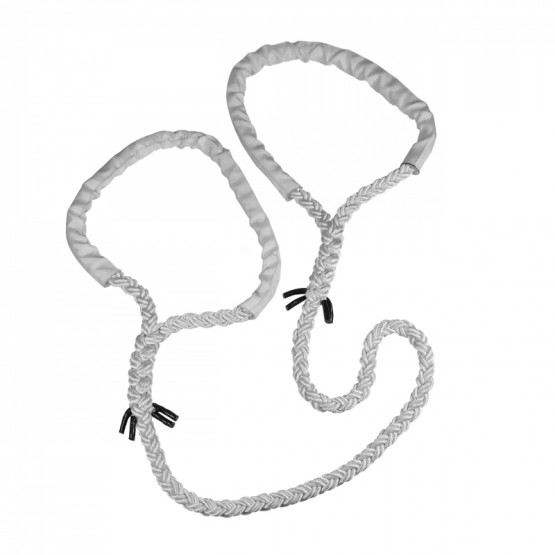

Mooring Tails Movflex Sinking
Movflex Sinking has excellent fatigue properties with a reduced handling weight. The firm plaited and non-rotational construction provides flexibility and smoothness, and the double/triple twisted cover yarns provide excellent abrasion and heat resistance.
-
- Exceptional abrasion and wear resistance even in wet conditions
- 18-20 % lighter than regular polyester ropes
- Low water absorption
- Flexible and smooth, non-kinking and non-rotating
- Excellent shock absorbers
- Excellent UV resistance•Exceptional abrasion and wear resistance even in wet conditions
- 18-20 % lighter than regular polyester ropes
- Low water absorption
- Flexible and smooth, non-kinking and non-rotating
- Excellent shock absorbers
- Excellent UV resistance
-
- Raw Material: Polyester / Mixed Polyolefins
- Specific Gravity: 1,10
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4%
50% …. 6%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches g/m Kg/ Un lbs/ Un kgf lbf kN 52 2 1/8 6 1/2 1.644 30 66 65.874 145.225 646 56 2 1/4 7 1.910 35 77 75.969 167.480 745 60 2 1/2 7 1/2 2.195 40 88 86.778 191.310 851 64 2 5/8 8 2.497 45 99 97.893 215.814 960 68 2 3/4 8 1/2 2.812 51 112 110.436 243.465 1.083 72 3 9 3.154 57 126 123.386 272.015 1.210 76 3 1/8 9 1/2 3.530 64 141 136.642 301.240 1.340 80 3 1/4 10 3.905 70 154 149.899 330.465 1.470 88 3 5/8 11 4.720 77 170 181.102 399.255 1.776 96 4 12 5.610 236 520 214.141 472.093 2.100 More diameters available by demand.
Also available in Double Leg.
- Mooring tails
- Raw Material: Polyester / Mixed Polyolefins
- Specific Gravity: 1,10
- Melting Point: 265ºC / 165ºC
- Elongation at % of BS:
25% …. 4%
50% …. 6%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | g/m | Kg/ Un | lbs/ Un | kgf | lbf | kN |
| 52 | 2 1/8 | 6 1/2 | 1.644 | 30 | 66 | 65.874 | 145.225 | 646 |
| 56 | 2 1/4 | 7 | 1.910 | 35 | 77 | 75.969 | 167.480 | 745 |
| 60 | 2 1/2 | 7 1/2 | 2.195 | 40 | 88 | 86.778 | 191.310 | 851 |
| 64 | 2 5/8 | 8 | 2.497 | 45 | 99 | 97.893 | 215.814 | 960 |
| 68 | 2 3/4 | 8 1/2 | 2.812 | 51 | 112 | 110.436 | 243.465 | 1.083 |
| 72 | 3 | 9 | 3.154 | 57 | 126 | 123.386 | 272.015 | 1.210 |
| 76 | 3 1/8 | 9 1/2 | 3.530 | 64 | 141 | 136.642 | 301.240 | 1.340 |
| 80 | 3 1/4 | 10 | 3.905 | 70 | 154 | 149.899 | 330.465 | 1.470 |
| 88 | 3 5/8 | 11 | 4.720 | 77 | 170 | 181.102 | 399.255 | 1.776 |
| 96 | 4 | 12 | 5.610 | 236 | 520 | 214.141 | 472.093 | 2.100 |
More diameters available by demand.
Also available in Double Leg.
