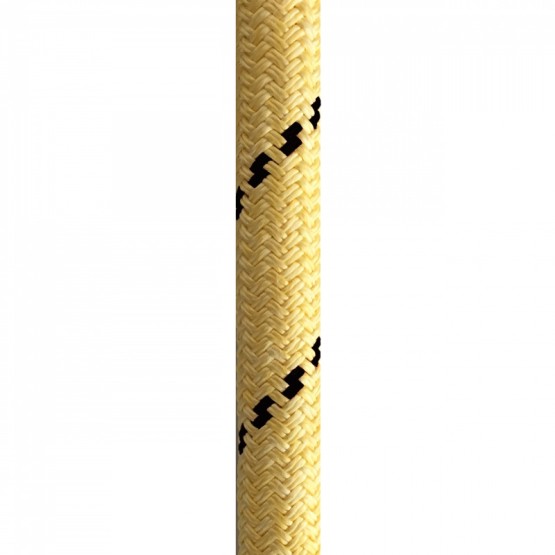

D-Tech Winchline - With HMWPE Jacket
Made from HMWPE fibers and coated with a Pro-Tech self-unique impregnation that improves its abrasion resistance and fatigue properties, Cotesi D-Tech Winchline must be considered when high breaking strengths are required. Stronger than steel wire ropes of the same weight, it has proven to be a cost- saving replacement in several applications. Double braided construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in HMPE. Also available with PES & PE Jacket.
-
- 1/7 of the steel wire weight
- Longer life time compared to steel wire
- Low operational costs
- Low elongation
- Non-kinking and non-rotating
- Easy and safer handling
_1x.jpg?t=1760521108 "JPG_dd29551bac6b65566780c0fa64053e51_(1).jpg")
-
- Raw material: HMWPE
- Specific Gravity: 0,98
- Melting Point: 150ºC / 265ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/ 100m lbs/ 100ft kgf lbf kN 24 1 3 360 36 24,2 38.749 85.426 380 30 1 1/4 3 3/4 425 42,5 28,6 45.887 101.163 450 32 1 1/3 4 474 47,4 31,9 53.025 116.899 520 34 1 11/32 4 1/4 544 54,4 36,6 61.183 134.884 600 36 1 1/2 4 1/2 637 63,7 42,8 69.341 152.868 680 38 1 4/7 4 3/4 706 70,6 47,4 78.518 173.101 770 40 1 5/8 5 765 76,5 51,4 88.716 195.581 870 44 1 3/4 5 1/2 963 96,3 64,7 106.051 233.798 1.040 48 2 6 1.100 110 73,9 128.485 283.256 1.260 52 2 1/8 6 1/4 1.380 138 92,7 148.879 328.217 1.460 56 2 1/4 7 1.575 157,5 105,8 173.352 383.170 1.700 More diameters available by demand.
- Mooring lines
- Anchor line
- Winch lines
- Towing and Tug ropes
- Raw material: HMWPE
- Specific Gravity: 0,98
- Melting Point: 150ºC / 265ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/ 100m | lbs/ 100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 360 | 36 | 24,2 | 38.749 | 85.426 | 380 |
| 30 | 1 1/4 | 3 3/4 | 425 | 42,5 | 28,6 | 45.887 | 101.163 | 450 |
| 32 | 1 1/3 | 4 | 474 | 47,4 | 31,9 | 53.025 | 116.899 | 520 |
| 34 | 1 11/32 | 4 1/4 | 544 | 54,4 | 36,6 | 61.183 | 134.884 | 600 |
| 36 | 1 1/2 | 4 1/2 | 637 | 63,7 | 42,8 | 69.341 | 152.868 | 680 |
| 38 | 1 4/7 | 4 3/4 | 706 | 70,6 | 47,4 | 78.518 | 173.101 | 770 |
| 40 | 1 5/8 | 5 | 765 | 76,5 | 51,4 | 88.716 | 195.581 | 870 |
| 44 | 1 3/4 | 5 1/2 | 963 | 96,3 | 64,7 | 106.051 | 233.798 | 1.040 |
| 48 | 2 | 6 | 1.100 | 110 | 73,9 | 128.485 | 283.256 | 1.260 |
| 52 | 2 1/8 | 6 1/4 | 1.380 | 138 | 92,7 | 148.879 | 328.217 | 1.460 |
| 56 | 2 1/4 | 7 | 1.575 | 157,5 | 105,8 | 173.352 | 383.170 | 1.700 |
More diameters available by demand.
