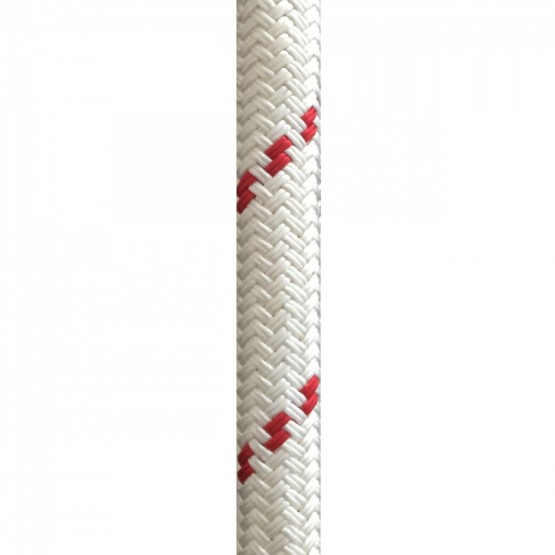

D-Tech Winchline Plus - With Polyester Jacket
-
- 1/7 of the steel wire weight
- Longer life time compared to steel wire
- Low operational costs
- Low elongation
- Non-kinking and non-rotating
- Easy and safer handling
-
- Raw material: HMWPE / Polyester
- Specific Gravity: 1,06 (
- Melting Point: 150ºC / 265ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/ 100m lbs/ 100ft kgf lbf kN 22 7/8 2 3/4 290 29 19,5 28 042 61 822 275 24 1 3 340 34 22,8 33 141 73 062 325 26 1 1/32 3 1/4 420 42 28,2 48 029 105 884 471 28 1 1/8 3 1/2 483 48,3 32,5 55 983 123 418 549 30 1 1/4 3 3/4 551 55,1 37,0 64 956 143 201 637 32 1 5/16 4 700 70 47,0 75 051 165 457 736 34 1 11/32 4 1/4 754 75,4 50,7 84 025 185 240 824 36 1 1/2 4 1/2 808 80,8 54,3 92 998 205 023 912 38 1 9/16 4 3/4 893 89,3 60,0 101 972 224 806 1000 40 1 5/8 5 1000 100 67,2 116 248 256 279 1140 42 1 5/7 5 1/4 1150 115 77,3 128 485 283 256 1260 44 1 3/4 5 1/2 1250 125 84,0 140 721 310 232 1380 46 1 3/4 5 1/2 1350 135 90,7 152 448 336 085 1495 48 2 6 1480 148 99,4 164 175 361 938 1610 52 2 1/8 6 1/4 1700 170 114,2 195 786 431 628 1920 56 2 1/4 7 1900 190 127,7 230 457 508 062 2260 More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
We reserve the right to change them without prior notice. Tolerance in weights: ± 5%.
Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
- Mooring lines
- Anchor line
- Winch lines
- Towing and Tug ropes
- Raw material: HMWPE / Polyester
- Specific Gravity: 1,06 (
- Melting Point: 150ºC / 265ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/ 100m | lbs/ 100ft | kgf | lbf | kN |
| 22 | 7/8 | 2 3/4 | 290 | 29 | 19,5 | 28 042 | 61 822 | 275 |
| 24 | 1 | 3 | 340 | 34 | 22,8 | 33 141 | 73 062 | 325 |
| 26 | 1 1/32 | 3 1/4 | 420 | 42 | 28,2 | 48 029 | 105 884 | 471 |
| 28 | 1 1/8 | 3 1/2 | 483 | 48,3 | 32,5 | 55 983 | 123 418 | 549 |
| 30 | 1 1/4 | 3 3/4 | 551 | 55,1 | 37,0 | 64 956 | 143 201 | 637 |
| 32 | 1 5/16 | 4 | 700 | 70 | 47,0 | 75 051 | 165 457 | 736 |
| 34 | 1 11/32 | 4 1/4 | 754 | 75,4 | 50,7 | 84 025 | 185 240 | 824 |
| 36 | 1 1/2 | 4 1/2 | 808 | 80,8 | 54,3 | 92 998 | 205 023 | 912 |
| 38 | 1 9/16 | 4 3/4 | 893 | 89,3 | 60,0 | 101 972 | 224 806 | 1000 |
| 40 | 1 5/8 | 5 | 1000 | 100 | 67,2 | 116 248 | 256 279 | 1140 |
| 42 | 1 5/7 | 5 1/4 | 1150 | 115 | 77,3 | 128 485 | 283 256 | 1260 |
| 44 | 1 3/4 | 5 1/2 | 1250 | 125 | 84,0 | 140 721 | 310 232 | 1380 |
| 46 | 1 3/4 | 5 1/2 | 1350 | 135 | 90,7 | 152 448 | 336 085 | 1495 |
| 48 | 2 | 6 | 1480 | 148 | 99,4 | 164 175 | 361 938 | 1610 |
| 52 | 2 1/8 | 6 1/4 | 1700 | 170 | 114,2 | 195 786 | 431 628 | 1920 |
| 56 | 2 1/4 | 7 | 1900 | 190 | 127,7 | 230 457 | 508 062 | 2260 |
More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
We reserve the right to change them without prior notice. Tolerance in weights: ± 5%.
Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
