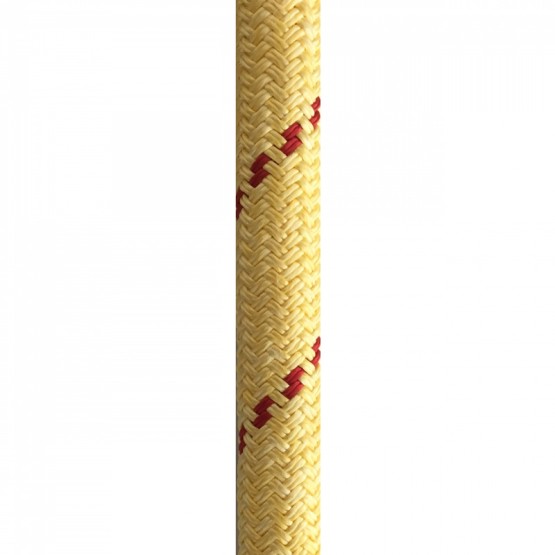

D-Tech Winchline Plus - With HMWPE Jacket
-
- 1/7 of the steel wire weight
- Longer life time compared to steel wire
- Low operational costs
- Low elongation
- Non-kinking and non-rotating
- Easy and safer handling
-
- Raw material: HMWPE
- Specific Gravity: 0,98
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/ 100m lbs/ 100ft kgf lbf kN 22 7/8 2 3/4 260 26 17,5 28 042 61 822 275 24 1 3 310 31 20,8 33 141 73 062 325 26 1 1/32 3 1/4 380 38 25,5 48 029 105 884 471 28 1 1/8 3 1/2 435 43,5 29,2 55 983 123 418 549 30 1 1/4 3 3/4 500 50 33,6 64 956 143 201 637 32 1 5/16 4 640 64 43,0 75 051 165 457 736 34 1 11/32 4 1/4 680 68 45,7 84 025 185 240 824 36 1 1/2 4 1/2 720 72 48,4 92 998 205 023 912 38 1 9/16 4 3/4 800 80 53,8 101 972 224 806 1000 40 1 5/8 5 900 90 60,5 116 248 256 279 1140 42 1 5/7 5 1/4 1000 100 67,2 128 485 283 256 1260 44 1 3/4 5 1/2 1110 111 74,6 140 721 310 232 1380 46 1 3/4 5 1/2 1205 120,5 81,0 152 448 336 085 1495 48 2 6 1320 132 88,7 164 175 361 938 1610 52 2 1/8 6 1/4 1500 150 100,8 195 786 431 628 1920 56 2 1/4 7 1765 176,5 118,6 230 457 508 062 2260 More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
We reserve the right to change them without prior notice. Tolerance in weights: ± 5%
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
- Mooring lines
- Anchor lines
- Winch lines
- Towing and Tug ropes
- Raw material: HMWPE
- Specific Gravity: 0,98
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
|---|---|---|---|---|---|---|---|---|
| mm | Inches | Inches | Ktex | Kg/ 100m | lbs/ 100ft | kgf | lbf | kN |
| 22 | 7/8 | 2 3/4 | 260 | 26 | 17,5 | 28 042 | 61 822 | 275 |
| 24 | 1 | 3 | 310 | 31 | 20,8 | 33 141 | 73 062 | 325 |
| 26 | 1 1/32 | 3 1/4 | 380 | 38 | 25,5 | 48 029 | 105 884 | 471 |
| 28 | 1 1/8 | 3 1/2 | 435 | 43,5 | 29,2 | 55 983 | 123 418 | 549 |
| 30 | 1 1/4 | 3 3/4 | 500 | 50 | 33,6 | 64 956 | 143 201 | 637 |
| 32 | 1 5/16 | 4 | 640 | 64 | 43,0 | 75 051 | 165 457 | 736 |
| 34 | 1 11/32 | 4 1/4 | 680 | 68 | 45,7 | 84 025 | 185 240 | 824 |
| 36 | 1 1/2 | 4 1/2 | 720 | 72 | 48,4 | 92 998 | 205 023 | 912 |
| 38 | 1 9/16 | 4 3/4 | 800 | 80 | 53,8 | 101 972 | 224 806 | 1000 |
| 40 | 1 5/8 | 5 | 900 | 90 | 60,5 | 116 248 | 256 279 | 1140 |
| 42 | 1 5/7 | 5 1/4 | 1000 | 100 | 67,2 | 128 485 | 283 256 | 1260 |
| 44 | 1 3/4 | 5 1/2 | 1110 | 111 | 74,6 | 140 721 | 310 232 | 1380 |
| 46 | 1 3/4 | 5 1/2 | 1205 | 120,5 | 81,0 | 152 448 | 336 085 | 1495 |
| 48 | 2 | 6 | 1320 | 132 | 88,7 | 164 175 | 361 938 | 1610 |
| 52 | 2 1/8 | 6 1/4 | 1500 | 150 | 100,8 | 195 786 | 431 628 | 1920 |
| 56 | 2 1/4 | 7 | 1765 | 176,5 | 118,6 | 230 457 | 508 062 | 2260 |
More diameters available by demand.
The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
We reserve the right to change them without prior notice. Tolerance in weights: ± 5%
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
