Combo 8 strands

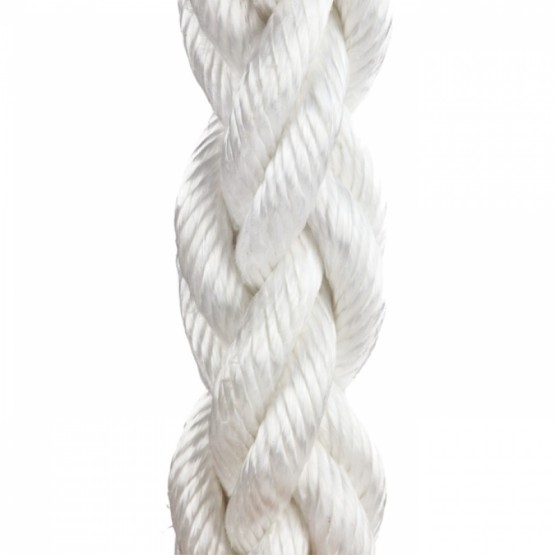

This blended rope combines the best properties of Polyester fiber with our Movline bi-polymer fiber in a unique 8 strands plaited construction where every single Movline yarn is covered with Polyester, giving it an exceptional wearing resistance and strength with significantly less handling weight than regular polyester ropes.
-
- Exceptional abrasion and wear resistance
- 18-20 % lighter than an all polyester constructions
- Less water absorption than an all polyester ropes
- Smooth, non kinking and non rotating
-
-
- Raw material: Mixed Polyolefin / Polyester
- Specific Gravity: 1,16
- Melting Point: 165ºC / 265ºC
- Elongation at % of BS:
25% …. 3,2%
50% …. 6,7%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 319 31,9 21,4 10 911 24 054 107 26 1 1/32 3 1/4 374 37,4 25,1 12 747 28 101 125 28 1 1/8 3 1/2 434 43,4 29,2 14 684 32 372 144 30 1 1/4 3 3/4 498 49,8 33,5 16 723 36 868 164 32 1 5/16 4 566 56,6 38 18 967 41 814 186 36 1 1/2 4 1/2 717 71,7 48,2 23 759 52 380 233 40 1 5/8 5 885 88,5 59,5 29 062 64 070 285 44 1 3/4 5 1/2 1 070 107 71,9 34 874 76 884 342 48 2 6 1 270 127 85,3 41 197 90 822 404 52 2 1/8 6 1/2 1 500 150 100,8 48 029 105 884 471 56 2 1/4 7 1 730 173 116,2 55 371 122 070 543 60 2 1/2 7 1/2 1 990 199 133,7 63 223 139 380 620 64 2 5/8 8 2 270 227 152,5 71 482 157 589 701 68 2 3/4 8 1/2 2 560 256 172 80 150 176 698 786 72 2 7/8 9 2 875 287,5 193,2 88 206 194 457 865 80 3 1/4 10 3 545 354,5 238,2 108 600 239 418 1 065 88 3 5/8 11 4 275 427,5 287,3 131 034 288 876 1 285 96 4 12 5 095 509,5 342,4 156 017 343 953 1 530 104 4 1/4 13 6 000 600 403,2 183 550 404 651 1 800 112 4 5/8 14 6 900 690 463,7 211 082 465 348 2 070 120 5 15 7 960 796 534,9 243 509 536 837 2 388 128 5 1/4 16 9 060 906 608,8 277 160 611 023 2 718 136 5 1/2 17 10 200 1020 685,4 312 034 687 906 3 060
In accordance to ISO 14686-2004
- Mooring lines
- Anchor lines
- Tug boat H-Bitt working lines
- Barge working lines
-
- Raw material: Mixed Polyolefin / Polyester
- Specific Gravity: 1,16
- Melting Point: 165ºC / 265ºC
- Elongation at % of BS:
25% …. 3,2%
50% …. 6,7%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 319 | 31,9 | 21,4 | 10 911 | 24 054 | 107 |
| 26 | 1 1/32 | 3 1/4 | 374 | 37,4 | 25,1 | 12 747 | 28 101 | 125 |
| 28 | 1 1/8 | 3 1/2 | 434 | 43,4 | 29,2 | 14 684 | 32 372 | 144 |
| 30 | 1 1/4 | 3 3/4 | 498 | 49,8 | 33,5 | 16 723 | 36 868 | 164 |
| 32 | 1 5/16 | 4 | 566 | 56,6 | 38 | 18 967 | 41 814 | 186 |
| 36 | 1 1/2 | 4 1/2 | 717 | 71,7 | 48,2 | 23 759 | 52 380 | 233 |
| 40 | 1 5/8 | 5 | 885 | 88,5 | 59,5 | 29 062 | 64 070 | 285 |
| 44 | 1 3/4 | 5 1/2 | 1 070 | 107 | 71,9 | 34 874 | 76 884 | 342 |
| 48 | 2 | 6 | 1 270 | 127 | 85,3 | 41 197 | 90 822 | 404 |
| 52 | 2 1/8 | 6 1/2 | 1 500 | 150 | 100,8 | 48 029 | 105 884 | 471 |
| 56 | 2 1/4 | 7 | 1 730 | 173 | 116,2 | 55 371 | 122 070 | 543 |
| 60 | 2 1/2 | 7 1/2 | 1 990 | 199 | 133,7 | 63 223 | 139 380 | 620 |
| 64 | 2 5/8 | 8 | 2 270 | 227 | 152,5 | 71 482 | 157 589 | 701 |
| 68 | 2 3/4 | 8 1/2 | 2 560 | 256 | 172 | 80 150 | 176 698 | 786 |
| 72 | 2 7/8 | 9 | 2 875 | 287,5 | 193,2 | 88 206 | 194 457 | 865 |
| 80 | 3 1/4 | 10 | 3 545 | 354,5 | 238,2 | 108 600 | 239 418 | 1 065 |
| 88 | 3 5/8 | 11 | 4 275 | 427,5 | 287,3 | 131 034 | 288 876 | 1 285 |
| 96 | 4 | 12 | 5 095 | 509,5 | 342,4 | 156 017 | 343 953 | 1 530 |
| 104 | 4 1/4 | 13 | 6 000 | 600 | 403,2 | 183 550 | 404 651 | 1 800 |
| 112 | 4 5/8 | 14 | 6 900 | 690 | 463,7 | 211 082 | 465 348 | 2 070 |
| 120 | 5 | 15 | 7 960 | 796 | 534,9 | 243 509 | 536 837 | 2 388 |
| 128 | 5 1/4 | 16 | 9 060 | 906 | 608,8 | 277 160 | 611 023 | 2 718 |
| 136 | 5 1/2 | 17 | 10 200 | 1020 | 685,4 | 312 034 | 687 906 | 3 060 |
In accordance to ISO 14686-2004
