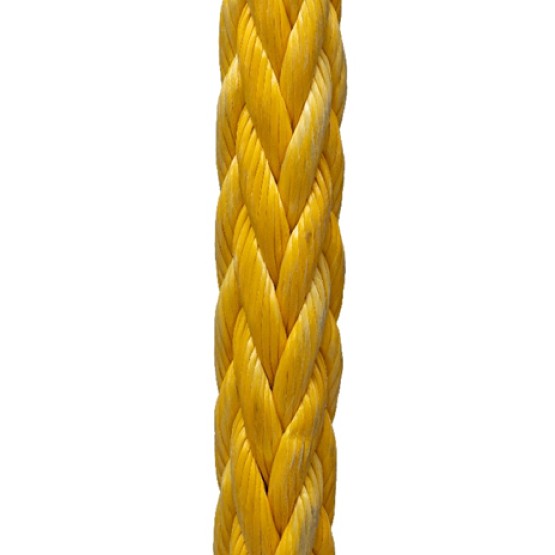

H-Force 12 Strands
Made from HMWPE fibers and protected by a self-unique Pro-Tech impregnation that improves its abrasion resistance. Using a torque-free 12 strands braided construction, H-Force is stronger than steel wire of the same weight and is a cost-saving replacement for wire rope and other conventional HMWPE ropes in several applications.
-
- 1/7 of the steel wire weight
- Longer life time compared to steel wire
- Low operational costs
- Low elongation
- Flexible, non kinking and non-rotating
- Easy and safer handling
- Easy to splice
-
- Raw material: HMWPE
- Specific Gravity: 0,98
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
Diameter SizeCirc. Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 6 1/4 3/4 23 2,3 1,5 4.079 8.992 40 8 1/3 1 40 4 2,7 7.036 15.512 69 10 3/8 1 1/8 61 6,1 4,1 10.707 23.605 105 12 1/2 1 1/2 87 8,7 5,8 15.296 33.721 150 14 4/7 1 ¾ 117 11,7 7,9 20.394 44.961 200 16 5/8 2 152 15,2 10,2 26.003 57.326 255 18 3/4 2 1/4 190 19 12,8 32.121 70.814 315 20 13/16 2 1/2 233 23,3 15,7 38.749 85.426 380 22 7/8 2 3/4 280 28 18,8 45.887 101.163 450 24 1 3 331 33,1 22,2 53.025 116.899 520 26 1 1/32 3 1/4 386 38,6 25,9 61.183 134.884 600 28 1 1/8 3 1/2 445 44,5 29,9 69.851 153.992 685 30 1 1/4 3 3/4 508 50,8 34,1 79.028 174.225 775 32 1 5/16 4 575 57,5 38,6 88.206 194.457 865 34 1 11/32 4 1/4 646 64,6 43,4 98.403 216.938 965 36 1 1/2 4 1/2 722 72,2 48,5 109.110 240.542 1.070 38 1 9/16 4 3/4 801 80,1 53,6 119.817 264.147 1.175 40 1 5/8 5 884 88,4 59,4 131.034 288.876 1.285 44 1 3/4 5 1/2 1.062 106,2 71,4 155.507 342.829 1.525 48 2 6 1.255 125,5 84,3 181.000 300.031 1.775 52 2 1/8 6 1/2 1.464 146,4 98,4 208.533 459.728 2.045 56 2 1/4 7 1.688 168,8 113,4 237.595 523.798 2.330 60 2 1/2 7 1/2 1.928 192,8 129,6 268.696 592.364 2.635 64 2 5/8 8 2.183 218,3 146,7 300.817 663.178 2.950 68 2 3/4 8 1/2 2.453 245,3 164,8 334.978 738.488 3.285 72 2 7/8 9 2.738 273,8 184 370.668 817.170 3.635 More diameters available by demand.
In accordance to ISO 10325:2018.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
- Mooring lines
- Anchor line
- Winch lines
- Towing and Tug ropes
- Raw material: HMWPE
- Specific Gravity: 0,98
- Melting Point: 150ºC
- Elongation at % of BS:
25% …. 0,9%
50% …. 1,6%
| Diameter SizeCirc. | Weight | Breaking Load | ||||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 6 | 1/4 | 3/4 | 23 | 2,3 | 1,5 | 4.079 | 8.992 | 40 |
| 8 | 1/3 | 1 | 40 | 4 | 2,7 | 7.036 | 15.512 | 69 |
| 10 | 3/8 | 1 1/8 | 61 | 6,1 | 4,1 | 10.707 | 23.605 | 105 |
| 12 | 1/2 | 1 1/2 | 87 | 8,7 | 5,8 | 15.296 | 33.721 | 150 |
| 14 | 4/7 | 1 ¾ | 117 | 11,7 | 7,9 | 20.394 | 44.961 | 200 |
| 16 | 5/8 | 2 | 152 | 15,2 | 10,2 | 26.003 | 57.326 | 255 |
| 18 | 3/4 | 2 1/4 | 190 | 19 | 12,8 | 32.121 | 70.814 | 315 |
| 20 | 13/16 | 2 1/2 | 233 | 23,3 | 15,7 | 38.749 | 85.426 | 380 |
| 22 | 7/8 | 2 3/4 | 280 | 28 | 18,8 | 45.887 | 101.163 | 450 |
| 24 | 1 | 3 | 331 | 33,1 | 22,2 | 53.025 | 116.899 | 520 |
| 26 | 1 1/32 | 3 1/4 | 386 | 38,6 | 25,9 | 61.183 | 134.884 | 600 |
| 28 | 1 1/8 | 3 1/2 | 445 | 44,5 | 29,9 | 69.851 | 153.992 | 685 |
| 30 | 1 1/4 | 3 3/4 | 508 | 50,8 | 34,1 | 79.028 | 174.225 | 775 |
| 32 | 1 5/16 | 4 | 575 | 57,5 | 38,6 | 88.206 | 194.457 | 865 |
| 34 | 1 11/32 | 4 1/4 | 646 | 64,6 | 43,4 | 98.403 | 216.938 | 965 |
| 36 | 1 1/2 | 4 1/2 | 722 | 72,2 | 48,5 | 109.110 | 240.542 | 1.070 |
| 38 | 1 9/16 | 4 3/4 | 801 | 80,1 | 53,6 | 119.817 | 264.147 | 1.175 |
| 40 | 1 5/8 | 5 | 884 | 88,4 | 59,4 | 131.034 | 288.876 | 1.285 |
| 44 | 1 3/4 | 5 1/2 | 1.062 | 106,2 | 71,4 | 155.507 | 342.829 | 1.525 |
| 48 | 2 | 6 | 1.255 | 125,5 | 84,3 | 181.000 | 300.031 | 1.775 |
| 52 | 2 1/8 | 6 1/2 | 1.464 | 146,4 | 98,4 | 208.533 | 459.728 | 2.045 |
| 56 | 2 1/4 | 7 | 1.688 | 168,8 | 113,4 | 237.595 | 523.798 | 2.330 |
| 60 | 2 1/2 | 7 1/2 | 1.928 | 192,8 | 129,6 | 268.696 | 592.364 | 2.635 |
| 64 | 2 5/8 | 8 | 2.183 | 218,3 | 146,7 | 300.817 | 663.178 | 2.950 |
| 68 | 2 3/4 | 8 1/2 | 2.453 | 245,3 | 164,8 | 334.978 | 738.488 | 3.285 |
| 72 | 2 7/8 | 9 | 2.738 | 273,8 | 184 | 370.668 | 817.170 | 3.635 |
More diameters available by demand.
In accordance to ISO 10325:2018.
Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
