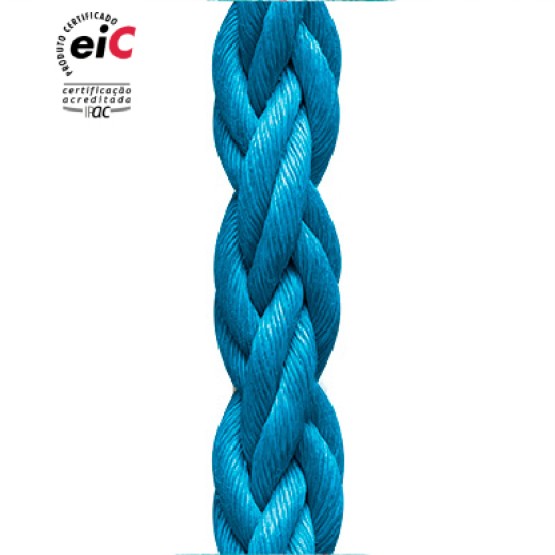

Deckline 8 Strands
Deckline ropes are a special economic blend that explores the abrasion resistance and tenacity of our Movline Plus bi-polymer. This cost effective floating rope has good wear and abrasion resistance given by the outer Movline Plus cover and high breaking resistance when compared to other tradition PP ropes.
-
Certified by EIC, for aquaculture applications, to NS 9415 standard and in compliance with NYTEK23-regulation.
- Cost effective compared to traditional PP ropes
- High abrasion resistance
- Good breaking strength
- Excellent UV resistance
- Non kinking and non-rotating
_2x.jpg?t=1755853089 "deckline_(1).jpg")
-
-
- Raw Material: Mixed Polyolefin
- Specific Gravity: 0,93 (floats)
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 5,5%
Diameter Size
Circ.Weight Breaking Load mm Inches Inches Ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 261 26,1 17,5 9.014 19.873 88,4 26 1 1/32 3 1/4 306 30,6 20,6 10.488 23.121 102,9 28 1 1/8 3 1/2 355 35,5 23,9 12.048 26.561 118,2 30 1 1/4 3 3/4 408 40,8 27,4 13.695 30.191 134,3 32 1 5/16 4 464 46,4 31,2 15.515 34.204 152,2 36 1 1/2 4 1/2 587 58,7 39,4 19.415 42.803 190,4 40 1 5/8 5 725 72,5 48,7 23.749 52.357 232,9 44 1 3/4 5 1/2 877 87,7 58,9 28.343 62.485 278,0 48 2 6 1040 104,0 69,9 33.370 73.568 327,3 52 2 1/8 6 1/2 1220 122,0 82,0 38.831 85.606 380,8 56 2 1/4 7 1420 142,0 95,4 44.552 98.218 436,9 60 2 1/2 7 1/2 1630 163,0 109,5 50.532 111.403 495,6 64 2 5/8 8 1860 186,0 125,0 56.946 125.543 558,5 68 2 3/4 8 1/2 2100 210,0 141,1 63.880 140.830 626,5 72 2 7/8 9 2350 235,0 157,9 71.074 156.690 697,0 80 3 1/4 10 2900 290,0 194,9 86.243 190.130 845,8 88 3 5/8 11 3510 351,0 235,9 103.145 227.391 1011,5 96 4 12 4170 417,0 280,2 121.347 267.519 1190,0 104 4 1/4 13 4900 490,0 329,3 140.415 309.558 1377,0 112 4 5/8 14 5680 568,0 381,7 162.951 359.240 1598,0 120 5 15 6520 652,0 438,1 184.620 407.011 1810,5 128 5 1/4 16 7420 742,0 498,6 209.756 462.426 2057,0 136 5 1/2 17 8380 838,0 563,1 235.759 519.751 2312,0
More diameters available by demand.
- Mooring lines
- Tug and Towing lines
-
- Raw Material: Mixed Polyolefin
- Specific Gravity: 0,93 (floats)
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 2,8%
50% …. 5,5%
| Diameter | Size Circ. | Weight | Breaking Load | |||||
| mm | Inches | Inches | Ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 24 | 1 | 3 | 261 | 26,1 | 17,5 | 9.014 | 19.873 | 88,4 |
| 26 | 1 1/32 | 3 1/4 | 306 | 30,6 | 20,6 | 10.488 | 23.121 | 102,9 |
| 28 | 1 1/8 | 3 1/2 | 355 | 35,5 | 23,9 | 12.048 | 26.561 | 118,2 |
| 30 | 1 1/4 | 3 3/4 | 408 | 40,8 | 27,4 | 13.695 | 30.191 | 134,3 |
| 32 | 1 5/16 | 4 | 464 | 46,4 | 31,2 | 15.515 | 34.204 | 152,2 |
| 36 | 1 1/2 | 4 1/2 | 587 | 58,7 | 39,4 | 19.415 | 42.803 | 190,4 |
| 40 | 1 5/8 | 5 | 725 | 72,5 | 48,7 | 23.749 | 52.357 | 232,9 |
| 44 | 1 3/4 | 5 1/2 | 877 | 87,7 | 58,9 | 28.343 | 62.485 | 278,0 |
| 48 | 2 | 6 | 1040 | 104,0 | 69,9 | 33.370 | 73.568 | 327,3 |
| 52 | 2 1/8 | 6 1/2 | 1220 | 122,0 | 82,0 | 38.831 | 85.606 | 380,8 |
| 56 | 2 1/4 | 7 | 1420 | 142,0 | 95,4 | 44.552 | 98.218 | 436,9 |
| 60 | 2 1/2 | 7 1/2 | 1630 | 163,0 | 109,5 | 50.532 | 111.403 | 495,6 |
| 64 | 2 5/8 | 8 | 1860 | 186,0 | 125,0 | 56.946 | 125.543 | 558,5 |
| 68 | 2 3/4 | 8 1/2 | 2100 | 210,0 | 141,1 | 63.880 | 140.830 | 626,5 |
| 72 | 2 7/8 | 9 | 2350 | 235,0 | 157,9 | 71.074 | 156.690 | 697,0 |
| 80 | 3 1/4 | 10 | 2900 | 290,0 | 194,9 | 86.243 | 190.130 | 845,8 |
| 88 | 3 5/8 | 11 | 3510 | 351,0 | 235,9 | 103.145 | 227.391 | 1011,5 |
| 96 | 4 | 12 | 4170 | 417,0 | 280,2 | 121.347 | 267.519 | 1190,0 |
| 104 | 4 1/4 | 13 | 4900 | 490,0 | 329,3 | 140.415 | 309.558 | 1377,0 |
| 112 | 4 5/8 | 14 | 5680 | 568,0 | 381,7 | 162.951 | 359.240 | 1598,0 |
| 120 | 5 | 15 | 6520 | 652,0 | 438,1 | 184.620 | 407.011 | 1810,5 |
| 128 | 5 1/4 | 16 | 7420 | 742,0 | 498,6 | 209.756 | 462.426 | 2057,0 |
| 136 | 5 1/2 | 17 | 8380 | 838,0 | 563,1 | 235.759 | 519.751 | 2312,0 |
More diameters available by demand.
