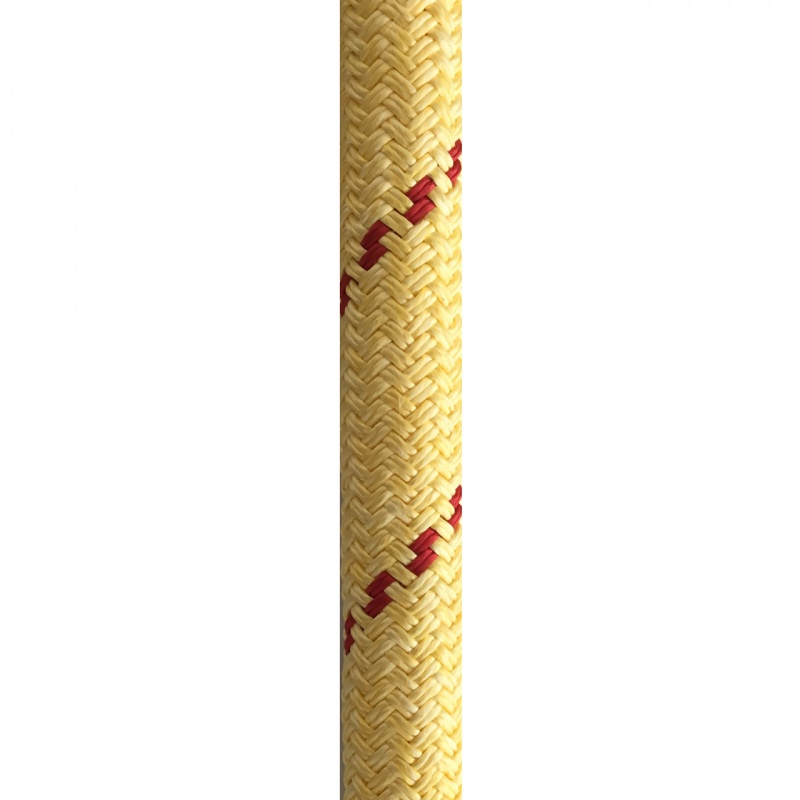

D-Tech Winchline Plus - With HMWPE jacket

D-Tech Winchline Plus - With HMWPE jacket

Made from HMWPE fibers and coated with a Pro-Tech self-unique impregnation that improves its abrasion resistance and fatigue properties, Cotesi D-Tech Winchline Plus must be considered when high breaking strengths are required. Stronger than steel wire ropes of same weight, it has proven to be a cost-saving replacement in several applications. Double braided optimized construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in HMWPE.

Also available with PE jacket.
  • Advantages
    • 1/7 of the steel wire weight
    • Longer life time compared to steel wire
    • Low operational costs
    • Low elongation
    • Non kinking and non-rotating
    • Easy and safer handling

  • Applications
    • Mooring lines
    • Anchor lines
    • Winch lines
    • Towing and Tug ropes
  • Technical Informations
    • Raw Material: HMWPE
    • Specific Gravity: 0,98 (floats)
    • Melting Point: 150ºC / 265ºC
    • Elongation at % of BS:
    25% …. 0,9%
    50% …. 1,6%

    Diameter

    Size
    Circ.

    Weight

    Breaking Load

    mm

    Inches

    Inches

    Ktex

    Kg/100m

    lbs/100ft

    kgf

    lbf

    kN

    22

    7/8

    2 3/4

    260

    26

    17,5

    28 042

    61 822

    275

    24

    1

    3

    310

    31

    20,8

    33 141

    73 062

    325

    26

    1 1/32

    3 1/4

    380

    38

    25,5

    48 029

    105 884

    471

    28

    1 1/8

    3 1/2

    435

    43,5

    29,2

    55 983

    123 418

    549

    30

    1 1/4

    3 3/4

    500

    50

    33,6

    64 956

    143 201

    637

    32

    1 5/16

    4

    640

    64

    43

    75 051

    165 457

    736

    34

    1 11/32

    4 1/4

    680

    68

    45,7

    84 025

    185 240

    824

    36

    1 1/2

    4 1/2

    720

    72

    48,4

    92 998

    205 023

    912

    38

    1 9/16

    4 3/4

    800

    80

    53,8

    101 972

    224 806

    1 000

    40

    1 5/8

    5

    900

    90

    60,5

    116 248

    256 279

    1 140

    42

    1 11/16

    5 5/16

    1 000

    100

    67,2

    128 485

    283 256

    1 260

    44

    1 3/4

    5 1/2

    1 110

    111

    74,6

    140 721

    310 232

    1 380

    46

    1 3/4

    5 3/4

    1 205

    120,5

    81

    152 448

    336 085

    1 495

    48

    2

    6

    1 320

    132

    88,7

    164 175

    361 938

    1 610

    52

    2 1/8

    6 1/2

    1 500

    150

    100,8

    195 786

    431 628

    1 920

    56

    2 1/4

    7

    1 765

    176,5

    118,6

    230 457

    508 062

    2 260

    *Other diameters available upon request.

    The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
    We reserve the right to change them without prior notice. Tolerance in weights: ± 5%.
    Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
