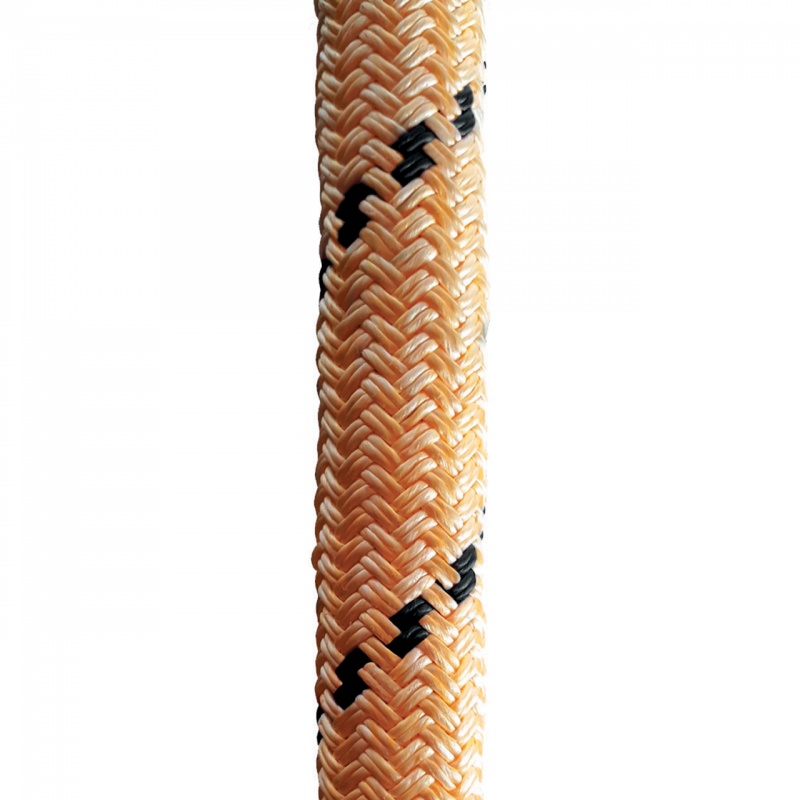

D-Tech Winchline - With HMWPE Jacket

D-Tech Winchline - With HMWPE Jacket

Made from HMWPE fibers and coated with a Pro-Tech self-unique impregnation that improves abrasion, heat resistance and fatigue properties. Cotesi D-Tech Winchline must be considered when high breaking strengths are required. Stronger than steel wire ropes of same weight, it has proven to be a cost-saving replacement in several applications. Double braided construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in HMWPE.

Also available with PE jacket.
  • Advantages
    • 1/7 of the steel wire weight
    • Longer life time compared to steel wire
    • Low operational costs
    • Low elongation
    • Non kinking and non-rotating
  • Applications
    • Mooring lines
    • Anchor line
    • Winch lines
    • Towing and Tug ropes
  • Technical Informations
    • Raw material: HMWPE
    • Specific Gravity: 0,98 (floats)
    • Melting Point: 150C / 265C
    • Elongation at % of BS:
    25% . 0,9%
    50% . 1,6%


    Diameter

    Size
    Circ.

    Weight

    Breaking Load

    mm

    Inches

    Inches

    Ktex

    Kg/100m

    lbs/100ft

    kgf

    lbf

    kN

    16

    5/8

    2

    138

    13,8

    9,3

    14 990

    33 046

    147

    18

    3/4

    2 1/4

    190

    19

    12,8

    20 394

    44 961

    200

    20

    13/16

    2 1/2

    230

    23

    15,5

    26 513

    58 450

    260

    22

    7/8

    2 3/4

    274

    27,4

    18,4

    31 611

    69 690

    310

    24

    1

    3

    360

    36

    24,2

    38 749

    85 426

    380

    30

    1 1/4

    3 3/4

    425

    42,5

    28,6

    45 887

    101 163

    450

    32

    1 5/16

    4

    474

    47,4

    31,9

    53 025

    116 899

    520

    34

    1 11/32

    4 1/4

    544

    54,4

    36,6

    61 183

    134 884

    600

    36

    1 1/2

    4 1/2

    637

    63,7

    42,8

    69 341

    152 868

    680

    38

    1 9/16

    4 3/4

    706

    70,6

    47,4

    78 518

    173 101

    770

    40

    1 5/8

    5

    765

    76,5

    51,4

    88 716

    195 581

    870

    42

    1 11/16

    5 5/16

    874

    87,4

    58,7

    97893

    215 814

    960

    44

    1 3/4

    5 1/2

    963

    96,3

    64,7

    106 051

    233 798

    1 040

    46

    1 3/4

    5 3/4

    1 020

    102

    68,5

    118 288

    260 775

    1 160

    48

    2

    6

    1 100

    110

    73,9

    128 485

    283 256

    1 260

    52

    2 1/8

    6 1/2

    1 380

    138

    92,7

    148 879

    328 217

    1 460

    54

    2 1/8

    6 1/2

    1 500

    150

    100,8

    161 116

    355 193

    1 580

    56

    2 1/4

    7

    1 575

    157,5

    105,8

    173 352

    382 170

    1 700

    60

    2 1/2

    7 1/2

    1 650

    165

    110,9

    200 885

    442 868

    1 970

    *Other diameters available upon request.

    The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
    We reserve the right to change them without prior notice. Tolerance in weights: 5%.
    Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
