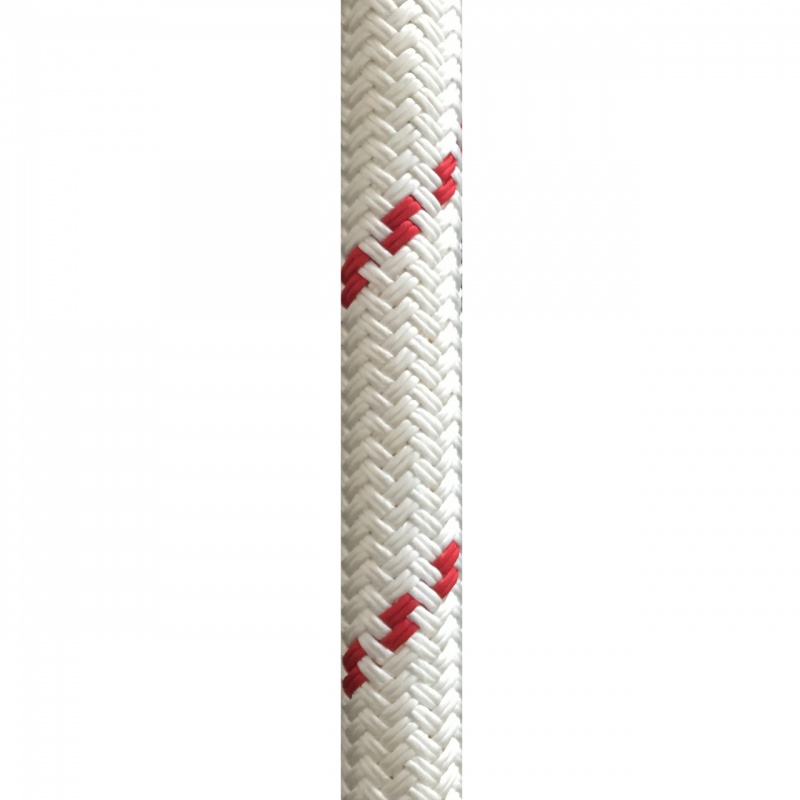

D-Tech Winchline Plus - With Polyester Jacket

D-Tech Winchline Plus - With Polyester Jacket

Made from HMWPE fibers and coated with a Pro-Tech self-unique impregnation that improves its abrasion resistance and fatigue properties, Cotesi D-Tech Winchline Plus must be considered when high breaking strengths are required. Stronger than steel wire ropes of same weight, it has proven to be a cost-saving replacement in several applications. Double braided optimized construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in Polyester. Due to the polyester jacket, this line has non-floating properties.

Also available with PE jacket.
  • Advantages
    • 1/7 of the steel wire weight;
    • Longer life time compared to steel wire
    • Low operational costs
    • Low elongation
    • Non kinking and non-rotating
    • Easy and safer handling
  • Applications
    • Mooring lines
    • Anchor line
    • Winch lines
    • Towing and Tug ropes
  • Technical Informations
    • Raw material: HMWPE / Polyester
    • Specific Gravity: 1,06 (sinks)
    • Melting Point: 150C / 265C
    • Elongation at % of BS:
    25% . 0,9%
    50% . 1,6%

    Diameter

    Size
    Circ.

    Weight

    Breaking Load

    mm

    Inches

    Inches

    Ktex

    Kg/100m

    lbs/100ft

    kgf

    lbf

    kN

    22

      7/8

    2 3/4

    290

    29

    19,5

    28 042

    61 822

    275

    24

    1

    3

    340

    34

    22,8

    33 141

    73 062

    325

    26

    1 1/32

    3 1/4

    420

    42

    28,2

    48 029

    105 884

    471

    28

    1 1/8

    3 1/2

    483

    48,3

    32,5

    55 983

    123 418

    549

    30

    1 1/4

    3 3/4

    551

    55,1

    37

    64 956

    143 201

    637

    32

    1 5/16

    4

    700

    70

    47

    75 051

    165 457

    736

    34

    1 11/32

    4 1/4

    754

    75,4

    50,7

    84 025

    185 240

    824

    36

    1 1/2

    4 1/2

    808

    80,8

    54,3

    92998

    205 023

    912

    38

    1 9/16

    4 3/4

    893

    89,3

    60

    101 972

    224 806

    1 000

    40

    1 5/8

    5

    1 000

    100

    67,2

    116 248

    256 279

    1 140

    42

    1 11/16

    5 5/16

    1 150

    115

    77,3

    128 485

    283 256

    1 260

    44

    1 3/4

    5 1/2

    1 250

    125

    84

    140 721

    310 232

    1 380

    46

    1 3/4

    5 3/4

    1 350

    135

    90,7

    152 448

    336 085

    1 495

    48

    2

    6

    1 480

    148

    99,4

    164 175

    361 938

    1 610

    52

    2 1/8

    6 1/2

    1 700

    170

    114,2

    195 786

    431 628

    1 920

    56

    2 1/4

    7

    1 900

    190

    127,7

    230 457

    508 062

    2 260

    *Other diameters available upon request.

    The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
    We reserve the right to change them without prior notice. Tolerance in weights: 5%.
    Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
